Product Details
Model Number: | WEJT57AN9-ORNP01 | Chip Material: | InGaN | Emitting Color: | Other, white |
Luminous Intensity: | 28000~34000mcd | Luminous Flux(lm): | 90-100lm | Optical Attenuation(%): | 5 |
Power: | Other, 0.5W | Power Dissipation: | 500 | Color Rendering Index(Ra): | 90 |
Color Temperature: | 4000-5000k | Operating Temperature(℃): | -40, 100 | Storage Temperature(℃): | -25, 85 |
Brand Name: | WEJ |
Product Description
5730 smd led with Ra 90 for CE and RoHS led strip light
Products Details:
Parameter | Symbol | Value | Unit |
Power dissipation | Pd | 1100 | mW |
DC Forward Current | If | 350 | mA |
Peak Forward Current(1) | Ifp | 700 | mA |
Reverse Voltage | Vr | 5 | V |
Electro-Static-Discharge(2) (HBM) | ESD | 1000 | V |
Operating Temperature | Topr | -25to+85 | ℃ |
Storage Temperature | Tstg | -40to+100 | ℃ |
Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Parameter | Symbol | Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward voltage | Vf | If=350mA | 3.0 | 3.2 | 3.6 | V |
Luminous flux | Φ | If=350mA | 90 | 100 | --- | lm |
Chromaticity coordinate | X | If=350mA | --- | 0.38 | --- | --- |
Y | If=350mA | --- | 0.37 | --- | --- | |
Color temperature | Tc | If=350mA | 3760 | 4000 | 4250 | K |
Color rendering index | Ra | If=350mA | 90 | --- | --- | % |
Reverse current | Ir | Vr=5V | --- | --- | 10 | μA |
Packaging&Delivery

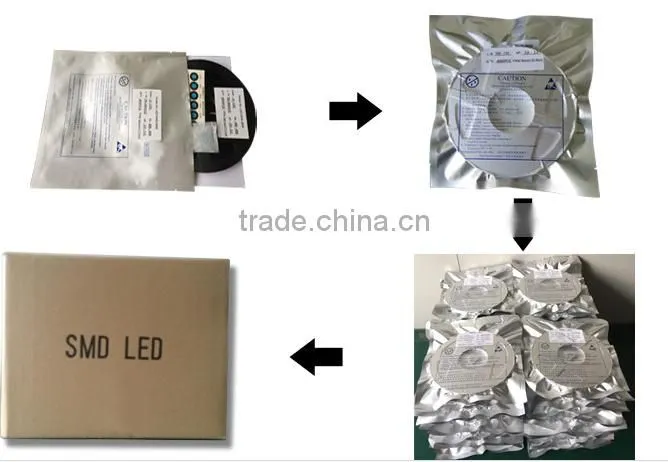

Packaging: about 3K/Roll, Vacuum packaging,standard shipping cartons
Delivery: shipped 7 days after payment
Ways of delivery as follows:
Advantages:
1. CE/ROHS Certification
2.High efficiency and high intensity
3.Super bright SMD, Easy installation
4.Competitive prices,stable quality short lead time
5.Green Products , Energy saving and Low power Consumption
6.No fluorescent flickering, No RF Interference and No buzzing Noise
7.Environment friendly and rich color
Services:
1. 3 years warranty
2. 5 years technical service team
fessional sales team
4.Fast delivery

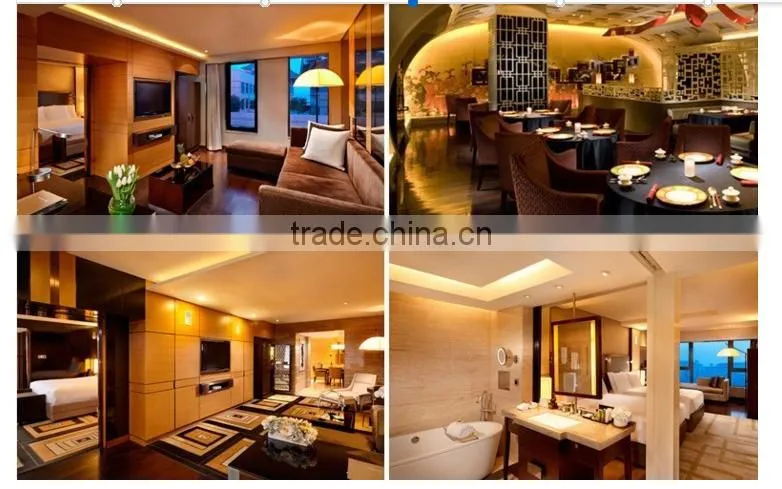

Applications:
Our company informations:
WEJ has introduced the most advanced production line and test equipment from the world-class brand ASM. Furthermore, our WEJ carries out ISO international quality management system strictly.
Besides, WEJ has a highly-efficient and experienced service team, high quality products and best after-sales service are widely recognized and praised by customers all over the world.

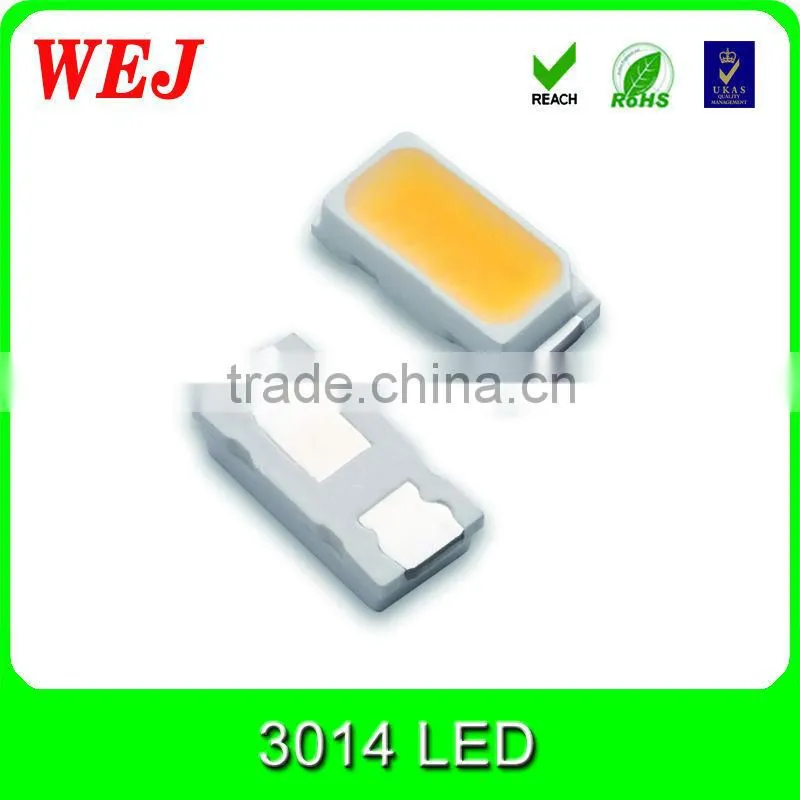

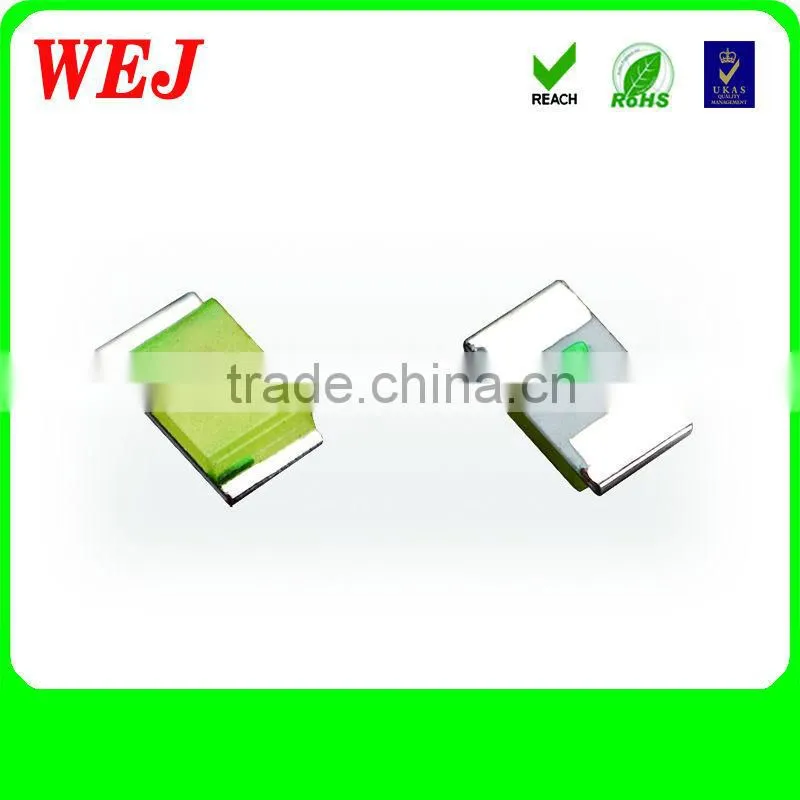

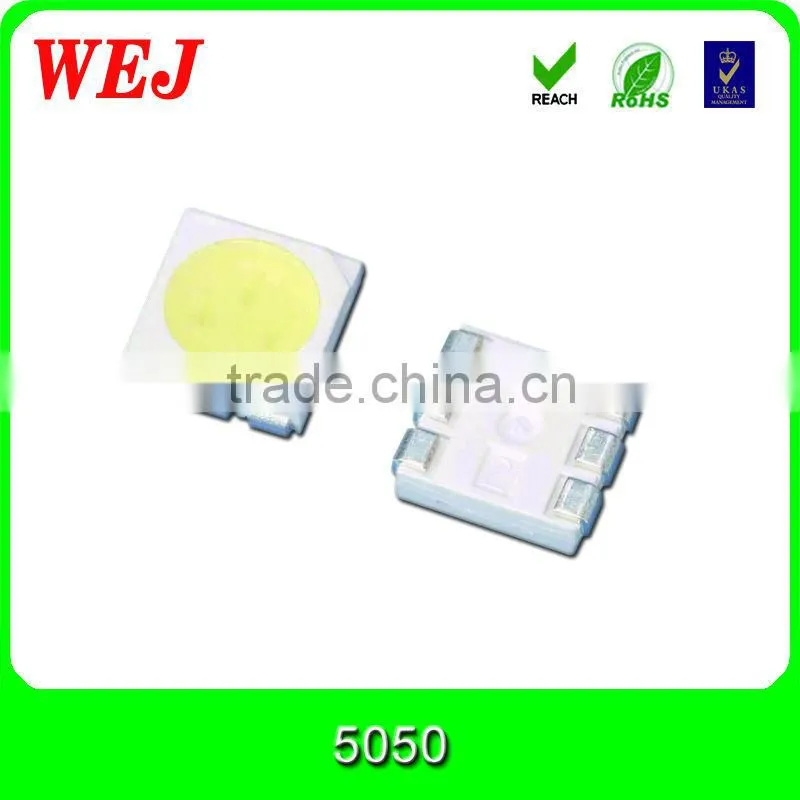

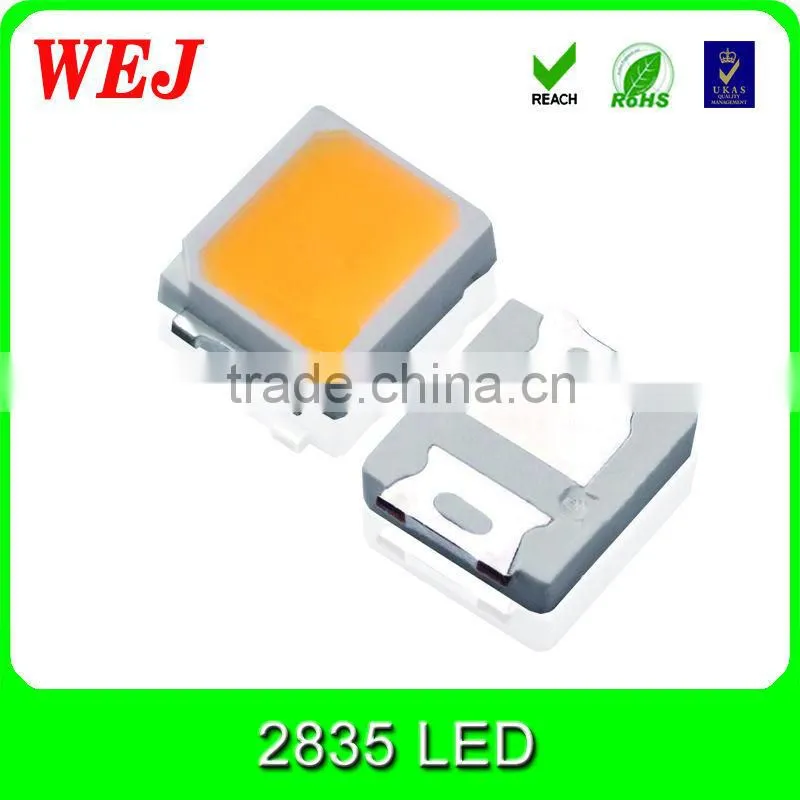

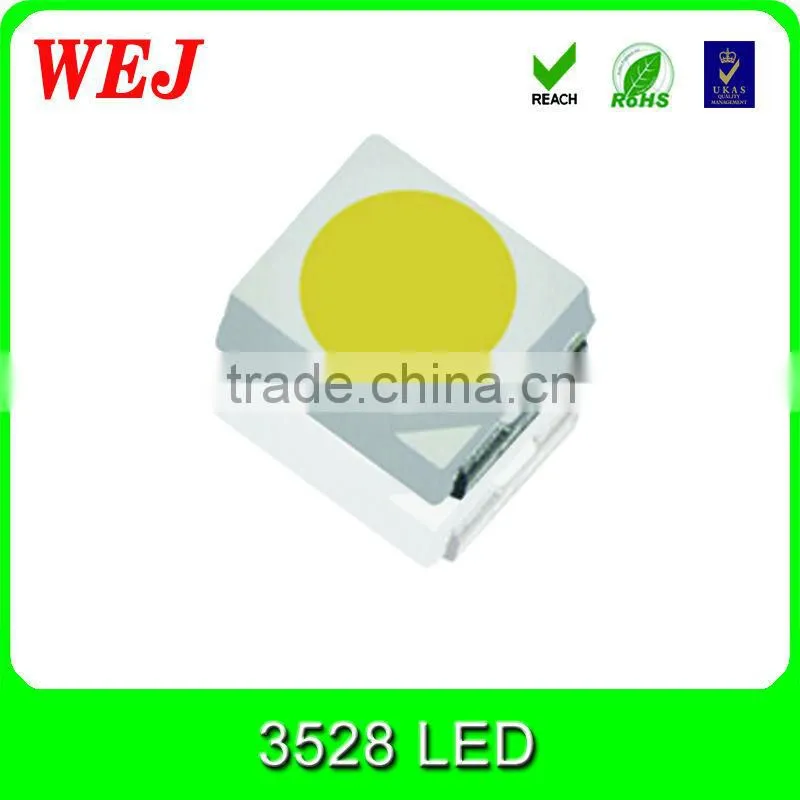

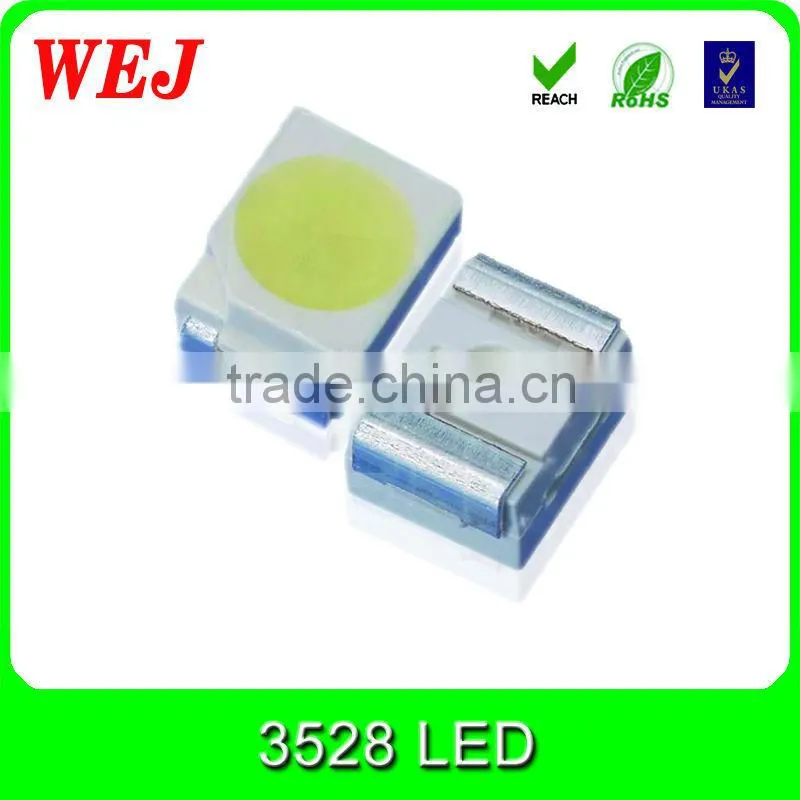

Other main products:
