3014 SMD LED Diodes 10-12lm cool white

MAIN DESCRIPTION:

1) Standard 3014 super bright TOP LED

2) Yellow diffused silicone resin

3) Taiwan EPISTAR corporation 10*23mil InGaN chips

4) High intensity,reliability and long life

5) Environmental friendly,RoHS compliant

6) Widely used in lighting area

ELECTRO&OPTICAL CHARACTERISTICS (If=20mA, Ta = 25C)

1) Forward voltage:3.0~3.5V

2) Luminous flux:10~12lumens

3) Beam color:white, 2700K~8000K available

4) Viewing angle:110°~130°

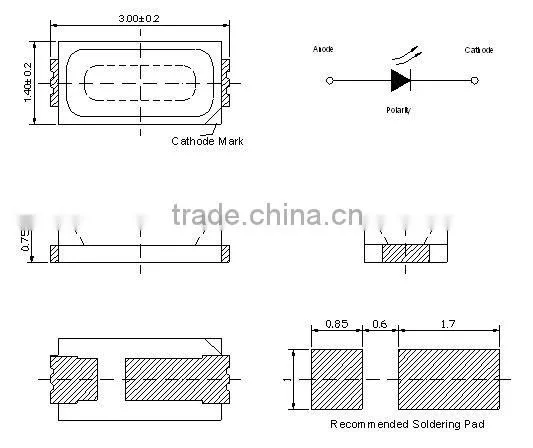

Deminsion:

ABSOLUTE MAXIMUM RATINGS:

Iv attenuation:less than 10% after 1000hour aging test

1) Reverse voltage:>7V @Ir=10uA

2) DC forward current:<25mA

3) Power dissipation:<100mW

4) Pulse forward voltage:<100mA @ duty<1/10,0.1ms

5) Operating temperature range:-30~+85C

6) Storge temperature range:-40~+100C

PACKAGE:

1) 3000Kpcs/reel & Antistatic plastic bag

CAUTION:

1) Warning:care must be taken when viewing the product at closed range

    as the light may be intense enough to cause damage to eye.

2) Note:Industry standard procedures regarding static must be ovserved

    when handing the product.

REMARK:

1) Please visit our company's website to get particular specification

2) website:
