high lumen 60mA 24-26lm white smd 5050
Features of SMD 5050:
*Low power consumption
*Long life-solid state reliability
*Available on tape and reel
*RoHS REACH compliant
*Emitted Color: Warm white
*Viewing Angle:120 degree
*Compatible with SMT automatic equipment, Reflow soder and wave solder
Specification of SMD 5050:
| high lumen 60mA 24-26lm white smd 5050 | |
| Product Data | |
| Item | SMD 5050 |
| Emitting Color | Warm white |
| Color temperature | 2850-3250K |
| Luminous flux | 24-26lm |
| Viewing angle | 120 degree |
| Color rendering index | 75Ra |
| Forward Current | 60mA |
| Peak Forward Current | 300mA |
| Reverse Current | 10uA |
| Forward Voltage | 2.6-3.4V |
| Reverse Voltage | 5V |
| Material | AlGalnP/InGaN |
| Operating temperature | -20~+80°C |
| Store temperature | -40~+80°C |
| Operating Humidity | 10%-60%RH |
| Store Humidity | 40%-60%RH |
| Feature | |
| |
| Application | |
| |
Mechanical Dimensions of SMD 5050:
Note:
1.All dimensions are in millimeters (mm);
2.XX is +/-0.1mm, XXX is +/-0.05mm unless otherwise noted;
3.The device has a single mounting surface, the device must be mounted according to the specifications.
Material of SMD 5050:

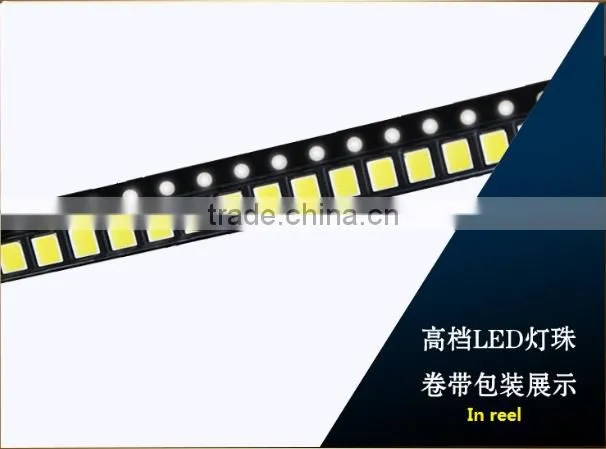

Packaging Dimensions Specification

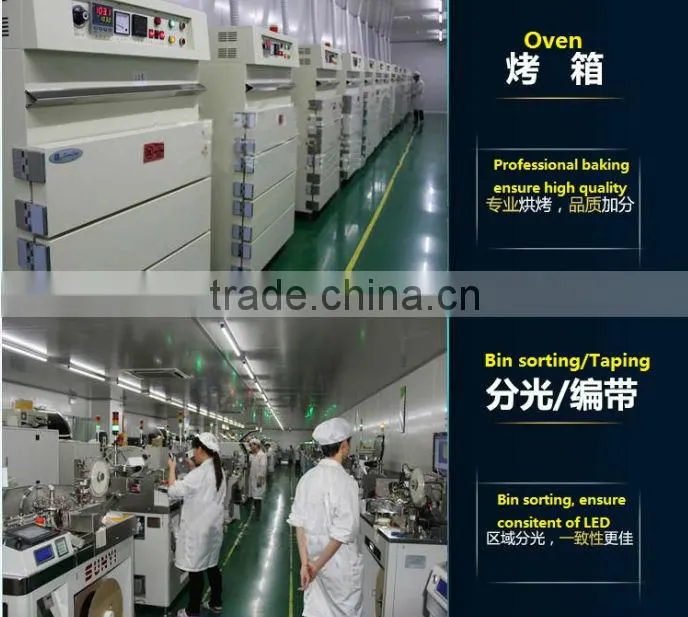

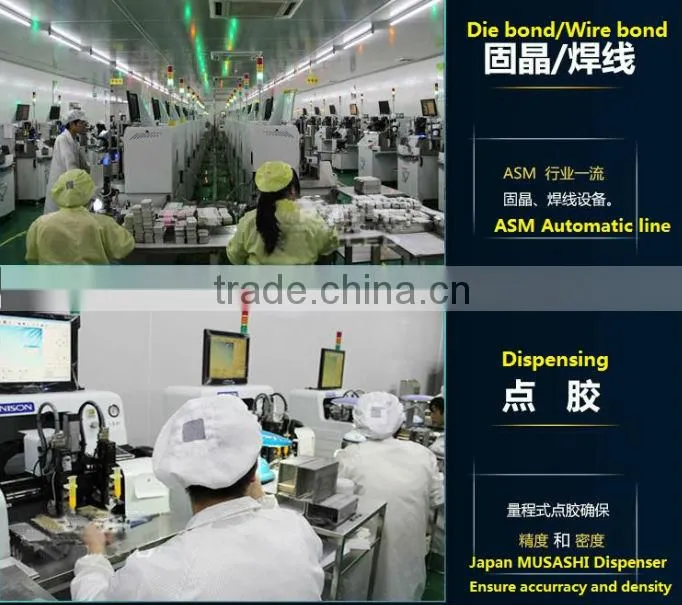

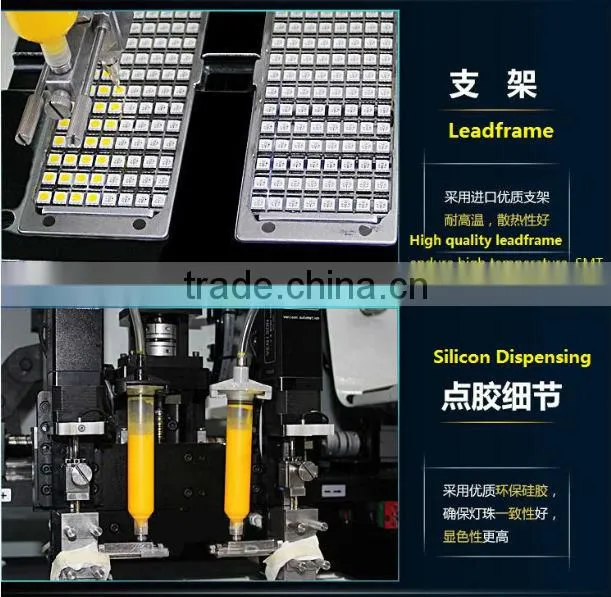

WEJ Factory:
Other models of LED we produce:
Model |
Vf(V) |
If(mA) |
Power(W) |
Luminous intensity |
CRI(Ra) |
3014 |
3.0-3.4 |
30 |
0.1 |
10-12-14 |
70+ or 80+ |
2835 |
3.0-3.4 |
60 |
0.2 |
22-24-26-28 |
70+ or 80+ |
3528 |
3.0-3.4 |
20 |
0.06 |
6-7-8-9 |
70+ or 80+ |
5050 |
3.0-3.4 |
60 |
0.2 |
18-20-22-24-26 |
70+ or 80+ |
5630 |
2.8-3.3 |
150 |
0.5 |
50-60 |
70+ or 80+ |
5730 |
2.8-3.6 |
150 |
0.5 |
50-60 |
70+ or 80+ |
We promise:
1. Your inquiry will be replied within 24 hours
2. Pack the goods very well and delivery them as soon as possible
3. Protection of your sales area, ideas of design and all your private information
4. Get in touch with us if you have any requirements. We also produce various kinds of LED SMD, such as 3014, 2835, 3528, 5630, 5050, etc.
5. We will try our best to solve the problems within or out of the warranty time.
