Home > Lights & Lighting > LED Encapsulation Series > SMD LED > High Quality Good Price 0603 Rgb Smd Led

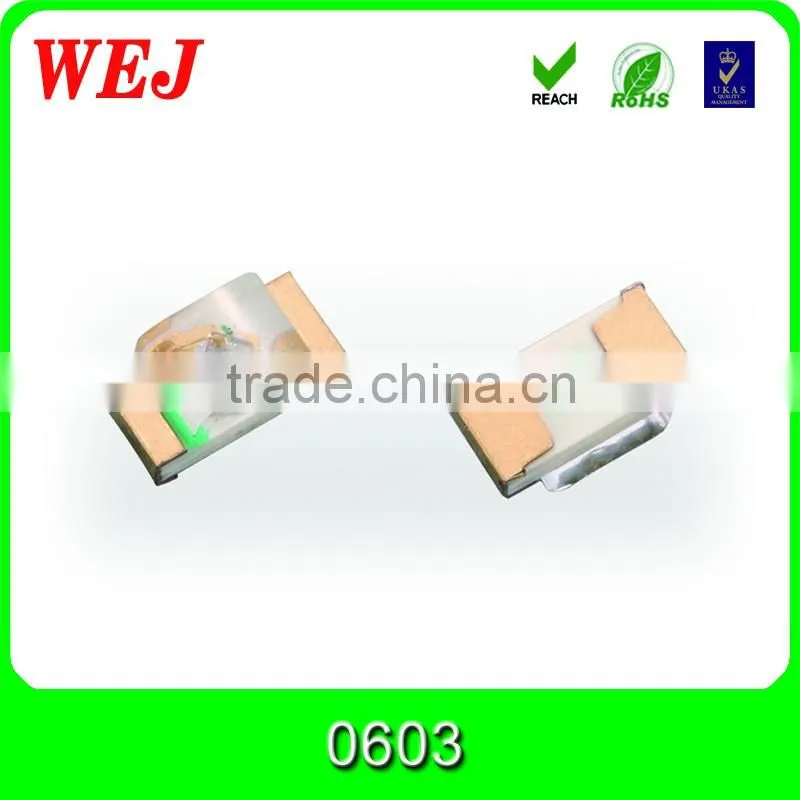

High Quality Good Price 0603 Rgb Smd Led
US$ 0.01 - 0.03
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJT63RGB-882
Chip Material:
InGaN
Emitting Color:
Tri-Color(Red-Blue-Green)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10lm 5600-7000K Pure White SMD LED 3528 DatasheetUS$ 0.01 - 0.02MOQ: 20000 Pieces -
20-24lm High Brightness SMD LED 5050 SMD LED DatasheetUS$ 0.018 - 0.026MOQ: 1000 Pieces
-
60mA 0.2W 20-24LM 3 Chips Natural White 4000-4500K 5050 Smd LedUS$ 0.032 - 0.049MOQ: 1000 Pieces
-
0.2W 60mA 20-26LM Ra>80 2835 SMD LED DatasheetUS$ 0.015 - 0.027MOQ: 4000 Pieces
-
50-60lm 150mA Epistar Chip 0.5W 5630 SMD LED Datasheet With 3 Years WarrantyUS$ 0.03 - 0.068MOQ: 3000 Pieces
Model Number
WEJT63RGB-882
Chip Material
InGaN
Emitting Color
Tri-Color(Red-Blue-Green)
Luminous Intensity
100-200mcd/300-600mcd/120-200mcd
Power
0.06W
Operating Temperature(℃)
-25, 85
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
WEJ
Certification
CE
high quality good price 0603 rgb smd led
Feature
Parameter |
Symbol |
Condition |
Value |
Unit |
|||
Min. |
Typ. |
Max. |
|||||
Forward voltage |
Vf |
If=20mA |
Red |
1.9 |
2.0 |
2.1 |
v |
Green |
2.8 |
3.0 |
3.2 |
||||
Blue |
2.8 |
3.2 |
3.4 |
||||
Luminous intensity |
Iv |
If=20mA |
Red |
100 |
140 |
200 |
mcd |
Green |
300 |
400 |
600 |
||||
Blue |
120 |
160 |
200 |
||||
Dominant wavelength |
λd |
If=20mA |
Red |
615 |
620 |
630 |
nm |
Green |
515 |
520 |
530 |
||||
Blue |
460 |
464 |
470 |
||||
| Forward Current | IF |
|
30 |
|
mA |
||

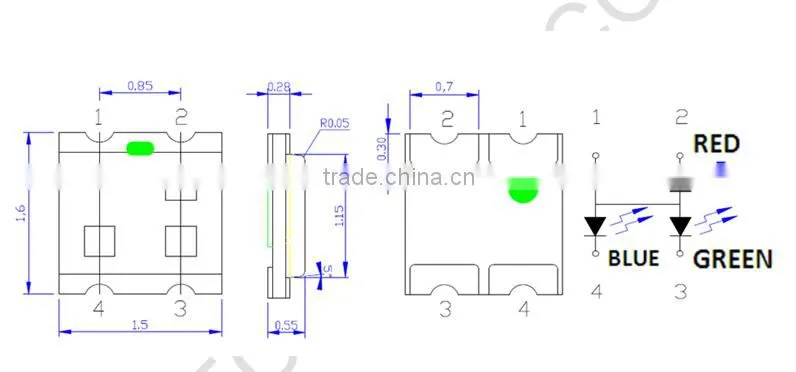

Dimension of 0603 rgb smd led
Note:
1. All dimensions are in millimeters (mm);
2. X.X is +/-0.1mm,X.XX is +/- 0.05mm unless otherwise noted;
3. The device has a single mounting surface, the device must be mounted according to the specifications.

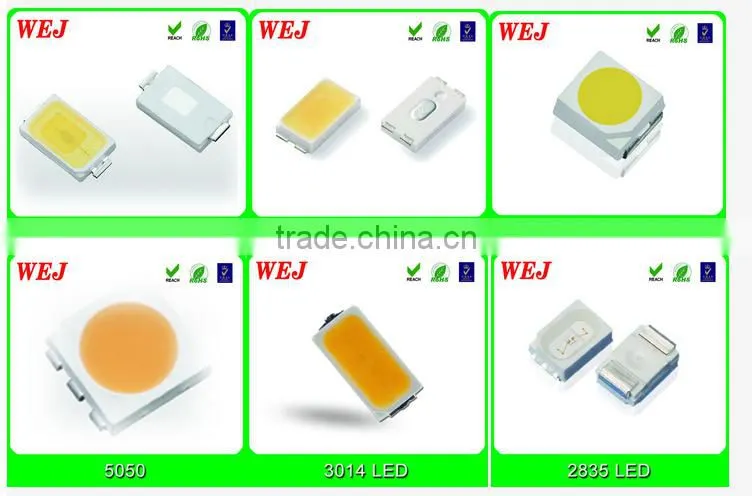

RELATED PRODUCTS

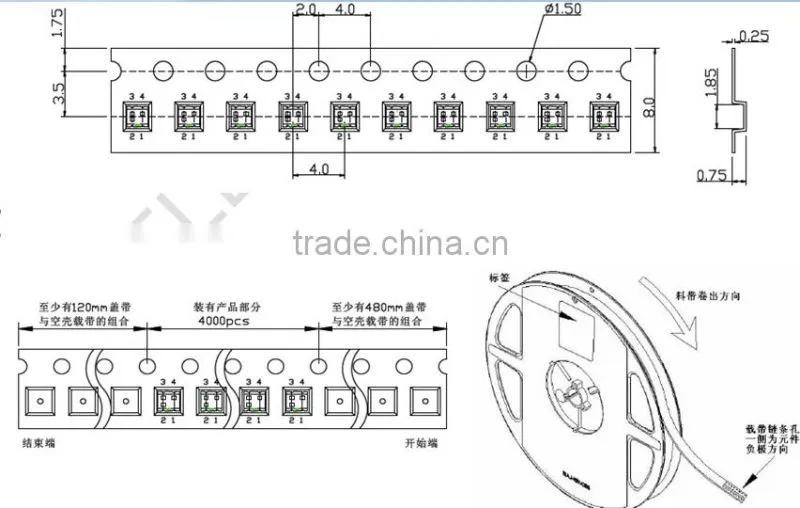

packaging
Shipping of 0603 rgb smd led
Certification

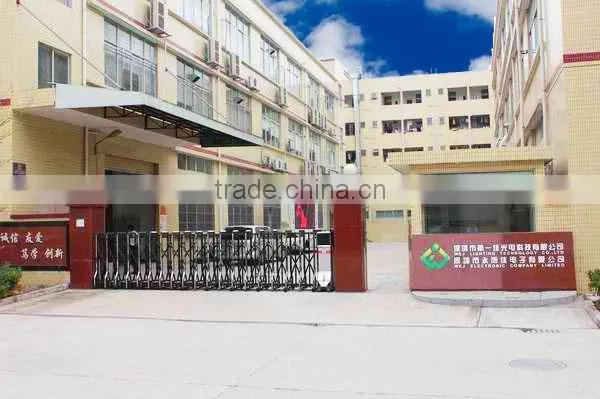

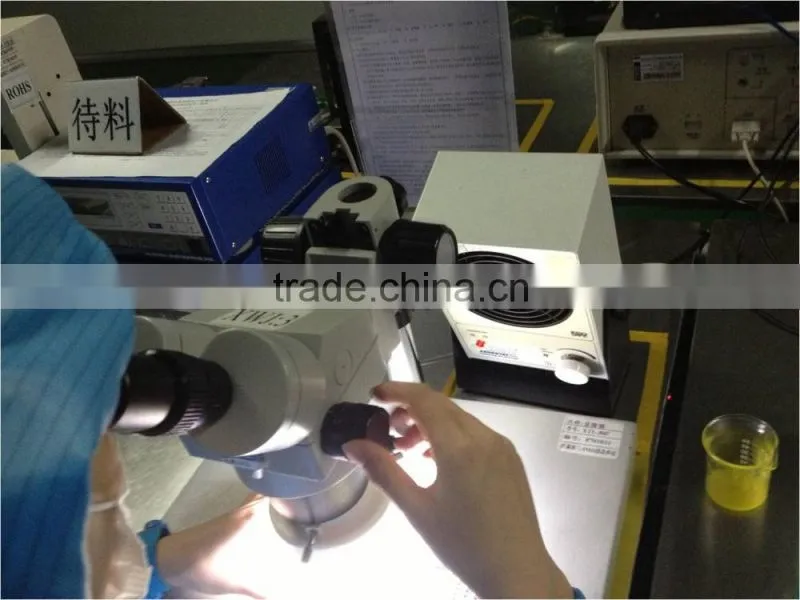

Our Factory
We have over 20 years experiece on leds.
we have professional team.
we supply the most superior service.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
