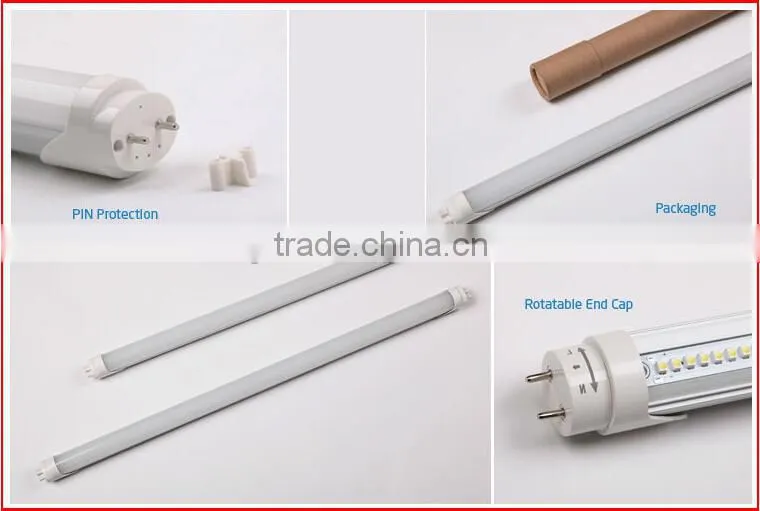

Factory 4ft 1200mm 18W T8 LED Tube Light
Why Choose us?
1. Specialize in led and led lighting since 1996, with rich experience
2. 160 professional staffs serve you
3. 3800 square factory, with 12 production line
4. Well-trained and experienced sales to answer all your enquires within 12hours
5. OEM&ODM, any your customized lightings we can help you to design and put into product
6. High quality with reasonable price
7. CE ROHS PSE Approved, 3 years warranty
8. Very fast delivery: for samples within 3 working days; for bulk order, 15~20 working days
Feature for Led Tube Light:
1. Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 50%
2. Long lifespan: the normal lifespan of LED tubes is above or equal to 50,000H
3. No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes, conforming to CE
4. Green and environmentally-friendly: LED tube has no ultraviolet or infrared rediation, containing no mercury, lead and heavy metal
5. Special circuit design: ensuring that each LED to work independently, the damage of single LED has no influence on the whole, conforming to ROHS
6. Warranty time: 3 years(the range of color temperature: 2700K-6500K)
Applications for Led Tube Light:
Mainlu used in indoor lighting, and can be widely used in star hotel, shopping mall, conference room, office, optothermal control relatively strong laboratory, etc.
To light requirements higher lighting places.
Part Number |
Wattage |
Enclosure |
Voltage |
Power Factor |
THD |
Color |
CCT |
CRI |
Luminous Flux Output |
Luminous Effciency |
|
WHT81M609-B |
9W
|
Frosted/Clear
|
100-240V AC
|
>0.95 |
<15%
|
Cool White |
6500K |
>80 |
1000lm |
110lm/W |
Daylight White |
4500K |
>80 |
1000lm |
110lm/W |
||||||
Warm White |
3000K |
>80 |
900lm |
100lm/W |
||||||
|
WHT81M914-B |
14W |
Frosted/Clear |
100-240V AC |
>0.95 |
<15% |
Cool White |
6500K |
>80 |
1550lm |
110lm/W |
Daylight White |
4500K |
>80 |
1550lm |
110lm/W |
||||||
| Warm White | 3000K | >80 | 1400lm | 100lm/W | ||||||
|
WHT81MC18-B |
18W |
Frosted/Clear |
100-240V AC
|
>0.95
|
<15% |
Cool White | 6500K | >80 | 2000lm | 110lm/W |
Daylight White |
4500K |
>80 |
2000lm |
110lm/W |
||||||
Warm White |
3000K |
>80 |
1800lm |
100lm/W |
||||||
|
WHT81MF24-B |
24W |
Frosted/Clear |
100-240V AC |
>0.95 |
<15% |
Cool White | 6500K | >80 | 2500lm | 105lm/W |
Daylight White |
4500K |
>80 |
2500lm |
105lm/W |
||||||
Warm White |
3000K |
>80 |
2400lm |
100lm/W |
Installations for Led Tube Light (CE Standard):
Step 1: Switch off the power before installation.

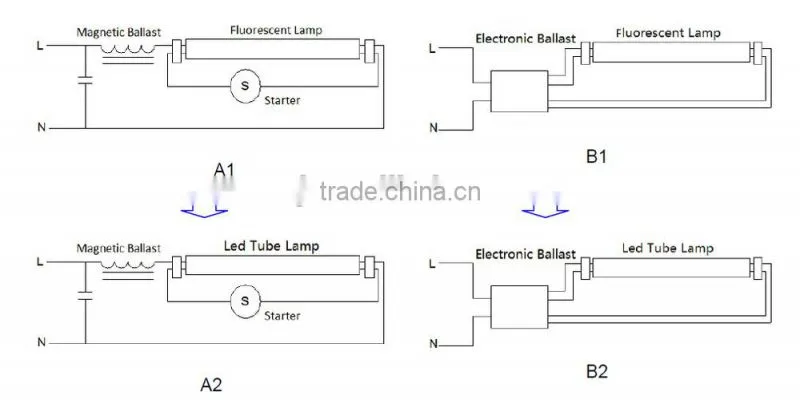

Step 2: For refitting old fluorescent lamp, with a two-side-power-input LED tube, please re-connect your wire as the following diagram.
Step 3: For diagram A1 loop with magnetic ballast & starter, after removing the starter, LED tube can be installed directly into the G13 base.
Then LED tube light is ready to work. And the loop has been changed from A1 to A2. You can just keep the magnetic ballast as it was.
However, it’ll consumer some power. For saving energy, it’s still suggested to cut it out if your labor cost is not so high.
Step 4: For diagram B1 loop with electronic ballast, you also can keep it as it was, just connect L and N to the two sockets of the G13 base separately.
Now your LED tube light is ready to be turned on. And the loop has been changed into the one showed in diagram B2.
However, it’ll consumer some power. For saving energy, it’s still suggested to cut it out if your labor cost is not so high.

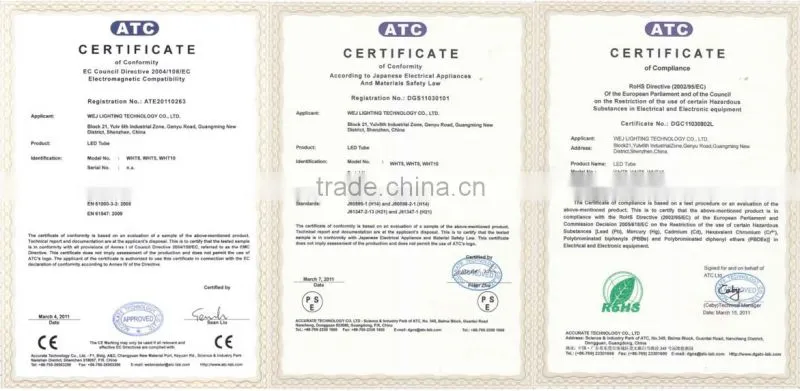

Certificates:
Delivery Time:
1-3 working days for samples
10-15 working days for 5000pcs
25-30 working days for bulk order
Trade Terms:
MOQ: 100PCS after samples confirmed
Payment Terms: Paypal, T/T, Western union, L/C
Packaging & Storage:
Master Carton: 1260*210*270MM
Pcs/Carton: 30pcs
Gross Weight: 10.5KG
Operating Temperature Range: -5° to +45°
Storage Temperature Range: -20° to +65°
Operating Humidity: <85% RH
