12mm Waterproof Adressable Square Diffused Digital RGB LED Pixels Ws2801 IP66

12mm Waterproof Adressable Square Diffused Digital RGB LED Pixels Ws2801 IP66 thumbnail-1
12mm Waterproof Adressable Square Diffused Digital RGB LED Pixels Ws2801 IP66 photo-1
US$ 0.2 - 2 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
DC5V
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Input Voltage(V) DC5V
Lamp Power 0.3
Lamp Luminous Flux(lm) 3-10
Lamp Luminous Efficiency(lm/w) 15
Color Temperature(CCT) Other, Ipixel
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP66
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name Ipixel
Model Number SJ-12-RGB

Specifications

12mm diameter,80mm apart on the strand ,50pcs per strand
DC5V ,0.3W
ws2801 datasheet for the chip inside each pixel

12MM Diffused Thin Digital RGB LED Pixels -WS2801





Features

  • 12mm diameter ,8mm apart on the strand ,50pcs per strand
  • New !These pixels use a ws2801 chip for full 24 bit color
  • WS2801 datesheet for the chip inside each pixel
  • RGB pixels are digitally-controllable lights,you can set any color or animate
  • Each RGB LED and controller chip are molded into a 'dot' of silicone,The dots are weatherproof and rugged.
  • There are four flanges molded in so that you can push them into a 12mm drill hole in any mterial
  • They are usually used to make outdoor signs and display
  • we also have pixels that are long and thin ,both are the same electronics ,just different shapes

Specifications



Product Name 12mm diffused thin digital RGB LED pixels-ws2801
Model NO. SJ-12-RGB
IC Type WS2801
Working Voltage DC5V
Power Consumption 0.3W
Emitting Color Full color
Controller DMX & Arduino & Madrix & SD card
Working Temperature -40-60°c
Life-span >50,000 hours
Certificate CE&RoHS
Warranty 2 years
LED Qty 1 pcs
LED Type SMD 5050 RGB
IP Grade IP66

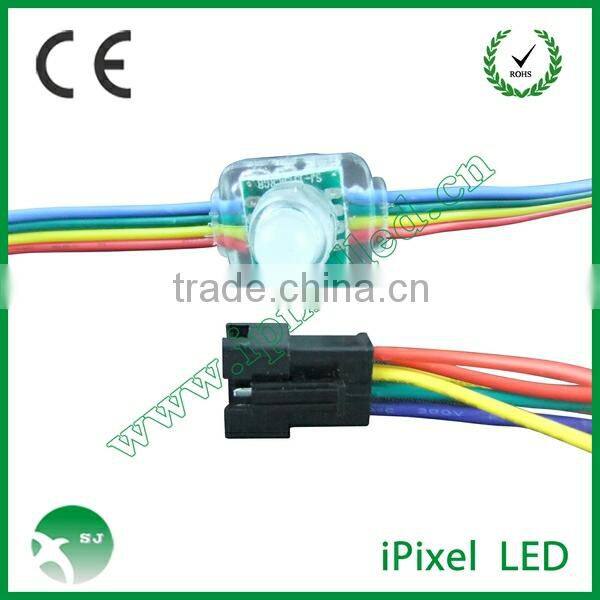

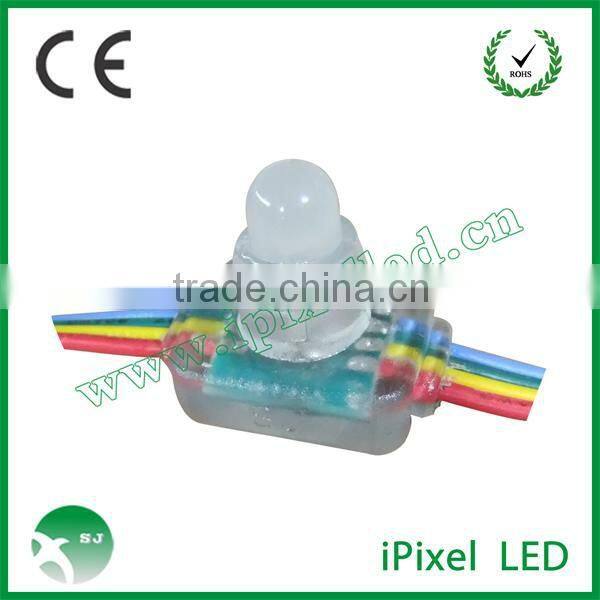

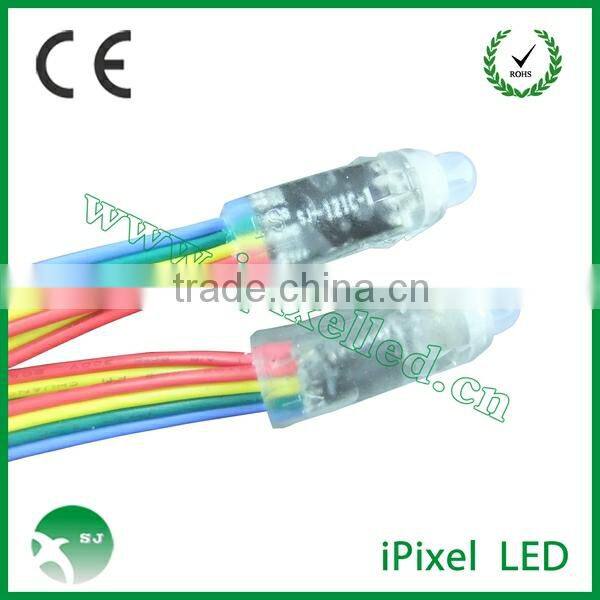

Product picture



12mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP6612mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP66



 12mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP66





12mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP66

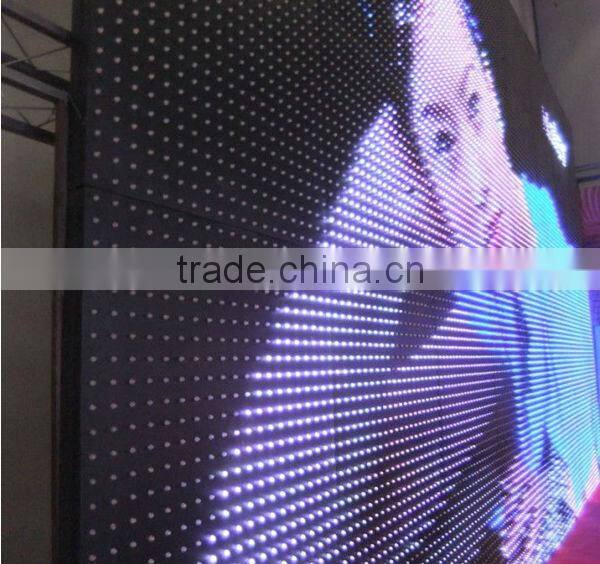

Related project



12mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP66

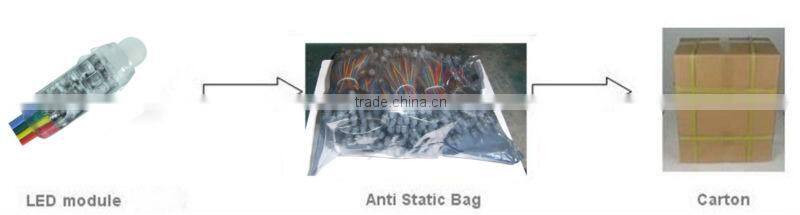

Packaging



12mm waterproof adressable square diffused digital RGB LED pixels ws2801 IP66





Shipment



1.Products will be delivered within 3-5 working days after the payment received

2.Ship item via door to door service express ,or aie and sea





Service



1.You inquire will be replied in 24 hours

2.Experienced staffs answer all your qustions in fluent English

3.Customized design is available ,OEM&ODM are welcomed

4.Exclusive and unique solution will be provided to customers by well trained and professional engineers





Warranty



1.All products are in good quality and have been tested before they are shipped out

2.All products enjoy two years warranty
