Diffused Rgb Outdoor Advertise Light 12mm Ip 66 Waterproof 50 Pcs per String

Diffused Rgb Outdoor Advertise Light 12mm Ip 66 Waterproof 50 Pcs per String thumbnail-1
Diffused Rgb Outdoor Advertise Light 12mm Ip 66 Waterproof 50 Pcs per String photo-1
US$ 0.1 - 1 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
epistar
Input Voltage(V):
DC
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar
Input Voltage(V) DC
Lamp Power 0.3
Lamp Luminous Flux(lm) 3-7
Lamp Luminous Efficiency(lm/w) 15
Color Temperature(CCT) Warm White
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP67
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name sj
Model Number sj-12-ICRGB

Specifications

1 ws2801 chip
2 addressable
3 factory direct price
4 Matrix ,artnet ,arduino compatible
5 2 years warranty

P67 DC5V ws2801  rgb led pixel light string(outdoor led signboard)



 WS2801 RGB LED pixel 12mm
1.DC5V.0.3W,WS2801IC
2.Waterproof IP66
3.SD&DMX controller
4.CE&RoHS



Features:



1. Low wattage, energy efficient and major reduction in power costs
2. Virtually no maintenance
3. Low heat, high brightness, and works well under harsh conditions
4. Including 3m adhesive tape for convenient mounting
5. Full range of colors: red, yellow, blue, green, and white
6. Input voltage: 12V DC, professionally designed to be fully waterproof
7. IP 66 protection degree can be normally operated even in cloudy, rainy and snowy weather
8. Solid-state, high shock or vibration resistant
9. No RF interference
10. Long life 50,000hours+ ural decorative lighting

11. 18 AWG wire at 8cm space apart

12. Environmentally friendly – fully recyclable, no mercury or other hazardous materials





the  datesheet



Model NO.

SJ-12ICRGB

IC chip

ws 2801

Power Consumption

0.3W

Work Voltage

DC 5V

Beam Angle

≥120

LED Quantity

1 pcs

Color

Full color (ICRGB)

shape

round

Waterproof Grade

IP66

Work Temperature

-40-+60°C

Life-span

50,000H

Certificate

CE&RoHS

Warranty

2 years





LEDs Advantage:

1. Green lighting,with CE&RoHS,DC5V input,50pcs per strand or as customer requirement

2. Energy saving, saving 50% ,0.3W,8cm distance between each LEDs

3. WS2801 IC,256 gray leval with more pixel flash and animations.



LEDs Attention:

 Part 1   LED is 50pcs per string.8cm wire between each LED,punching diameter is 12mm

 Part 2   Installation to avoid the risk of electric shock.

 Part 3   LED lamp,if any, when deformed or damaged,replace.

 Part 4   This LED has different IC model,please notice different IC different wire define
 Part 5   LED input voltage is DC5V,used the sd-card controller normally,DMX compatiable.
 Part 6   It is not suitable for use in the climax of the environment in the high humidity







the  dateline



diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string





the   drawing

diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string



the  iamges



diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per stringdiffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string



 diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string









 the   other  images



diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per stringdiffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per stringdiffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per stringdiffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string

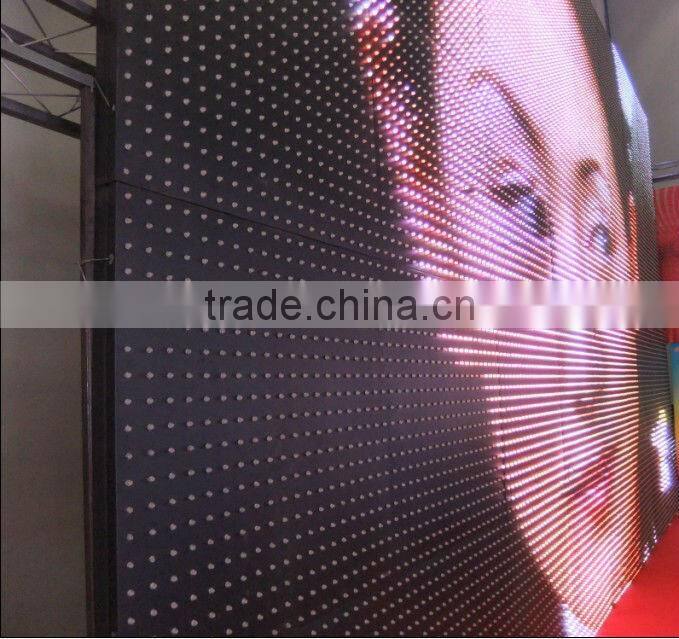

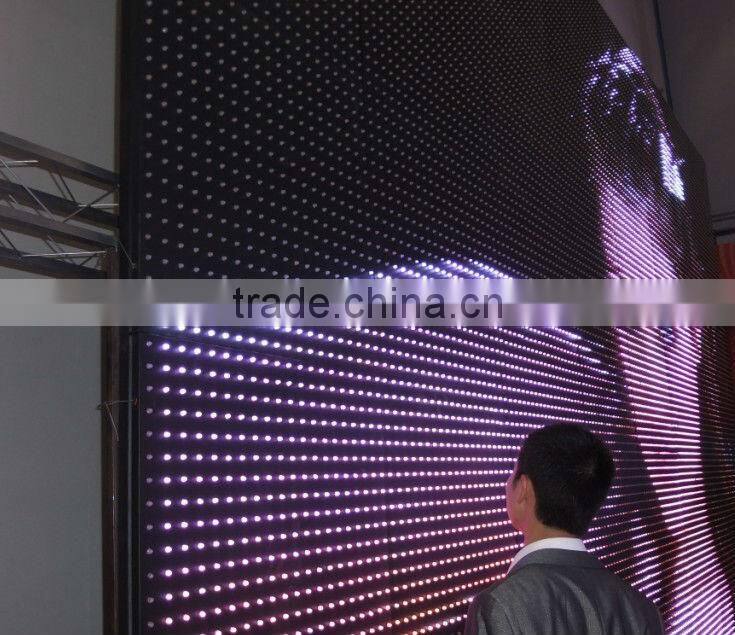

 the  project



diffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per stringdiffused rgb outdoor advertise light 12mm Ip 66 waterproof 50 pcs per string








 need any animation  ,more specfication and  free samples  available

you are always welcome
