Specifications
1.Working Voltage:DC12V2.IP Rating:IP66
3.LED Type:SMD 5050 led
4.Diameter:45mm
5.Certicified:CE&RoHS
programmable DMX controller smd 5050 led pixel module
Features:
1)programmable by software
2)3 pcs RGB SMD leds
3)20pcs per string,8cm space between each Pixel
4)customized wire length is available
Specification:
Model NO. |
SJ-45ICRGB |
Diameter |
45mm |
Power Consumption |
0.72W |
Work Voltage |
DC12V |
Viewing Angle |
≥140 |
LED Quantity |
3pcs |
LED Type |
SMD5050RGB |
Emitting Color |
Full color(ICRGB) |
IC Type |
WS2801&LPD6803 |
Waterproof Rating |
IP66 |
Working Temperature |
-40-55°C |
Lifespan |
50,000hrs |
Certification |
CE&RoHS |
Warranty |
2 years |
Description:
1.RGB Pixels are digitally-controllable light so you can set to any color or animate
2.The pixels are connected by a 4-conductor cable.+12V(Red),Ground(Yellow),Data(Green),Clock(Blue).Or we can tailor-make the color of cable for you .Data is shifted down from one pixel to the next so that you can easliy cut the strand or attach more onto the end
3.Sold by strand,each strand has 20 pixels in series. Each strand has two 4-pin connectors so you can connect multiple strands in a row,as many as you wish,just watch for how much current they want
4. Relative Controller: T-1000S controller support WS2801; when use DMX decorder, can connect to DMX system
5. Support online control
6.Can be used as flexible led display screen to show image and video

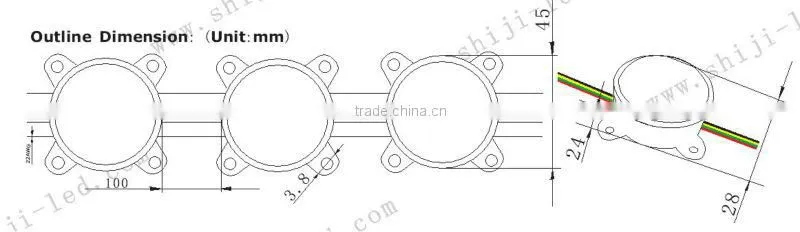

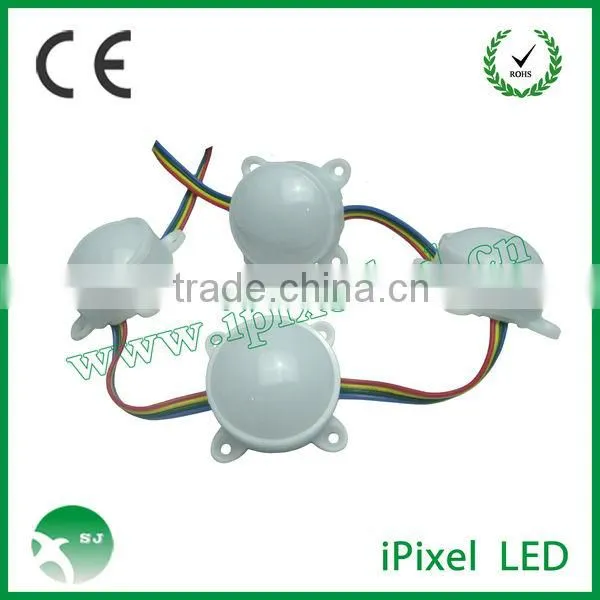

Detailed Images:

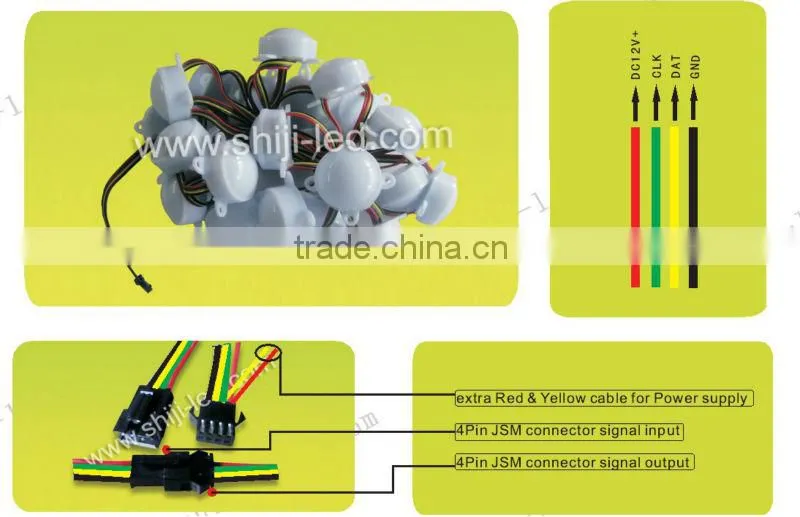

Signal Cables Define:
Installation Notice:

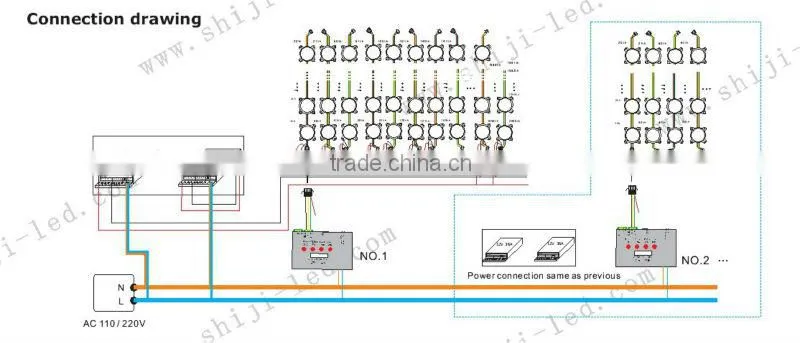

1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value

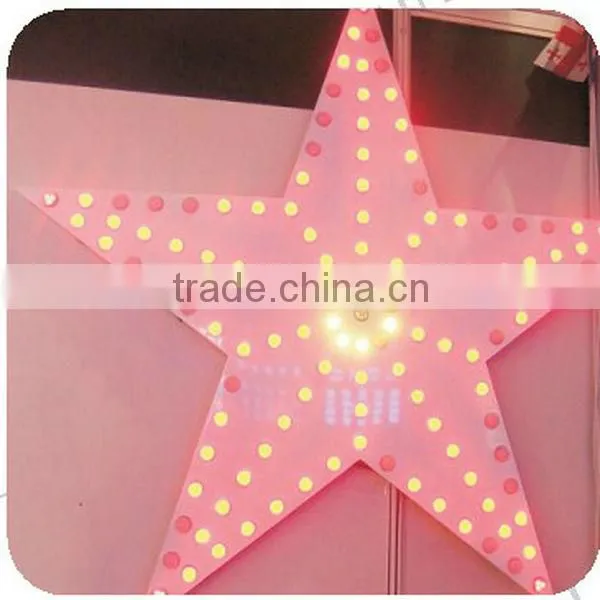

Application:

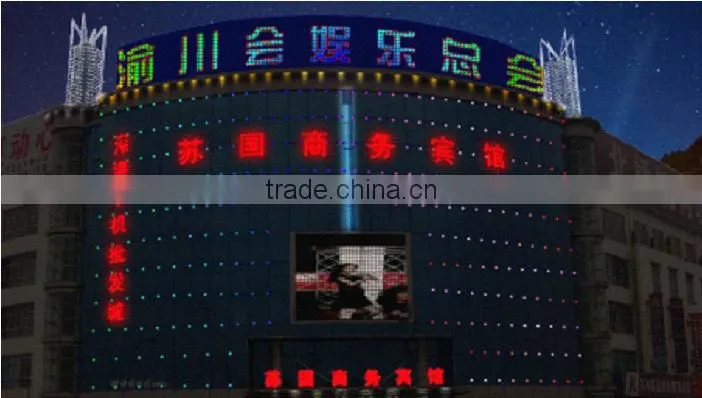

1.outdoor sign solution
2.night club
3.advertsing screen
Packaging Pictures:
Service:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcomed
4.Exclusive and unique solution can be provided to our customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
Shipment:
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea.
Waranty:
1.All products we sell are in good quality and have been tested before they are shipped out.
