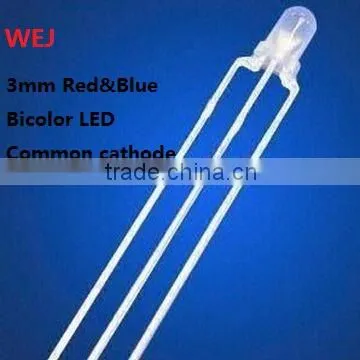

Through Hole Package Type and DIP LED Diodes 3mm Red Blue Bicolor LED Common Cathode
US$ 0.022 - 0.035
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJ3290W-R3B7--BC
Chip Material:
InGaN
Emitting Color:
Other, Red&Blue bicolor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Through Hole Package Type and LED Type Led 5mm LED With 850nm IR LEDUS$ 0.05 - 0.07MOQ: 1000 Pieces -
Led Rgb 5mm Commond Anode Led 4 Pin DiodeUS$ 0.09 - 0.095MOQ: 20000 Pieces
-
High Quality 5mm Round Red Emitting Led Diode 640nm/ 660nm RoSH CompliantUS$ 0.043 - 0.082MOQ: 30000 Pieces
-
3mm Round Pure Green Diffused Dip LEDUS$ 0.03 - 0.04MOQ: 20000 Pieces
-
5mm R&G&B Commond Anode Led 4pins DiodesUS$ 0.09 - 0.095MOQ: 20000 Pieces
Model Number
WEJ3290W-R3B7--BC
Chip Material
InGaN
Emitting Color
Other, Red&Blue bicolor
Luminous Intensity
1000
Power
0.1W
Power Dissipation
0.12
Operating Temperature(℃)
-25, +85
Storage Temperature(℃)
-40, +100
Place of Origin
Guangdong, China
Brand Name
WEJ
Certification
CE
Specifications
LED Diodes 3mm1.If=20mA, R:2.0V, B:3.2V
2..Wavelength:R:630-640nm,B:460-470nm
3.Intensity:R:350mcd,B:1000mcd
4.Free sample
Through Hole Package Type and DIP LED Diodes 3mm Red Blue bicolor LED common cathode
Product Description
Typical Electrical and Optical Characteristics(Ta=25 °C)
| Parameter | Symbol | Condition | Min | Typ | Max | Unit | |
| Luminous intenstiy | Iv | If=20mA | Red | 260 | 300 | --- | mcd |
| Blue | 750 | 1000 | --- | ||||
| Forward Voltage | Vf | If=20mA | Red | 1.8 | 2 | 2.4 | V |
| Blue | 2.8 | 3.2 | 3.8 | ||||
| Peak Wavelength | λp | If=20mA | Red | ---- | 640 | --- | nm |
| Blue | --- | 460 | --- | ||||
| Dominant Wavelength | λd | If=20mA | Red | 630 | 635 | 640 | nm |
| Blue | 460 | 466 | 470 | ||||
| Reverse Current | Ir | Vr=5v | Red | 50 | |||
| Blue | 10 | ||||||
| Viewing Angle | If=20mA | Red | --- | 70 | --- | deg | |
| Blue | --- | --- | deg | ||||
