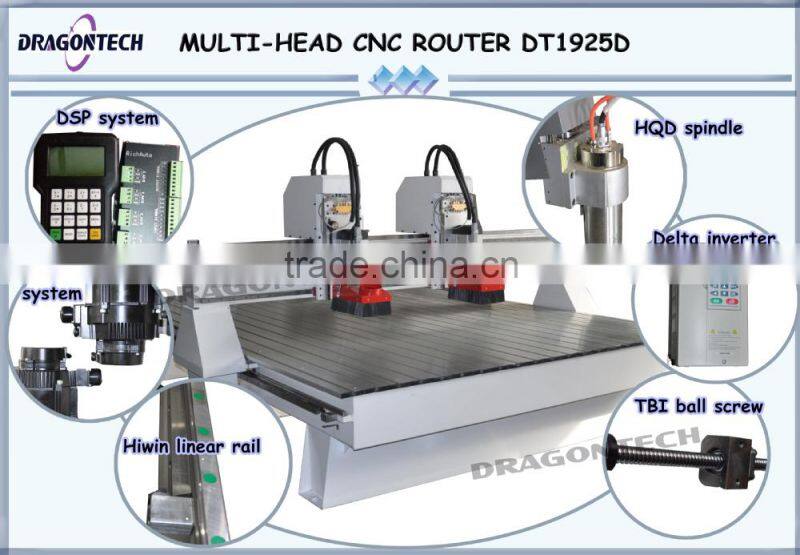

2 heads cnc milling and milling machine DT1925D
Parameter
| No. | Description | DT1925D |
| 1 | X,Y,Z working size | 1900*2500*200mm |
| 2 | Working table | PVC and T-slot aluminum table |
| 3 | Gantry | Steel |
| 4 | Transmission system | Rack pinions for X,Y, ball screw for Z;Hiwin linear rails for X,Y,Z |
| 5 | Driving system | Yaskawa |
| 6 | Repositioning accuracy | ±0.03mm |
| 7 | Max. travelling speed | 50000mm/min |
| 8 | Max. working speed | 25000mm/min |
| 9 | Spindle | 3.5kw HQD spindle |
| 10 | Spindle speed | 0-24000RPM |
| 11 | Spindle quatity | 2 heads |
| 12 | Control system | DSP |
| 13 | Command code | G code(*uoo,*nc,*mmg,*plt) |
Applications:
Dragon Tech multi head CNC Router is suitable for hard woodworking, cutting and engraving on rosewood for furniture, indoor decoration, MDF, acrylic, plastic and so on.
The 2-8 spindles can produce items with time and cost efficiencies making production more economic.
Options:
Driving system: stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter, Fuling inverter
Control system: DSP, Mach 3, Ncstudio, Syntec
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter (DELTA or FULING) and the table of the machine also can be customized and so on .
Jinan DragonTech Co. is a professional CNC Router manufacturer which focuses on producing high quality precision machines. Our company’s mission is to produce best machines and supply best services for our customers.
Our main products include DT series of CNC Routers for woodworking, advertising, stone engraving, mould making, metal cutting and the DT series of Plasma cutting machines. We also produce customized machines for our customers with special requirements.
We put the customers first and high quality is our obligation. Welcome to Visit our factory!
Contact information:
Name: Bonnie
Skype: bonnie.dragontech
Mobile: 8618363086495
QQ: 2771403714
Trademanager: cn1510725215
