Home > Products > Signmaking CNC Router > cnc wood craft machine DT0202
cnc wood craft machine DT0202
- 160 Set / Sets per Month
- Qingdao Port china
- T/T
-
Most popular! Advertising cnc router/router cnc machine/widely used for advertisng signs making-DT1224
-
China Supplier Plastic / Wood / MDF / Plexiglas / Organic / Acrylic Mini CNC router price DT6090M
-
220V 60HZ BECKER KVT3.140 VACUUM PUMP, BECKER PUMP FOR CNC ROUTER
-
220V 60HZ Germany BECKER vacuum pump KVT3.140, KVT3.140 for CNC Router
-
Germany BECKER air vacuum pump KVT3.140, BECKER vacuum pump, air vacuum pump for CNC Router 1325
-
Dry running rotary vane vacuum pump ZBW160E
Product Details
| Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
| Brand Name: | DragonTech | Model Number: | DT0202 | Voltage: | 220V, 1P |
| Power(W): | 600W | Dimension(L*W*H): | 200*200*140mm | Weight: | 30KG |
| Certification: | CE | Warranty: | 12-24 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
WOODEN CASE
Product Description

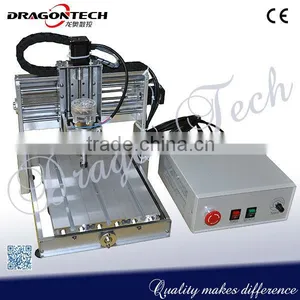

cnc wood craft machine DT0202
Applications:
The Dragon Tech CNC Router is a professional machine, used for sign, graphic fabrication,2D/3D machining (wood, acrylic, plastics, PVC, MDF etc.), stone fixture, display manufacturing, solid surface machining, Non-ferrous sheet metalwork (aluminium, brass, copper and zinc).
Options:
Working size: different working size matching your requirements.
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter,Fuling inverter
Control system: DSP, Mach3, Weihong NK105
Rails: shaft rails or Hiwin linear rails for X/Y/Z
No. |
| Description |
| DT0202 |
1 |
| X,Y,Z working size |
| 200*200*140mm |
2 |
| Working table |
| T-slot aluminum table |
3 |
| Lathe structure |
| Aluminum |
4 |
| Transmission system |
| Ball screw for X/Y/Z; shaft rails for X/Y/Z |
5 |
| Driving system |
| Stepper motor and drivers |
6 |
| Repositioning accuracy |
| ±0.02mm |
7 |
| Max. travelling speed |
| 4000mm/min |
8 |
| Max. working speed |
| 2400mm/min |
9 |
| Spindle and collet |
| 300w Chinese air-coolant spindle, ER11 |
10 |
| Spindle speed |
| 0-10000RPM |
11 |
| Working voltage |
| 220V/1ph |
12 |
| Max. consume power |
| 600w |
13 |
| Operating system |
| Mach 3(Mach 2) system |
14 |
| Command code |
| G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on.
Company Profile
Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.
Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.
We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets.
We hope to establish long-term business relationships with all customers and enjoy the benefits together.
