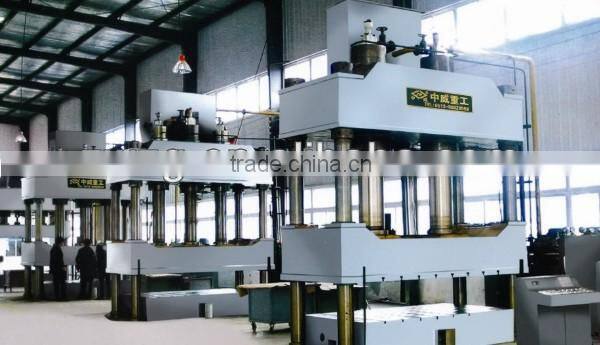

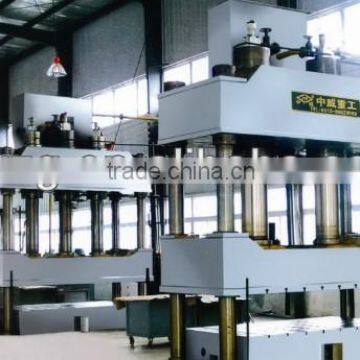

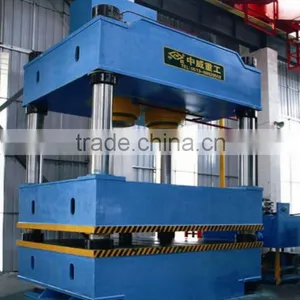

Help Center200 Tons Four Column Hydraulic Press
Related Products
-
400 Tons Four Column Hydraulic PressUS$ 10,000 - 60,000MOQ: 1 Set -
Metal Cutting Shear QC12Y-4*2500US$ 5,000 - 10,000MOQ: 1 Set
-
Metal Cutting Shear QC12Y-4*3200US$ 5,000 - 10,000MOQ: 1 Set
-
Metal Cutting Shear QC12Y-10*4000US$ 30,000 - 35,000MOQ: 1 Set
-
Hydraulic Swing Beam Shearing Machine QC12Y-12*2500US$ 30,000 - 35,000MOQ: 1 Set
Specifications
1.Best price2.Fast delivery
3.ISO certification
4.Best after-sales
This machine has independent power sector and electrical systems, and the use of relay control, can implement adjustment and semiautomatic operation. The machine working pressure, sliding fast stroke range can be adjusted according to process requirements; and to complete the process of constant pressure forming two processes given way. Constant pressure molding method after the suppression of the process, with the holding pressure and delay automatic return action.
| no | item | data | unit |
| 1 | nominal force | 2000 | KN |
| 2 | knock-out pressure | 190 | KN |
| 3 | max. working pressure of liquid | 25 | Mpa |
| 4 | max. open height | 1100 | mm |
| 5 | stroke of slide | 700 | mm |
| 6 | stroke of top cylinder | 250 | mm |
| 7 | dimension of table(left to right) | 1000 | mm |
| 8 | dimension of table(front to back) | 900 | mm |
| 9 | travel speed of main cylinder(fast down) | 100 | mm/s |
| 10 | travel speed of main cylinder(workinh) | 18 | mm/s |
| 11 | travel speed of main cylinder(return) | 80 | mm/s |
| 12 | power | 15 | KW |
Packing details: Wrapped by plastic films and fixed by steel wires in the Containers
Delivery time: 30 days

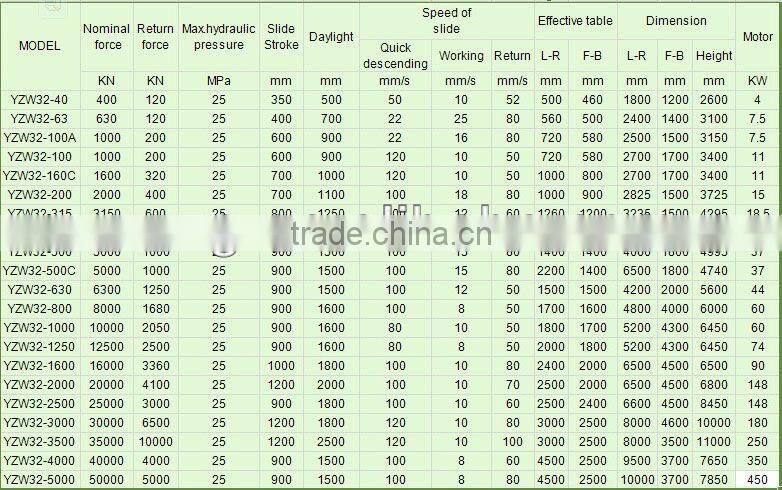

More types that we supply

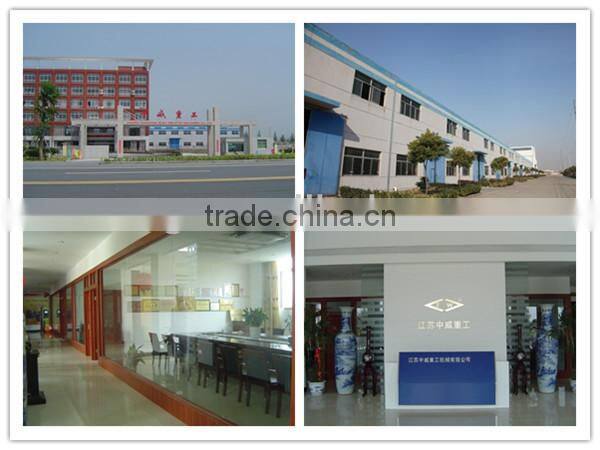

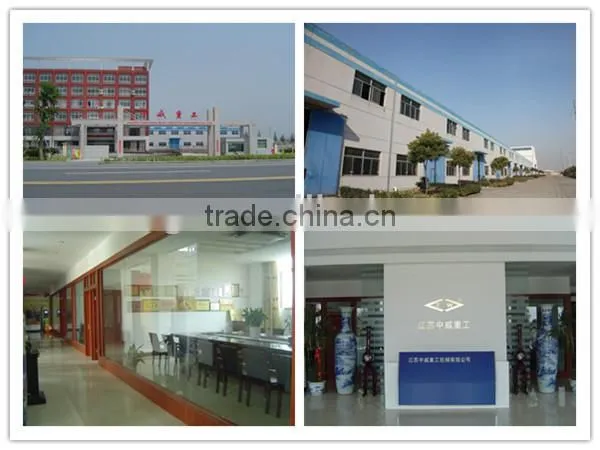

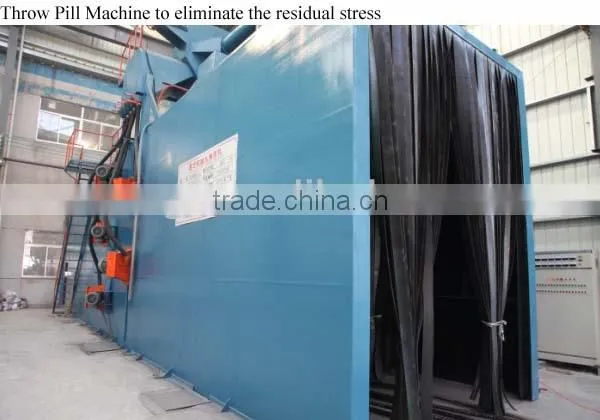

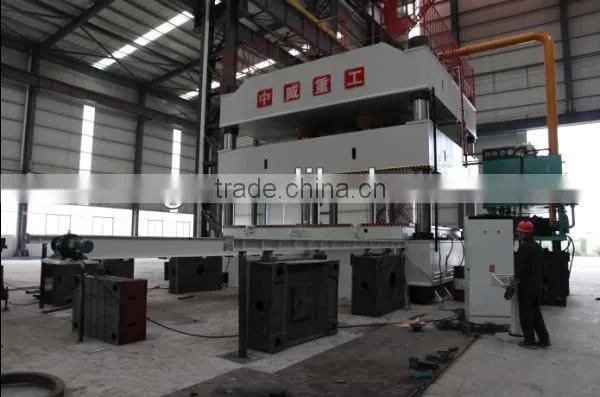

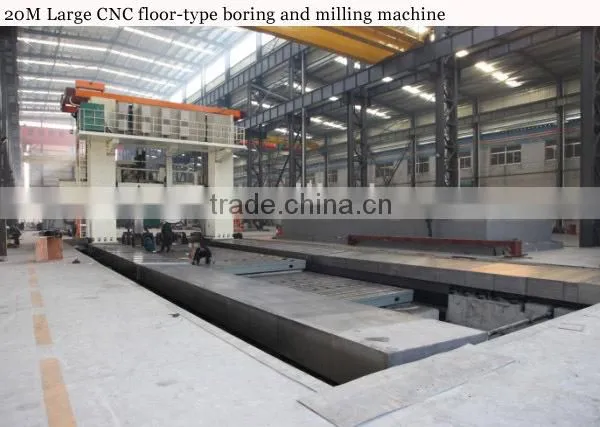

Our company, founded in 1971, is a professional manufacturer of hydraulic press.This picture shows our office and workshop.It is located in 31# Haifang Road, Development Zone Haian, Nantong,Jiangsu, P.R.China
The certification we achieved:
foreign customers' visitting
