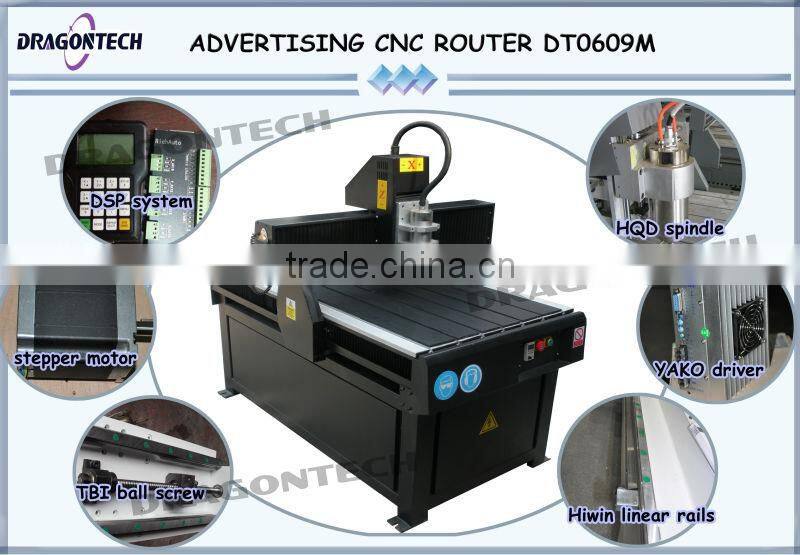

6090 Cnc Router DT0609M

Name: 6090 Cnc Router DT0609M
Brand: DragonTech
Availability: InStock

FOB Price

US$ 2,500 - 3,500 / Set

1 Set(Min. Order)

Port QINGDAO PORT CHINA
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	DragonTech
Model Number	DT0609M	Voltage	220V/1Ph
Power(W)	2.5KW	Dimension(LWH)	600900100mm
Weight	500kgs	Certification	CE
Warranty	12-24 months	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

WOODEN CASE

Product Description

6090 cnc router DT0609M

Product Description

Parameter:

No.	Description	DT0609M
1	X,Y,Z working size	600900100mm
2	Working table	T-slot table
	Gantry	Steel
	Spindle	1.5kw water-cooling spindle
	Spindle speed	0-24000RPM
	Transmission system	Ball screw for X,Y,Z; Shaft rails for X,Z,Hiwin linear rails for Y
	Max. travelling speed	6000mm/min
	Max. working speed	3000mm/min
	Control system	DSP
	Driving system	Stepper
	Repositioning accuracy	±0.02mm
	Command code	G code(uoo,nc,plt,mmg)

Applications:

The Dragon Tech CNC Router is a professional machine, used for sign, graphic fabrication,2D/3D machining (wood, acrylic, plastics, PVC, MDF etc.), stone fixture, display manufacturing, solid surface machining, Non-ferrous sheet metalwork (aluminium, brass, copper and zinc).

Options:

Working size: different working size matching your requirements

Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle

Inverter: Delta inverter,Fuling inverter

Control system: DSP, Weihong NK105, Mach 3

Rails: shaft rails or Hiwin linear rails for X/Y/Z

Can equipe rotating axis, liubricating system, mist cooling system, and so on.

P.S.

All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .

Packaging & Shipping

Company Profile

Beijing Vigers Co., Ltd.

Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets. We hope to establish long-term business relationships with all customers and enjoy the benefits together.
