Home > Products > New Products > Hydraulic Rolling Machine W11S-60x3000

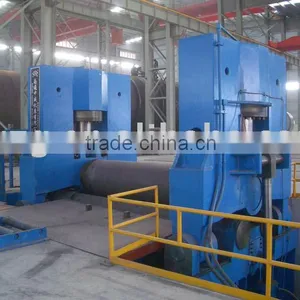

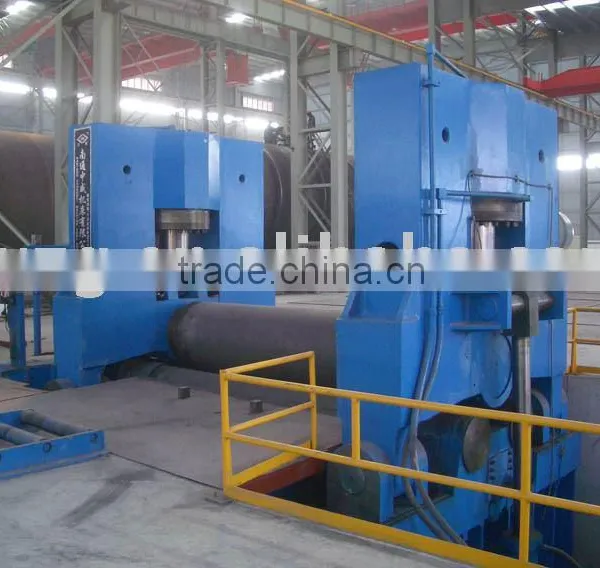

Hydraulic Rolling Machine W11S-60x3000
- 1 Set / Sets per Month
- SHANGHAI
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ZHONGWEI | Model Number: | W11S-60x3000 |
Machine Type: | Beading Machine | Raw Material: | Sheet / Plate Rolling | Material / Metal Processed: | Stainless Steel |
Power: | Cnc | Automation: | Manual | Extra Services: | Plating / Coating |
Certification: | ISO 9001:2000 |
Product Description
Specifications
Hydraulic Rolling Machine W11S-60x3000.- Hydraulic Rolling Machine W11S-60x3000
- Performance:
W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high rolling precision, no need to use any subsidiary equipment, less investment.
This machine is hydraulic three rollers machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal temperature.
The upper roller can be moved horizontal and level.
When cycle, to bring two lower rollers running through motor and reducer.
Because the standard height of lower roller is unchanged, it is convenience to feeding and operating.
- Technical data (can be provided as customers request for special model)
-
Name
Data
Unit
Max. rolling thickness
60
mm
Max. pre-bending thickness
50
mm
Max. rolling width
3000
mm
Diameter of upper roller
650
mm
Main motor power
75
kw
