LPD6803 Digital Led Bar

LPD6803 Digital Led Bar thumbnail-1
LPD6803 Digital Led Bar photo-1
US$ 1 - 20 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
epistar 5050 smd led
Type:
LED Bar Lights
Input Voltage(V):
12v
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar 5050 smd led
Type LED Bar Lights
Input Voltage(V) 12v
Lamp Power 7.2
Lamp Luminous Flux(lm) R58/G162/B54
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ
Model Number SJ-10030-ICRGB

Specifications

1,voltage 12V, Power 7.2W/M
2, IC LPD6803 & WS2801
3, 30leds/m

smd5050 lpd6803 pixel led light bar, 2years'warranty

Feature:

1. There are two type of this bar string, one is controlled by IC LPD6803, a LPD6803 control 3leds.Another one is controlled by WS2801, a ws2801 control 1 led.

2. Each LED bar is made by Aluminum for heat dissipation to ensure an efficient,long life and bright LED.

3. Each Led bar is supplied with an input and output cable. The input cable can be connected to a 12V power supply or another led bar, the output cable can connect with another led bar or remove to end the circuit.

4.Additional extension cables can be plugged into the circuit for installations that require longer cabling between components of the circuit.



Specification:



LED Type/brand         SMD5050 Grade A(top qualilty)
LED Quantity 30/m
Energy Rating A

LED Power Consumption

 7.2W/m

Input Voltage

 12 V DC

Colour

  Dream color(ICRGB)

Beam angle

  140°

Operating Temp

 -40°c-60 °c
IC Chip LPD6803
Average life  50,000 hours
color dream color
Dimension 1000mm(L)*14mm(W)*10mm(H)
waterproof rate  IP65
Warranty   2 years
Certificates CE&RoHS

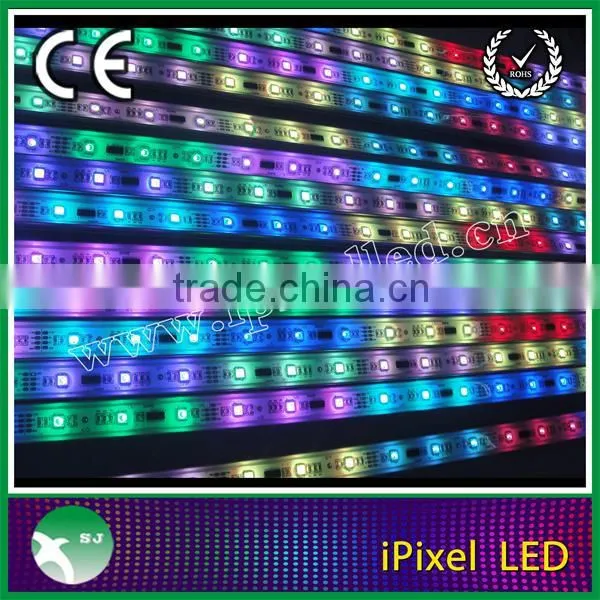

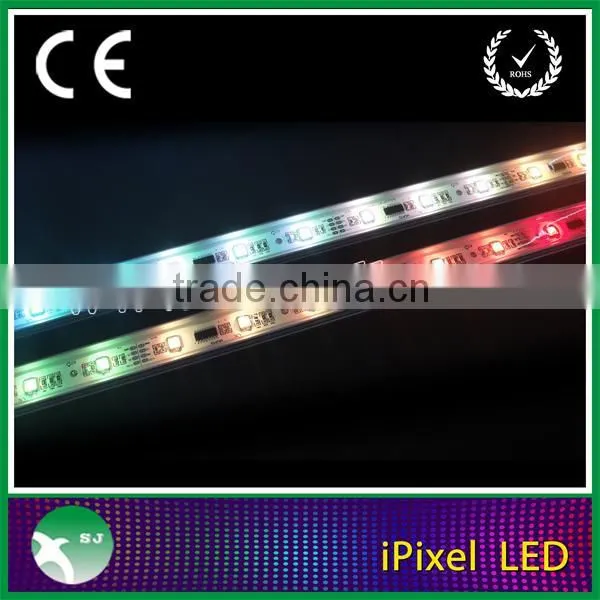

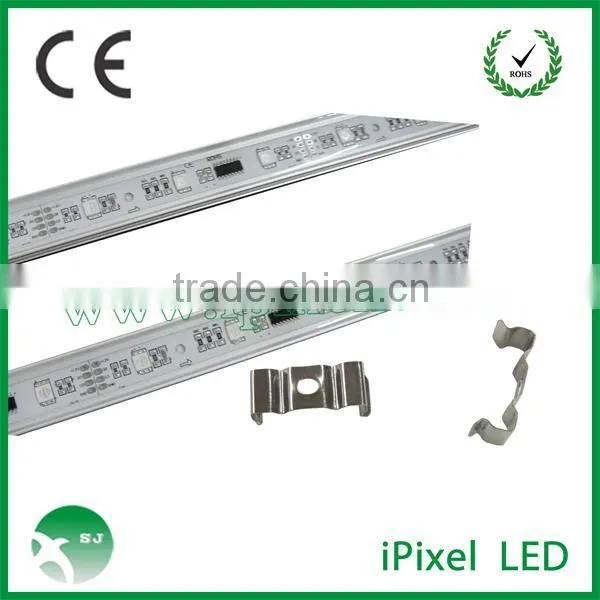

Product images:



 LPD6803 digital led barLPD6803 digital led barLPD6803 digital led barLPD6803 digital led barLPD6803 digital led bar



LPD6803 digital led barLPD6803 digital led bar

Applications:

1.The excellent light and user-friendly designs make LED strip perfect for numerous applications, such as back lights, cabinet lights, edge light, for corridor, canopy, archway, lights for path and contour marking; etc.
2.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops,  beauty centers, lights etc



Features and Benefits:
1.Control  IC  included,  supporting  numerous ,color-change effects;
2.Aluminum Shell;

3. Pure fiber material Rigid PCB, 12V low voltage input;
4.Every 3 Leds linear separable, custom-length available;
5.Control by SD card controller,DMX512 System,
6.Extremely long lifespan & lower power consumption
