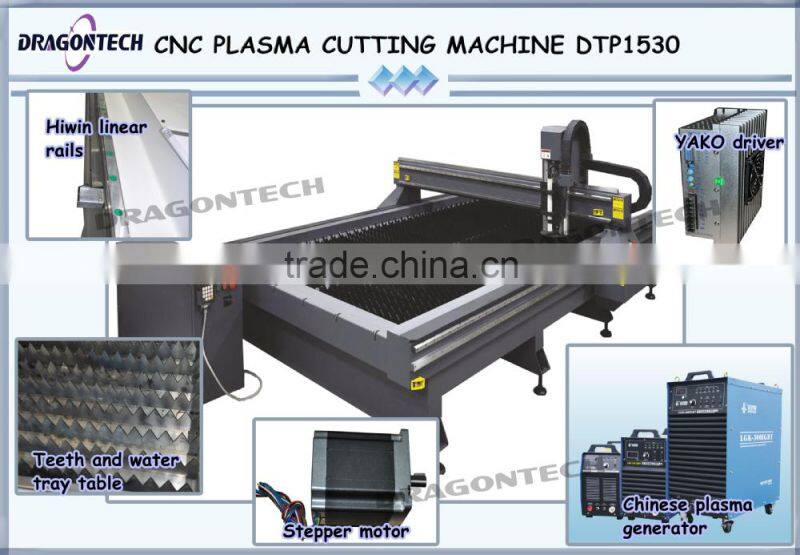

large best selling plasma cutting machine made in china DTP1530
Parameter:
| No. | Description | DTP1530 |
| 1 | Working size | 1500*3000mm |
| 2 | Z axis clearance | 100mm |
| 3 | Table | Teeth and water tray table |
| 4 | Transmission system | Rack pinions and Hiwin linear rails for X,Y |
| 5 | Driving system | stepper |
| 6 | Max. cutting speed | 12000mm/min |
| 7 | Max. travelling speed | 20000mm/min |
| 8 | Working voltage | 380V/3Ph |
| 9 | Plasma generator | Cutmaster (USA)/ Chinese HUAYUAN/ Hypertherm (USA) |
| 10 | Arc mode | Non-contact arc, Arc pressure ajustor |
| 11 | Output current | 120A (200A, 300A) |
| 12 | Max. cutting thickness | 15mm (25mm, 35mm) |
| 13 | Max. drilling thichness | 20mm (32mm, 40mm) |
| 14 | Control system | DSP |
| 15 | Working material | Steel, Aluminum, Galvanized sheet, Titanium plate, Platinum plate |

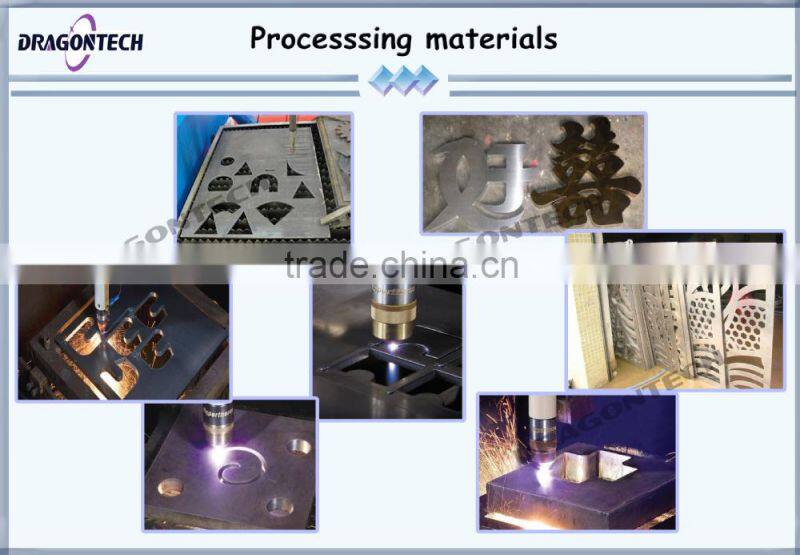

Applications:
CNC Plasma Cutting Machine can cut all kinds of metal materials such as bronze, brass, steel , copper, aluminum, expanded metal, and stainless steel.
It is widely used in automotive fabrication, construction, manufacturing, sign shops, metal fabrication, all kinds of machinery, manufacture of metal structure, installation and maintenance and bevel cutting for middle thickness and thin plate materials.
Options:
Working size: different working size matching your requirements
Driving system: stepper system, Panasonic/Yaskawa/Delta system
Control system: DSP, Start Shaphone with automatic heigth adjustor

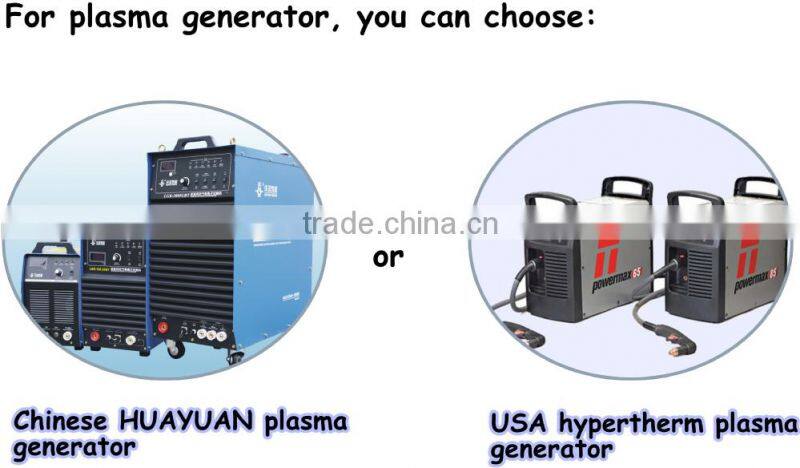

Plasma generator: Thermal Dynamics(USA) with different output current, Chinese plasma generator, Hypertherm(USA)
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
Jinan DragonTech Co. is a professional CNC Router manufacturer which focuses on producing high quality precision machines. Our company’s mission is to produce best machines and supply best services for our customers.
Our main products include DT series of CNC Routers for woodworking, advertising, stone engraving, mould making, metal cutting and the DT series of Plasma cutting machines. We also produce customized machines for our customers with special requirements.
We put the customers first and high quality is our obligation. Welcome to Visit our factory!
