Specifications
1.R16/G32/B13 lm per pixel2.IP66 waterproof rating
3.Three colors casing:clear,milky white,frosted
4.long lifespan 50000 hrs
26mm dmx led pixel light for video wall
Features:
1.Eco green,no UV &IR
2.Very Bright; up to 20 lumens per pixel
3.IP 66 protection rating
4.20PCS per string
5.Long life span of LED lights, 50,000 hours
6.RGB Color changing via controller
7.Easy setup and compact storage
8.voice sensitive,can change color following music
Specification:
| Color range | full color |
| led | 3pcs smd5050 rgb |
| view angle | ≥140 |
| light casing | transparent and semi-transpatent |
| consumption | 0.72W(All RGB on) |
| working voltage | 12VDC |
| Operating temp | -10-60°c |
| storage temp | -20-80°c |
| pixel diameter | 26mm |
| working humidity | 0-95% |
| Life of LED | More than 50,000 hours |
Product images:

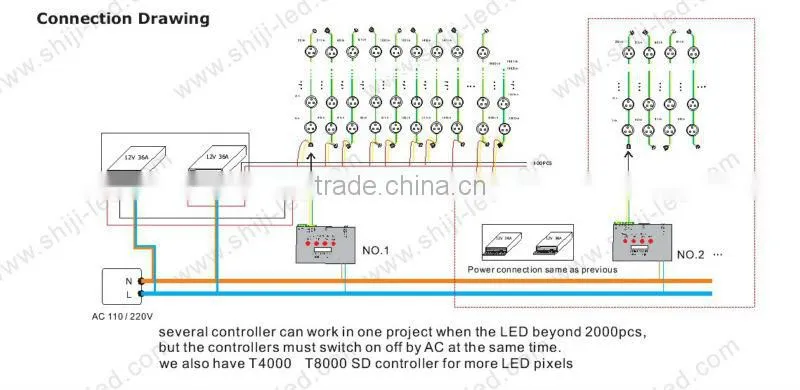

LED PIXEL LIGHT - Controller diagram (How it works!)
Each LED LIGHT PIXEL node can be given a separate address. This allows for any PIXEL node to change color at any time. Assembled in small plastic housing, each PIXEL node can be transparent or semi-transparent, dome or mirror encasing. The LIGHT PIXEL node are arrayed in an appropriate spacing along the 3 wire cable. Spacing can be customized according to a projects requirements. The LED LIGHT PIXEL can also be used with Ethernet control, or pre-programmed offline control.
Each LED PIXEL LIGHT chain can extend out to a maximum of 64 lights. The spacing between PIXEL lights can range from 2 meters or as close as required. It is recommended however, that the spacing be between 5 to 10 cm (2-4 inches) for video.
Applications:
- Video walls
- Concerts and Entertainment industry.
- Perimeter building lighting
- Indoors & outdoors use
- Exhibitions and trade shows
- LED curtain display
Waranty:
1.All products we sell are in good quality and under examination before they are shipped out.
