Rgb Led Pixel Light 50 Pcs /string With Pitch 8cm Dc 5V

Rgb Led Pixel Light 50 Pcs /string With Pitch 8cm Dc 5V thumbnail-1
Rgb Led Pixel Light 50 Pcs /string With Pitch 8cm Dc 5V photo-1
US$ 0.1 - 1 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
epistar
Input Voltage(V):
DC
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar
Input Voltage(V) DC
Lamp Power 0.3
Lamp Luminous Flux(lm) 3-7
Lamp Luminous Efficiency(lm/w) 15
Color Temperature(CCT) Warm White
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP67
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name sj
Model Number sj-1515-ICRGB

Specifications

1 ws2801 chip
2 CE& ROHS
3 factory direct price
4 Matrix ,artnet ,arduino compatible
5 2 years warranty

led pixel light ws2801



description:

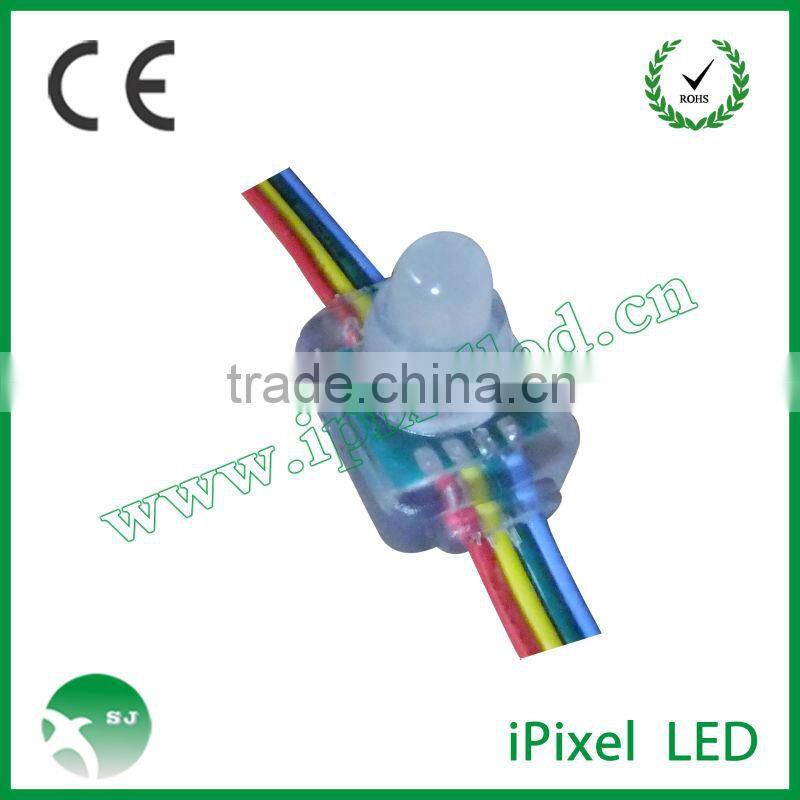

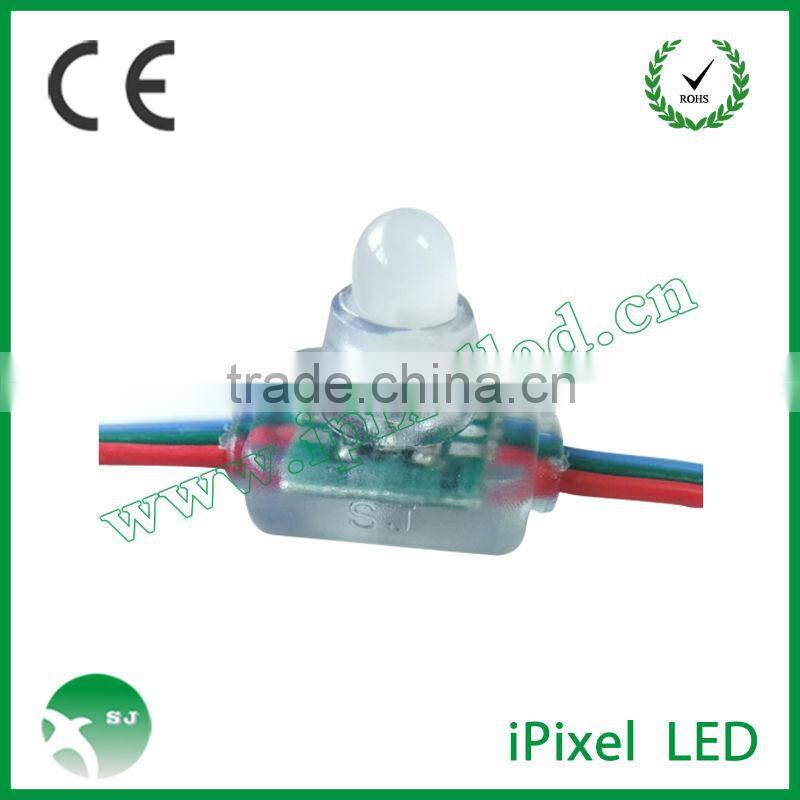

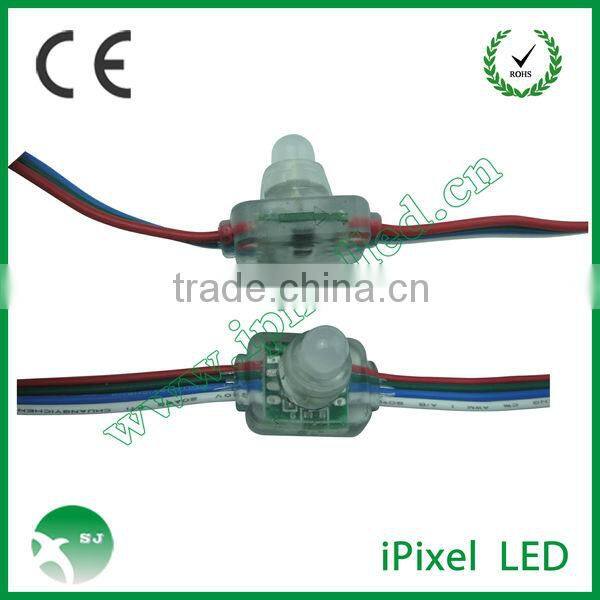

12mm 5V WS2801 Square RGB LED Digital Pixel Light

These are the 12mm square Digital Pixels moduels that can be controlled with computers and other DMX/Digital Controllers or stand alone SPI Controllers. The advantage of digital pixels are that you can control each module by itself so you can make chasing effects and other patterns. These color changing LED modules are very easy to use and install.

You can order them by the piece or connected togeather. They run on 5V DC. They are potted with a waterproof epoxy and have a semi clear lens, they can be exposed to weather.  ~ they are very easy to work with!

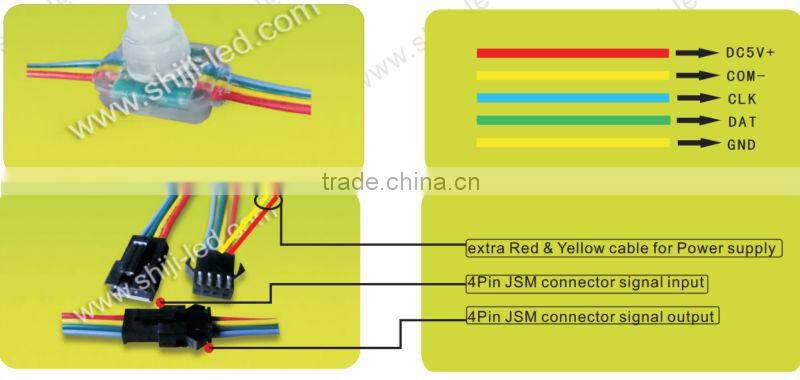

Connections Input/Output :  Red = 5v (+), Green = CLK, Blue = Data, Yellow/ White = 5v (-)

....Here is a link on youtube used the arduino rgb square 12mm ws2801 led pixel light   .

/watch?v=yya_IB6S-Ko



Details / Options

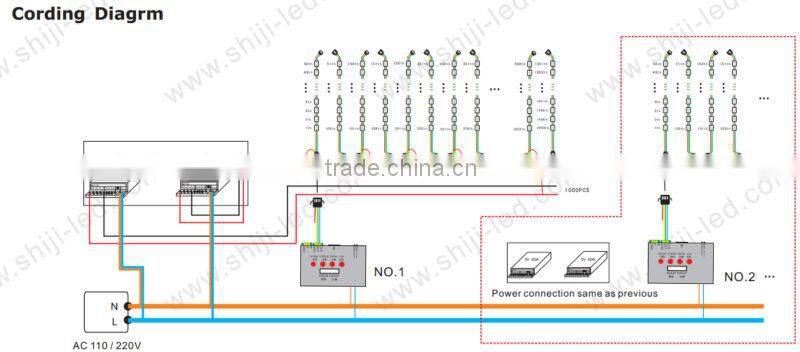

~~These RGB modules can change any color with the use of a SD Card Controller Or With DMX to 2801 Converter. you will need a SD Card Controller designed to control the WS2801 chip or use DMX and a DMX to WS2801/WS2803 Converter.



Features:



Item Type RGB ws2801 Led pixel light string
Model No. SJ-1515ICRGB
IC Chip WS2801
IP Rate IP66
Diameter 12mm
Controller SD,DMX512,Arduino
Packing 50pcs/string or customized



Applications:



1.  lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.


2. They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Images:











 rgb led pixel light 50 pcs /string with pitch 8cm Dc 5Vrgb led pixel light 50 pcs /string with pitch 8cm Dc 5Vrgb led pixel light 50 pcs /string with pitch 8cm Dc 5V



the   project

 rgb led pixel light 50 pcs /string with pitch 8cm Dc 5V













 HOw we packing?











Thanks for attention
