W11S 3 Roller Hydraulic Plate Rolling Machine With Prebending and Competive Price
US$ 83,600 - 99,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ZHONGWEI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W11S Metal Rolling Machine With Prebending and Competive PriceUS$ 153,000 - 169,000MOQ: 1 Set -
W11S Upper Roller Universal Plate Bending Machine With Prebending and Competive PriceUS$ 66,000 - 89,500MOQ: 1 Set
-
W11S 3-roll Pipe Bending Machine With Prebending and Competive PriceUS$ 169,200 - 186,000MOQ: 1 Set
-
W11S Pipe Roller Bending Machine With Prebending and Competive PriceUS$ 790,000 - 860,000MOQ: 1 Set
-
W11S 4-roller Plate Bending Machine With Prebending and Competive PriceUS$ 289,000 - 295,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
ZHONGWEI
Model Number
W11S 40x3000
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Automatic
Extra Services
End Forming
Certification
ISO 9001:2000
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
W11S 3 roller hydraulic plate rolling machine1.PLC Control
2.With prebending
3.U,Cone rolling
4.Easy to opera

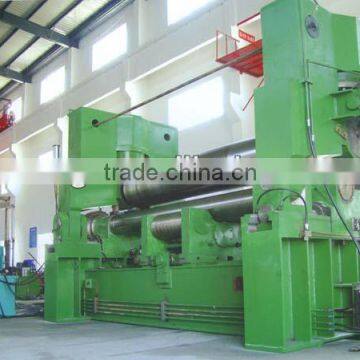

W11S 3 roller hydraulic plate rolling machine
W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high rolling precision, no need to use any subsidiary equipment, less investment.
This machine is hydraulic three rollers machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal temperature.
The upper roller can be moved horizontal and level.
When cycle, to bring two lower rollers running through motor and reducer.
Because the standard height of lower roller is unchanged, it is convenience to feeding and operating.
| Model | Max.rolling thickness |
Max.pre-rolling thickness |
PlateWidth | Diameter of upper roller |
Main motor power |
| (mm) | (mm) | (mm) | (mm) | (kw) | |
| W11STNC-12x2000 | 12 | 10 | 2000 | 240 | 5.5 |
| W11STNC-16x2000 | 16 | 12 | 2000 | 260 | 7.5 |
| W11STNC-16x2500 | 16 | 12 | 2500 | 300 | 15 |
| W11STNC-18x3000 | 18 | 14 | 3000 | 350 | 15 |
| W11STNC-20x3000 | 20 | 16 | 3000 | 375 | 22 |
| W11STNC-25x2500 | 25 | 20 | 2500 | 380 | 22 |
| W11STNC-30x2500 | 30 | 25 | 2500 | 410 | 30 |
| W11STNC-30x3000 | 30 | 25 | 3000 | 450 | 30 |
| W11STNC-32x3000 | 32 | 28 | 3000 | 480 | 37 |
| W11STNC-35x2500 | 35 | 30 | 2500 | 460 | 37 |
| W11STNC-35x3000 | 35 | 30 | 3000 | 510 | 37 |
| W11STNC-40x2500 | 40 | 35 | 2500 | 500 | 45 |
| W11STNC-40x3000 | 40 | 35 | 3000 | 540 | 55 |
| W11STNC-40x4000 | 40 | 32 | 4000 | 630 | 55 |
| W11STNC-45x3000 | 45 | 40 | 3000 | 560 | 55 |
| W11STNC-45x4000 | 45 | 40 | 4000 | 610 | 75 |
| W11STNC-50x4000 | 50 | 45 | 4000 | 680 | 75 |
| W11STNC-55x3000 | 55 | 45 | 3000 | 600 | 75 |
| W11STNC-55x4000 | 55 | 50 | 4000 | 730 | 90 |
| W11STNC-60x3000 | 60 | 50 | 3000 | 650 | 75 |
| W11STNC-60x4000 | 60 | 55 | 4000 | 750 | 90 |
| W11STNC-65x4000 | 65 | 60 | 4000 | 780 | 90 |
| W11STNC-70x3000 | 70 | 60 | 3000 | 680 | 75 |
| W11STNC-70x4000 | 70 | 65 | 4000 | 810 | 90 |
| W11STNC-75x3000 | 75 | 65 | 3000 | 720 | 90 |
| W11STNC-80x3000 | 80 | 70 | 3000 | 770 | 90 |
| W11STNC-80x4000 | 80 | 75 | 4000 | 860 | 90 |
| W11STNC-90x3000 | 90 | 80 | 3000 | 780 | 90 |
| W11STNC-100x3000 | 100 | 90 | 3000 | 840 | 90 |
| W11STNC-100x4000 | 100 | 85 | 4000 | 940 | 110 |
| W11STNC-110x4000 | 110 | 95 | 4000 | 960 | 110 |
| W11STNC-120x3000 | 120 | 100 | 3000 | 960 | 90 |
| W11STNC-130x3000 | 130 | 110 | 3000 | 980 | 110 |
| W11STNC-150x3000 | 150 | 120 | 3000 | 990 | 2x75 |
| W11STNC-160x3000 | 160 | 130 | 4000 | 1260 | 2x90 |
