Specifications

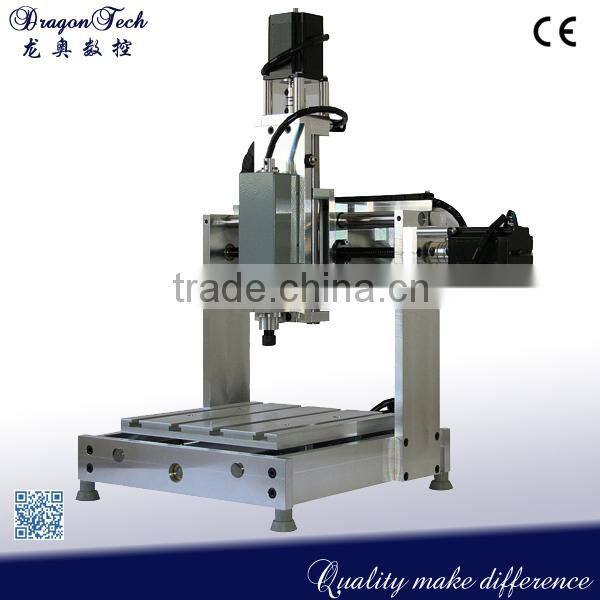

mini cnc 3040 router,CNC Router for Advertising DT0404M,desktop metal routerPanasonic servo system
water cooling spindle
mini cnc 3040 router ,CNC Router for Advertising DT0404M, desktop metal router
Applications:
Construction models, Artistic 3D design Brass and Aluminum cutting or engraving. Prototype engraving, PCB holder and making tags.
Descriptions:
No. |
|
Description |
|
DT0404M |
1 |
|
X,Y,Z working size |
|
400*400*200mm |
2 |
|
Working table |
|
Aluminum table |
3 |
|
Lathe structure |
|
Welding steel tube frame |
4 |
|
Transmission system |
|
Ball screw and Hiwin linear rails for X/Z; Table moving system for Y |
5 |
|
Driving system |
|
Panasonic servo systerm |
6 |
|
Repositioning accuracy |
|
±0.02mm |
7 |
|
Max. travelling speed |
|
8000mm/min |
8 |
|
Max. working speed |
|
3000mm/min |
9 |
|
Spindle and collet |
|
1.5kw water cooling spindle, ER16 |
10 |
|
Spindle speed |
|
0-24000RPM |
11 |
|
Working voltage |
|
AC220V/1ph |
12 |
|
Max. consume power |
|
5.5kw |
13 |
|
Operating system |
|
Ncstudio |
14 |
|
Command code |
|
G code(*uoo, *nc, *mmg, *plt) |
Options:
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta, Fuling
Control system: DSP, Weihong NK102, Mach3
Rails: shaft rails or Hiwin rails for X/Y/Z
Can equip rotating axis and lubricating system
P.S.
All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on
Youtube link:
http://youtu.be/XqXA4LFsSWg //EPS engraving
http://youtu.be/R5tdVQhK7XY //Acrylic engraving
http://youtu.be/gFFCp_tUApU //DT1212-400 working
http://youtu.be/vpio8Xq_BrQ //Glass engraving
http://youtu.be/7jcLZQuQN6E //Plasma cutting
http://youtu.be/5_cfe1K9QmE //rotating axes *8
http://youtu.be/z9PSrnx8vKA //Stone engraving
http://youtu.be/C_df6-F6Xvk //Stone working
http://youtu.be/OEUzbA0RDKE //Melamine board cutting
http://youtu.be/A2-AO_WknL0 //Carousel magazine working
http://youtu.be/teGDfj9iWXk //Rotating axis working
Panasonic servo system:
spindle:
NcStudio operating system:
other parts:
other machines:
sample:
