Specifications
cnc metal milling, 3d metal cnc machine,CNC Router engraving machine DTG0609Chinese spindle
stepper motor and driver

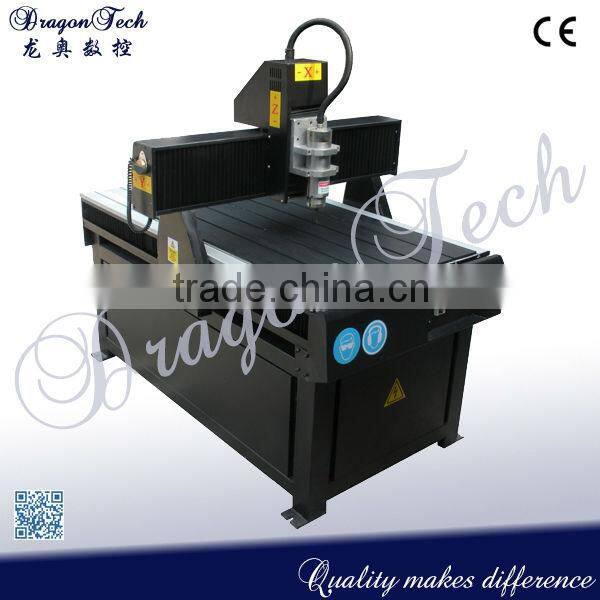

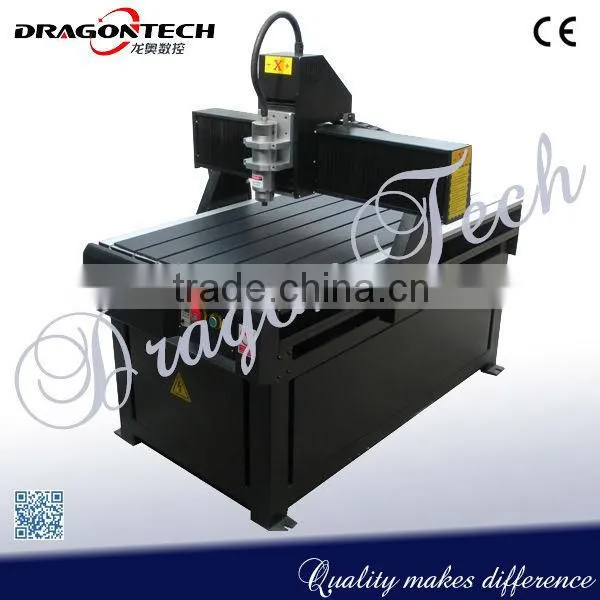

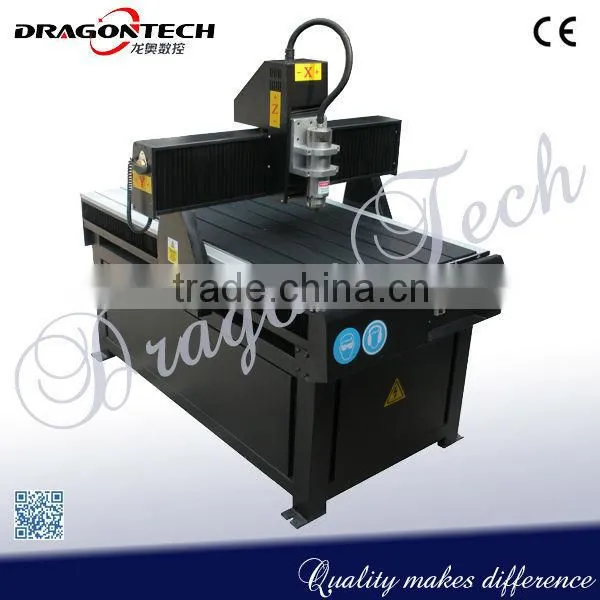

cnc metal milling, 3d metal cnc machine,CNC Router engraving machine DTG0609
Applictions:
Dragontech stone CNC Router is proffessional for tombstone, door frame, pillar, fireplace, table, summerhouse profing and so on. High precision and high speed.
Descriptions:
No. |
|
Description |
|
DTG0609 |
1 |
|
X,Y,Z working size |
|
600*900*200mm |
2 |
|
Working table |
|
PVC and T-slot aluminum table, water tray |
3 |
|
Gantry |
|
Cast aluminum |
4 |
|
Lathe structure |
|
Welding steel tube frame |
5 |
|
Transmission system |
|
Ball screw and HIWIN linear Rails for X/Y/Z |
6 |
|
Driving system |
|
Stepper motor and drivers |
7 |
|
Repositioning accuracy |
|
±0.02mm |
8 |
|
Max. travelling speed |
|
6000mm/min |
9 |
|
Max. working speed |
|
3000mm/min |
10 |
|
Spindle and collet |
|
2.2kw chinese spindle |
11 |
|
Spindle speed |
|
0-24000RPM |
12 |
|
Working voltage |
|
AC220V/1ph |
13 |
|
Max. consume power |
|
3.5kw |
14 |
|

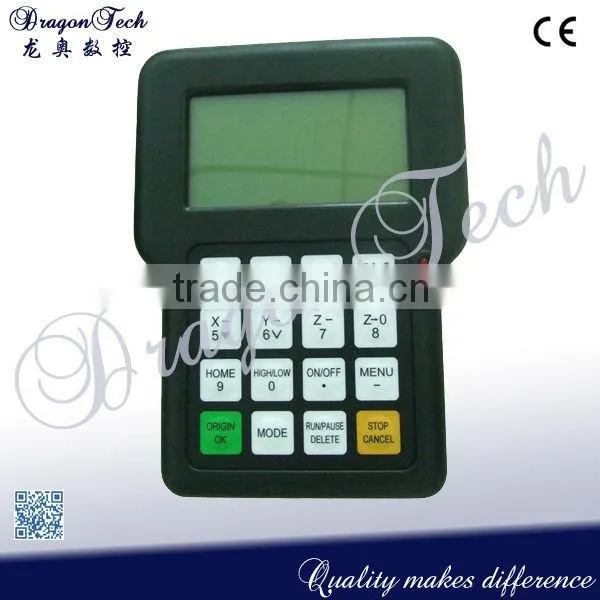

Operating system |
|
DSP system |
15 |
|
Command code |
|
G code(*uoo, *nc, *mmg, *plt) |
Options:
Driving systern: stepper systerm, Panasonic/Yaskawa servo systerm
Spindle:HSD, Colobo, Chinese GS/GDZ/HQD spindle
Inverter: Delta, Fuling
Control systerm: DSP, Mach3, Ncstudio, Syntec
Can equip rotating axis, lubricating systerm, mist cooling systerm and so on
P.S.
All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on
