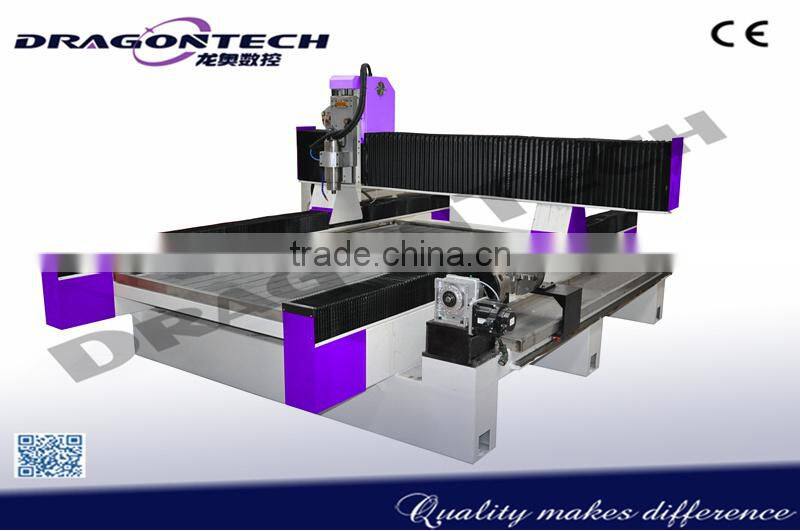

cnc router for wood door hinge making,marble carving cnc machine italy,stone router 3d stone carving cnc routersDTS1325
Applications:
Dragon Tech stone CNC Router is professional for tombstone, door frame, pillar, fireplace, summerhouse profiling and so on. High precision and high speed.
Options:
Diving system:stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter,Fuling inverter
Control system: DSP, Syntec, Mach3, Ncstudio
Can equipe rotating axis, liubricating system, mist cooling system, and so on.
NO. |
|
Description |
|
="top"> DTS1325 |
1 |
|
X,Y,Z working size |
|
1300*2500*300mm |
2 |
|
Working table |
|
PVC and T-slot aluminum table, water tray |
3 |
|
Gantry |
|
Steel gantry |
4 |
|
Lathe structure |
|
Welding steel tube frame |
5 |
|
Transmission system |
|
Ball screw and HIWIN linear Rails for X/Y/Z |
6 |
|
Driving system |
|
Stepper motor and drivers |
7 |
|
Repositioning accuracy |
|
±0.05mm |
8 |
|
Max. travelling speed |
|
20000mm/min |
9 |
|
Max. working speed |
|
3000mm/min |
10 |
|
Spindle and collet |
|
4.5kw water cooling spindle |
11 |
|
Spindle speed |
|
0-24000RPM |
12 |
|
Working voltage |
|
AC380V/3ph |
13 |
|
Max. consume power |
|
8.5kw |
14 |
|
Operating system |
|
DSP system |
15 |
|
Command code |
|
G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
