Specifications
art cnc router DTS1325 CNC ROUTER for STONE, CNC Engraving machine for Stone,Strong Latheart cnc router DTS1325
Applications:
Dragon Tech stone CNC Router is professional for tombstone, door frame, pillar, fireplace, summerhouse profiling and so on. High precision and high speed.
Options:
Diving system:stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter,Fuling inverter
Control system: DSP, Syntec, Mach3, Ncstudio
Can equipe rotating axis, liubricating system, mist cooling system, and so on.
NO. |
| Description |
| ="top"> DTS1325 |
1 |
| X,Y,Z working size |
| 1300*2500*300mm |
2 |
| Working table |
| PVC and T-slot aluminum table, water tray |
3 |
| Gantry |
| Steel gantry |
4 |
| Lathe structure |
| Welding steel tube frame |
5 |
| Transmission system |
| Ball screw and HIWIN linear Rails for X/Y/Z |
6 |
| Driving system |

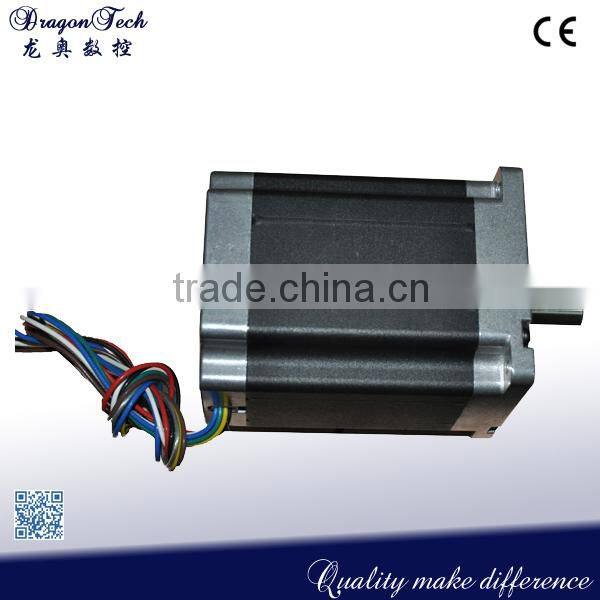

| Stepper motor and drivers |
7 |
| Repositioning accuracy |
| ±0.03mm |
8 |
| Max. travelling speed |
| 20000mm/min |
9 |
| Max. working speed |
| 3000mm/min |
10 |
| Spindle and collet |
| 4.5kw HSD spindle |
11 |
| Spindle speed |
| 0-18000RPM |
12 |
| Working voltage |
| AC380V/3ph |
13 |
| Max. consume power |
| 8.5kw |
14 |
| Operating system |
| DSP system |
15 |
| Command code |
| G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
