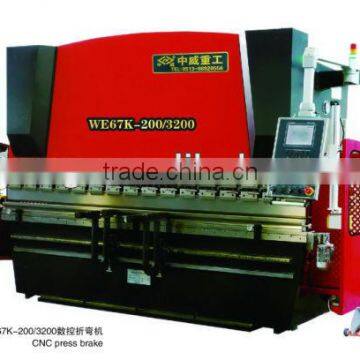

WE67K-200/3200 Hydraulic press brake
- 50 Set / Sets per Month
- shanghai
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Zhongwei |
Model Number: | WE67K-200/3200 | Machine Type: | Press Brake | Raw Material: | Steel Bar |
Material / Metal Processed: | Other, general plate | Power: | Hydraulic | Automation: | Automatic |
Certification: | ISO 9001:2000 |
Product Description
Specifications
This machine is with good quality and best price, we can supply you with best serviceThe main feature and use of the machine
1. It adopts mainframe of the bending machine produced by Holland Delem DA52W and electro-hydraulic proportional servo valves produced by Germany Bosch , ,operating security , high accuracy. The "closed-loop" classification control system is made up of ruler , Electric-Hydraulic ratio , regulex used in valve .It analysis and control programs the relative position of the slider and workbench, synchro accuracy exactly .It makes slider synchronous operation .And it ensures good bending strength and precision.-
2. It adopts welded-steel plate construction ,so eliminate stress by vibration ageing.
3.The machine tool is made up of rack ,table ,slider , master cylinder and rear stopper .The completely design and manufacturing process ,can ensure the manufacture and the operational precision of the tool .
4.Slide action design , ensures work stability ,safety ,and convenience .
5.The rack ,slider, table and the main parts of the machine tool are all processed by CNC boring miller .It ensures the requirement of the precision .
6.The lead rail adopts advanced self-lubricating material .No need to lubricating maintenance.
7.The rigidity design of working table, vertical columns, beam, and slide are very high, the shape of the working piece is performance.
8.Slide has the function of pressure protection and delay, to make sure the accuracy of the working piece.
Main technical data
Art | Item | Value | Unit | Mark |
1 | Nominal pressure | 2000 | kN |
|
2 | Working table length | 3200 | mm |
|
3 | Vertical columns distance | 2440 | mm |
|
4 | Slide stroke | 200 | mm |
|
5 | Max. open height between slides | 460 | mm |
|
6 | Throat depth | 320 | mm |
|
7 | System pressure | 600 | MPa |
|
8 | Driving speed | 60 | mm/s |
|
9 | Working speed | 7 | mm/s |
|
10 | Return speed | 60 | mm/s |
|
11 | Main motor power | 15 | KW |
|
12 | Controll axies number | 3+1 | axies | Y1,Y2,X ,V |
13 | CNC system | DA52W | set | Holland Delem |
