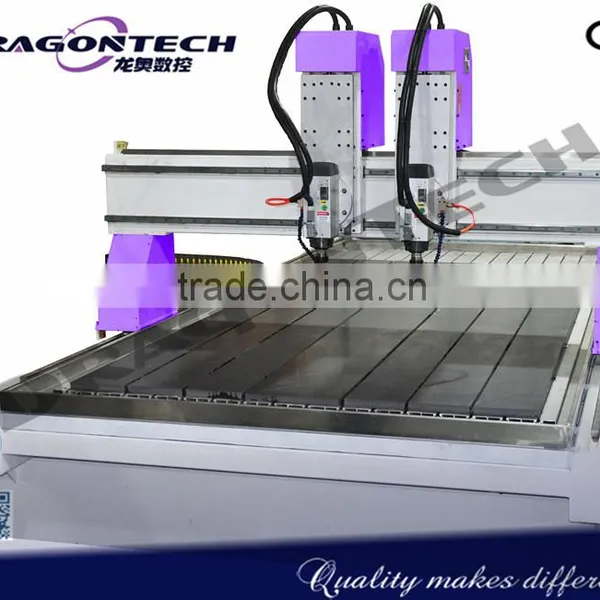

CNC Router/CNC Router for Marble Engraving 1530
Parameters:
No. |
Description |
DTS1530 |
1 |
X,Y,Z working size |
1500*3000*300mm |
2 |
Working table |
PVC and T-slot vacuum table |
3 |
Gantry |
Steel gantry |
4 |
Lathe structure |
Welding steel tube frame(8mm) |
5 |
Transmission system |
Rack pinion for X/Y, Ball screw for Z |
6 |
Working mode |
Stepper motor and YAKO driver |
7 |
Repositioning accuracy |
±0.03mm |
8 |
Max. travelling speed |
32m/min |
9 |
Max. working speed |
20m/min |
10 |
Spindle and collet |
4.5kw HSD spindle, ER25 |
11 |
Spindle speed |
0-18000RPM |
12 |
Working voltage |
AC380V/3ph or AC220V/1Ph |
13 |
Operating system |
DSP |
14 |
Command code |
G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements, such as the motor (Panasonic or YASKAWA), control system(Syntec, DSP or Ncstudio), and the size of the t
able of the machine also can be customized and so on
Following are some samples made by this machine:
We have our own factory:
We pass CE Certification:
We have almost all kinds of machine: 3 axis, 4 axis and auto-feeding cnc routers. If you have your own demands, we also can make for you according to your request.
Contact information:
Skype:ivy.dragontech
Tel:86-183-0644-5018
QQ:1263208647
