5 Axis Cnc Lathe Machine for Sale in Dubai,EPS Processing Center DTE1825,styrofoam Cutting Machine,eps Cnc Router

FOB Price

US$ 1,000 - 45,000 / Set

1 Set(Min. Order)

Port QINGDAO PORT CHINA
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	DragonTech
Model Number	DTE1825	Voltage	380V/3Ph
Power(W)	19kw	Dimension(LWH)	18002500700mm
Weight	7t	Certification	CE
Warranty	12months	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

PALLET

Product Description

5 axis cnc lathe machine for sale in dubai ,EPS processing center DTE1825,styrofoam cutting machine, eps cnc router

Application:

Styrofoam CNC Router can work on wood, EPS and non-metallic carbon material, making automotive foam mold, wooden ship model aviation, trains and other wooden mold, carving 3D musica instrument, bumper, bonnet interior trim mold and aviation etc.

Description:

No.	Description	DTE1825
1	X,Y,Z working size	18002500700mm
2	Working table	PVC and T-slot aluminum table with 2 area
3	Gantry	Steel gantry
4	Lathe structure	Welding steel tube frame with cement filling
5	Transmission system	Rack pinion for X/Y, Ball screw for Z; HIWIN linear Rails for X/Y/Z
6	Driving system	YASKAWA servo system(3kw for X/Y, 3kw with the brake for Z, 850w for the 4^th axis and rotating axis)
7	Repositioning accuracy	±0.03mm
8	Max. travelling speed	50000mm/min
9	Max. working speed	30000mm/min

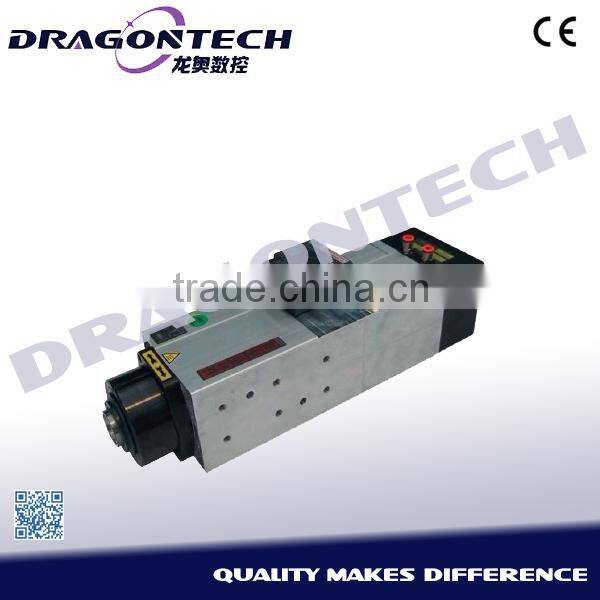

10	Spindle and collet	6kw HSD spindle, ER32
11	Spindle speed	0-18000RPM
12	Rotating axis	Dia.: 400mm
13	4th swiveling axis in spindle	±90 degree
14	Working voltage	380V/3ph
15	Max. consume power	19kw

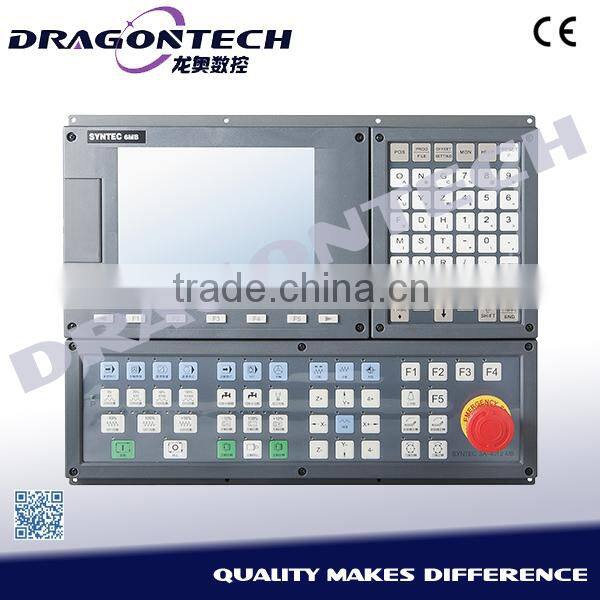

16	Operating system	Syntec
17	Command code	G code(uoo, nc, mmg, plt)

Options:

Driving systerm:Panasonic/Yaskawa/Delta servo systerm

Spindle: HSD,Colombo, Chinese GS/GDZ/HQD

Inverter: Delta inverter, Fuling inverter

P.S.

All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on

Youtube link:
http://youtu.be/XqXA4LFsSWg //EPS engraving
http://youtu.be/R5tdVQhK7XY //Acrylic engraving
http://youtu.be/gFFCp_tUApU //DT1212-400 working
http://youtu.be/vpio8Xq_BrQ //Glass engraving
http://youtu.be/7jcLZQuQN6E //Plasma cutting
http://youtu.be/5_cfe1K9QmE //rotating axes *8
http://youtu.be/z9PSrnx8vKA //Stone engraving
http://youtu.be/C_df6-F6Xvk //Stone working
http://youtu.be/OEUzbA0RDKE //Melamine board cutting
http://youtu.be/A2-AO_WknL0 //Carousel magazine working
http://youtu.be/teGDfj9iWXk //Rotating axis working
