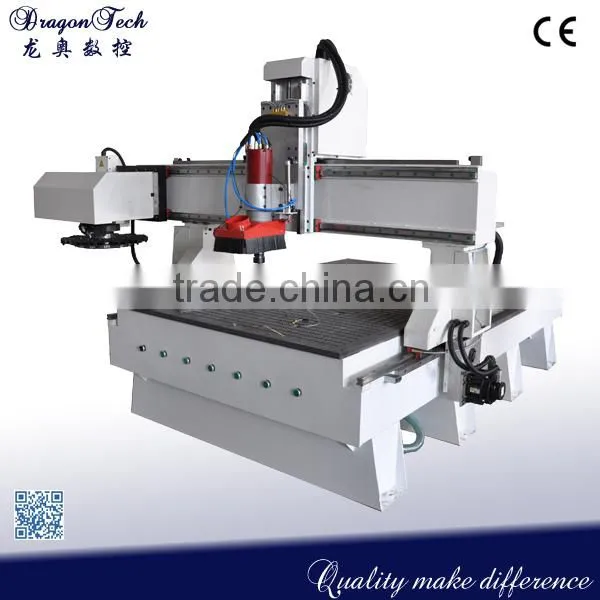

auto tool change cnc router for plastic ,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
Applications:
DragonTech ATC Router is suitable for hard woodworking, cutting and engraving on rosewood for furniture, indoor decoration, MDF and so on, with high speed and high precision.
Descriptions:
No. |
|
Description |
|
DT2040ATC |
1 |
|
X,Y,Z working size |
|
2000*4000*200mm |
2 |
|
Working table |
|
Vacuum and T-slot aluminum table |
3 |
|
Gantry |
|
Steel gantry |
4 |
|
Lathe structure |
|
Welding steel tube frame |
5 |
|
Transmission system |
|
Rack pinion for X/Y, Ball screw for Z; HIWIN linear Rails for X/Y/Z |
6 |
|
Working mode |
|
Panasonic servo systerm |
7 |
|
Repositioning accuracy |
|
±0.03mm |
8 |
|
Max. travelling speed |
|
50000mm/min |
9 |
|
Max. working speed |
|
25000mm/min |
10 |
|
Spindle and collet |
|
4.5kw Chinese GS spindle, ER32 |
11 |
|
Spindle speed |
|
0-24000RPM |
12 |
|
Working voltage |
|
AC380V/3ph |
13 |
|
Max. consume power |
|
13kw |
14 |
|
Operating system |
|
Syntec |
15 |
|
Command code |
|
G code(*uoo, *nc, *mmg, *plt) |
Options:
Driving system: stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta, Fuling
Control system: DSP, Mach3, Ncstudio, Syntec
Vacuum pump: Germany Becker pump, Chinese pump
Can equip rotating axis, lubricating system, mist cooling system and so on.
P.S.
All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on
Youtube link:
http://youtu.be/XqXA4LFsSWg //EPS engraving
http://youtu.be/R5tdVQhK7XY //Acrylic engraving
http://youtu.be/gFFCp_tUApU //DT1212-400 working
http://youtu.be/vpio8Xq_BrQ //Glass engraving
http://youtu.be/7jcLZQuQN6E //Plasma cutting
http://youtu.be/5_cfe1K9QmE //rotating axes *8
http://youtu.be/z9PSrnx8vKA //Stone engraving
http://youtu.be/C_df6-F6Xvk //Stone working
http://youtu.be/OEUzbA0RDKE //Melamine board cutting
http://youtu.be/A2-AO_WknL0 //Carousel magazine working
http://youtu.be/teGDfj9iWXk //Rotating axis working
table:
Panasonic servo system:
HSD spindle:
Syntec control system:
other parts:
other machines:
samples:
