Woodworking Cnc Atc,cnc Router With Atc,auto Tool Changer Cnc Router DT2060ATC
- Qingdao port China
- T/T Money Gram
You May Like
-
Woodworking Cnc Router With Vacuum Hold Down,auto Tool Changer Cnc Router,act Woodworking Mahcine DT2040ATC
-
Atc Cnc Wood Router Machine,cnc Router With Atc,auto Tool Changer Cnc Router DT2060ATC
-
Cnc Router Machine in Taiwan, Cnc Wood Carving Machine, Cnc Engravig Machine for Woodworking DT2060ATC
-
Atc Cnc Wood Router,auto Tool Changer Cnc Router,act Woodworking Mahcine DT2040ATC
-
Woodwork Router,auto Tool Changer Cnc Router,act Woodworking Mahcine DT2040ATC
-
Syntec Control System Cnc Router, Woodworking Atc Cnc Router,act Woodworking Machine DT1325ATC
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | DragonTech | |
| Model Number | DT2060ATC | Voltage | 380V/3ph | |
| Power(W) | 13kw | Dimension(L*W*H) | 2000*6000*200mm | |
| Weight | 3500KG | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
In wooden case
Product Description
Specifications
woodworking cnc atc DT2060ATCCE Standard
Woodworking ATC machine
High quality CNC Router for woodworki
woodworking cnc atc DT2060ATC
Applications:
Dragon Tech ATC CNC Router is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF, and so on, with high speed and high precision.
Options:
Diving system:stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter,Fuling inverter
Control system: DSP, Mach3, Ncstudio, Syntec
Vacuum pump: Germany Becker pump, Chinese pump
Can equip rotating axis, lubricating system, mist cooling system and so on.
No. |
| Description |
| DT2060ATC |
1 |
| X,Y,Z working size |
| 2000*6000*200mm |
2 |
| Working table |
| Vacuum and T-slot aluminum |
3 |
| Gantry |
| Steel gantry |
4 |
| Lathe structure |
| Welding steel tube frame |
5 |
| Transmission system |
| Rack pinion for X/Y, Ball screw for Z; HIWIN linear Rails for X/Y/Z |
6 |
| Driving system |
| Panasonic servo system |
7 |
| Repositioning accuracy |
| ±0.03mm |
8 |
| Max. travelling speed |
| 50000mm/min |
9 |
| Max. working speed |
| 25000mm/min |
10 |

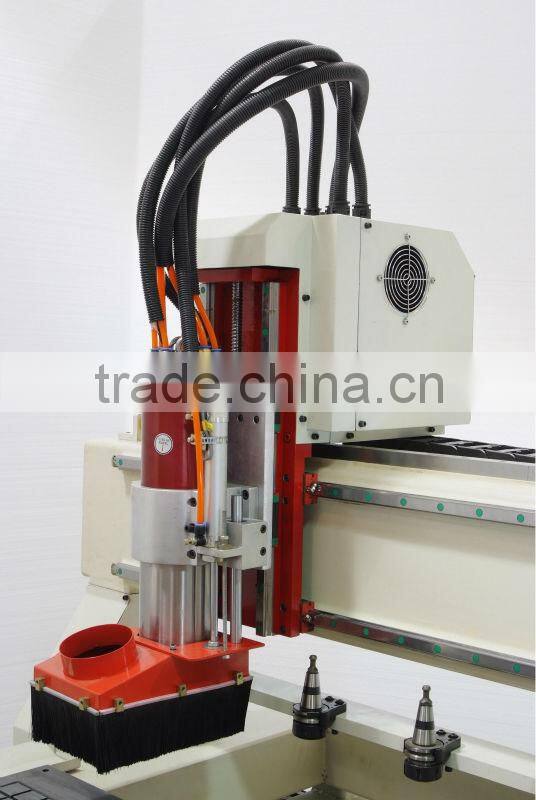

| Spindle and collet |
| 9kw HSD spindle,ER32 |
11 |
| Spindle speed |
| 0-24000RPM |
12 |
| Working voltage |
| AC380V/3ph |
13 |
| Max. consume power |
| 13kw |
14 |
| Operating system |
| Syntec |
15 |
| Command code |
| G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
Company Profile
Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets. We hope to establish long-term business relationships with all customers and enjoy the benefits together.
