woodwork router machine,CNC cutting equipment DT2040ATC,cnc router center
- 80 Set / Sets per Month
- Qingdao port China
- T/T
- woodwork router machine,CNC cutting equipment DT2040ATC,cnc router for woodworking
- automated wood router,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
- atc wood cnc router price,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
- atc cnc woodworking machine,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
- carver,cnc router sign vacuum,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
- cnc machine for mold making,cnc router for acrylic&wood&plastic&metal&stone&mdf&plywood DT2040ATC
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DragonTech | Model Number: | DT2040ATC | Voltage: | AC380V/3Ph |
Power(W): | 13kw | Dimension(L*W*H): | 2000*4000*200mm | Weight: | 2.2t |
Certification: | CE | Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
In wooden case
Product Description
woodwork router machine,CNC cutting equipment DT2040ATC,cnc router center
Applications:
DragonTech ATC Router is suitable for hard woodworking, cutting and engraving on rosewood for furniture, indoor decoration, MDF and so on, with high speed and high precision.
Parameters:
NO. | Description | Parameter |
1 | X, Y, Z working size | 2000x4000x200mm |
2 | Lathe structure | Welding Steel Frame |
3 | X Y structure | Rack pinion, HIWIN linear Rails |
4 | Z structure | Ball screw, HIWIN linear Rails |
5 | Max. speed | 50000mm/min |
6 | Max. working speed | 30000mm/min |
7 | Spindle | 4.5Kw Chinese ATC Spindle |
8 | Spindle speed | 0-24000RPM |
9 | Working mode | Panasonic Servo System (option: Yaskawa) |
10 | Working table | T-slot vacuum table (option: vacuum table) |
11 | Working voltage | AC380V/3Phase |
12 | Operating system | Syntec/ Mach3/ Ncstudio/ |
13 | Software | Type3 |
Specifications:
1. The lathe structure is hard steel frame, reliable, high precision, durable.
2. Taiwan ball screw ensures the high precision of the machine.
3. The machine adopts Taiwian Hiwin linear rails with high quality wich promises the reliable of X,Y,Z.
4. HSD 9kw air cooling spindle, high precision, steady.
5. Syntec control system.
6. Japanese Panasonic servo, high speed and much more power.
7. Lubrication for X, Y, Z.

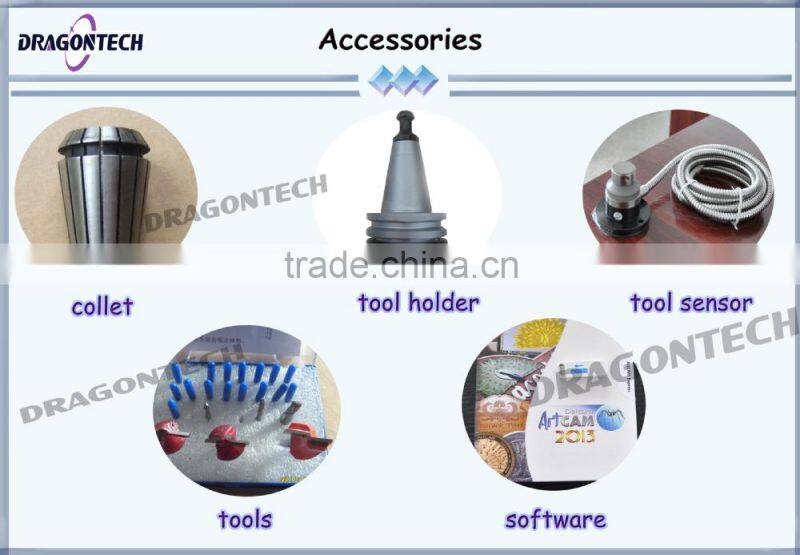

Options:
1. Spindle: Colombo spindle, chinese GS spindle
2. Gantry: aluminum gantry and steel gantry
3. Control system: Mach3 system, Ncstudio system
4. Motor:Yaskawa servo motor
5.Inverter: Yaskawa, Panasonic
6. Mist cooling system
7. Vacuum pump: Germany Becker pump, chinese copy Becker pump
P.S.
All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on
Jinan DragonTech Co. is a professional CNC Router manufacturer which focuses on producing high quality precision machines. Our company’s mission is to produce best machines and supply best services for our customers
Our main products include DT series of CNC Routers for woodworking, advertising, stone engraving, mould making, metal cutting and the DT series of Plasma cutting machines. We also produce customized machines for our customers with special requirements.
We put the customers first and high quality is our obligation. Welcome to Visit our factory!

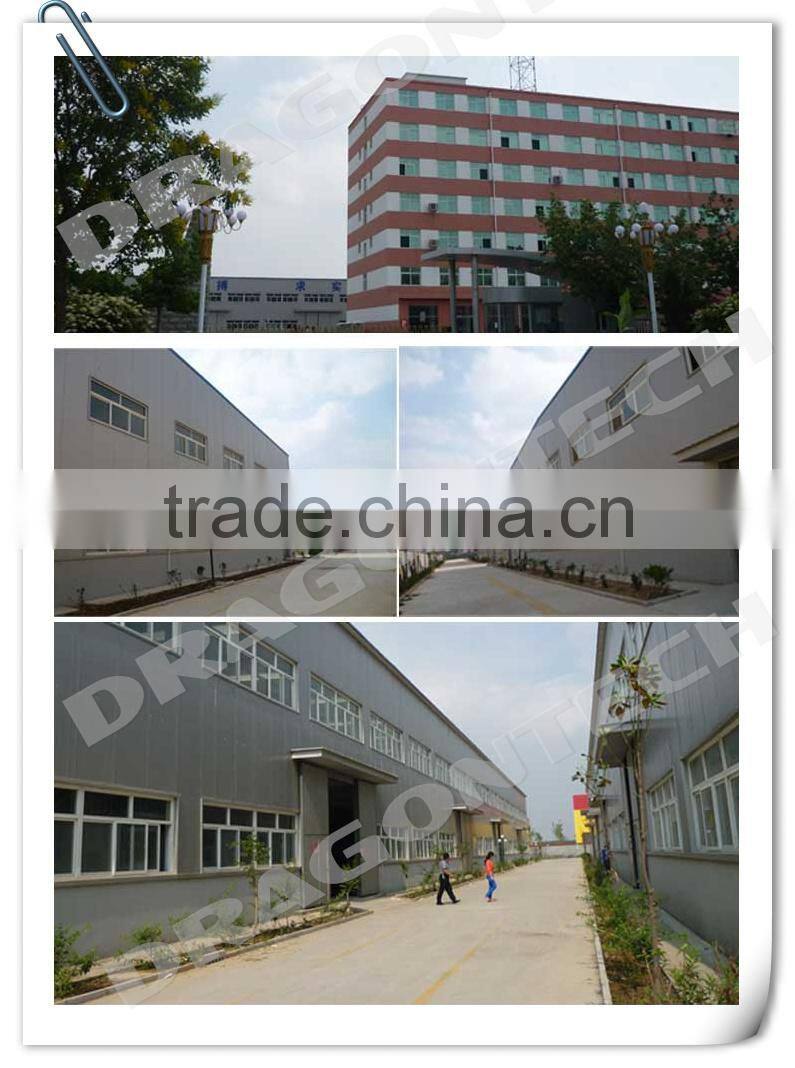

Company Profile
Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.
Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.
We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets.
We hope to establish long-term business relationships with all customers and enjoy the benefits together.
