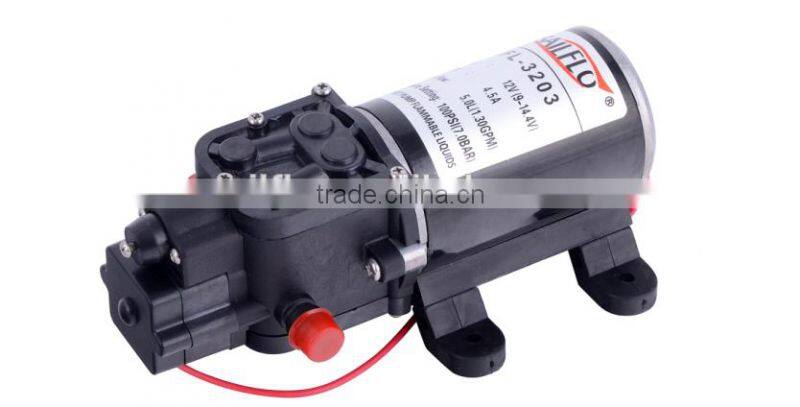

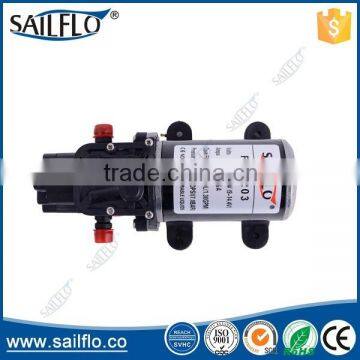

Sailflo FL-3203 5.1L/min 100psi high pressure moter water pump 12v dc
Specifications:
We have tested these pumps and found they will operate to a 1.5 metre suction.
The pump with built-in pressure switch, can be working automatically when the tap turn on-off.
| Type: | 2 Chamber Diaphragm |
| Port Size: | 3/8''(19mm)House Barb |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 5.0 feet [about 1.5M] |
| Max pressure | 100psi(7.06bar);can be adjust to 110psi. |
| Run Dry: | Yes |
| Motor: |
Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC motors standard |
Features:
- Lightweight and made from non corroding materials
- Self priming
- Run dry Protection
- Easy to install
- No maintenance
- Simple to operate
- Low power consumption
- 12 months warranty
- Automatically turns on and off
Technical Data:
| TECHNICAL DATA OF DC VOLTAGE | ||||
| Model | Volt | FLow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-3202 | 12 | 5.1 | 80 | 4.5 |
| FL-3402 | 24 | 5.1 | 80 | 2.8 |
| FL-3203 | 12 | 5.1 | 100 | 5.0 |
| FL-3403 | 24 | 5.1 | 100 | 3.0 |
| FL-3206 | 12 | 6.0 | 60 | 6.0 |
| Inlets size: | 3/8''hose barb, O-Ring | |||
| Outlets size: | 3/8''hose barb, O-Ring | |||
| dimension/pc DC model | 20 x 12 x 8cm | |||
| N.W/G.W DC model | 1.13 KGS/1.22 KGS | |||
| Carton dimension(10pcs DC Series): | 20x 12 x 80 cm | |||
1. Q: Are you a manufacturer or trading company?
A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing can be deducted in your first large order.
4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation
5 : Q:What's your warranty & after service policy?
A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts free to you
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
