Help CenterPVD Coating Machine
Related Products
Specifications
1.Our equipments are all resonable designed by customers request.2.Long time technology accumulation and manufacturing experie

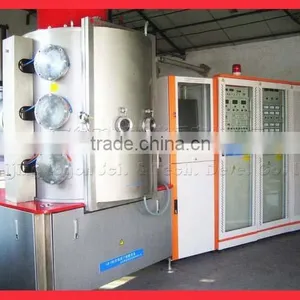

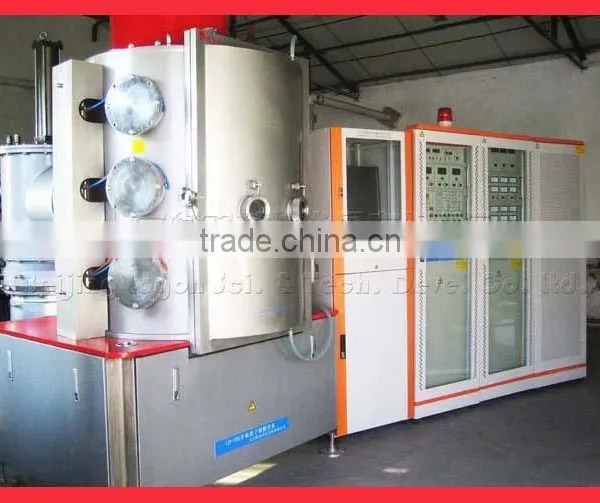

The specification of the LD-600 voltaic arc ion vacuum coating equipment
A-Computer automatic control B-switch board manual
Specification and model |
LD-600(A/B) |
Remarks |
Vacuum Chamber Inner Size |
¢500-800×h500-700(mm) |
The size can be increased or decreased±10% |
Effective coating space |
¢400-700×h350-500(mm) |
The size can be increased or decreased±10% |
Workpiece rotary frame |
Rotation +revolution and rotation |
Design according to the specific requirement |
The layout of the rotary frame |
The top of Vacuum Chamber downward install |
lower , upward install, can instead |
Quantity of the hanging rod |
4 rotation+8 revolution and rotation |
Can design according to the workpiece quantity |
Rotary speed |
0-5revolutions/minute(rotation) speed governor adjust |
variable-frequency governor |
The maximum size of the workpiece |
¢80-120×h350-500(mm)rotation |
Hanger quantities and rotation radius |
Application |
tools coating+ decorative coating |
|
Workpiece material |
Metal ,glass, ceramics etc. |
Almost all material |
Film material |
TiN, TiAlN, CrN, TiC, TiCN, etc. |
Tools film , Multilayer film , Decorative film |
Requirement of production space |
5×7m |
Leave the space of operation and maintenance |
Requirement of capacitance |
50Hz 380V 40KVA |
Installed capacity not practical power consumptive |
Requirement of cooling water |
3ton/hour circulating cooling water/ 25°C |
|
Pollutant emission |
none |
None exhaust gas, wastewater, none scrap |
Work noise |
90decibel |
|
Vacuum air pump |
2X-70rough pump+2X-30maintain pump |
|
Roots pump |
ZJP-150 |
Can be increased |
Diffusion pump |
KT-400 |
Can replace molecular pump according to the requirement |
Ultimate vacuum |
Overmatch 6×10-4Pa |
|
Work vacuum |
6.67×10-3 Pa |
|
Exhaust speed |
<20 minutes(atmosphere—work vacuum) |
Normal temperature |
Pressure rising rate(leak rate) |
0.35Pa/h |
|
Vacuum chamber material |
304 stainless steel |
|
Rotary frame material |
Carbon steel plating |
|
Cathode voltaic arc ion source |
6 dynamoelectric striking the arc indirect cooling |
Direct cooling can instead |
Target size |
¢100×40(mm) |
|
Grid bias power supply |
20KW 20KHz Inverter power supply |
The power can change according to the capacity |
Voltaic arc power supply |
6 0-200A electric current tunable |
|
Vacuum chamber heating power |
15-18KW temperature PID adjust |
|
Control model |
Automatic(A) Manually operation(B) |
Automatic control type have hand control |
Automatic control system (A) |
Industry control computer+ PLD+ LCD+ printer |
Can control by touch screen |
