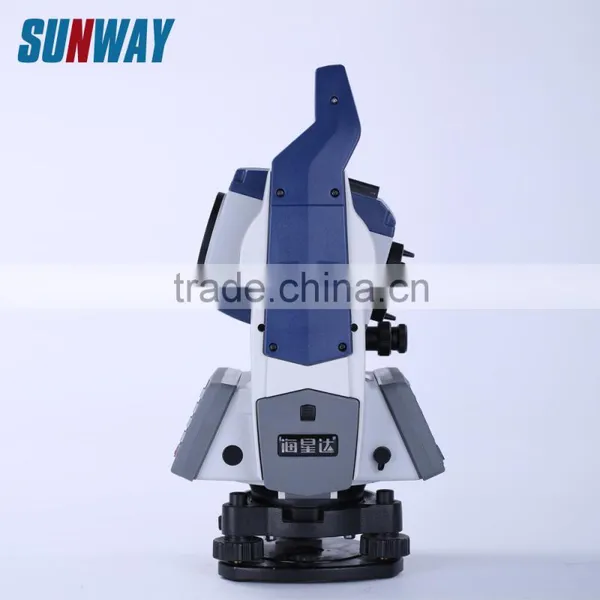

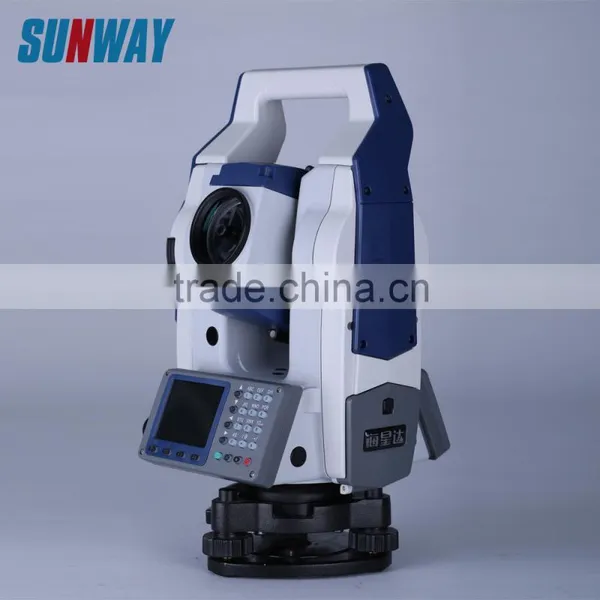

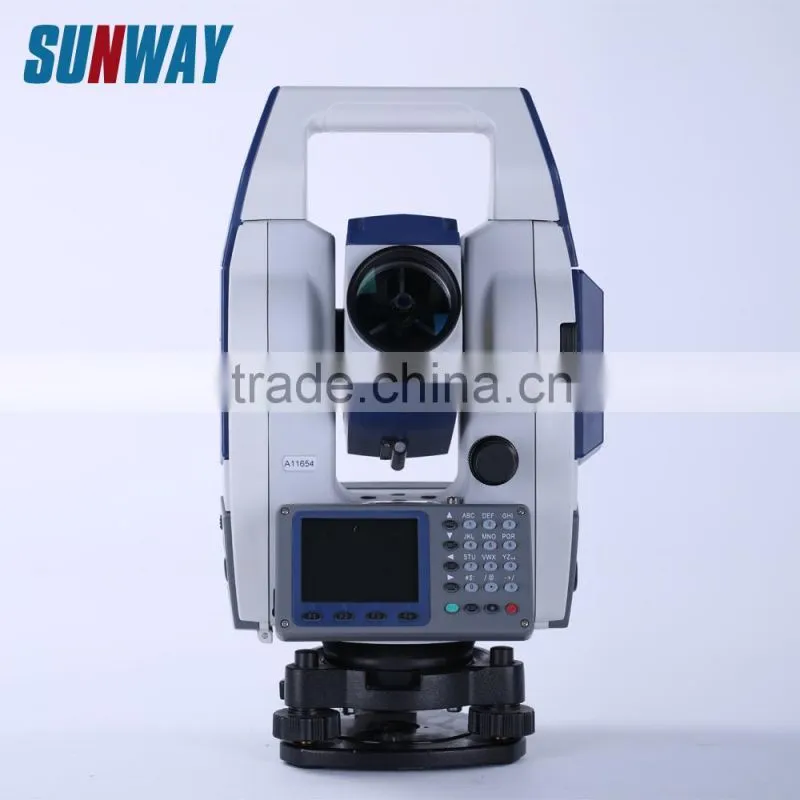

Topographic Survey Total Station

Topographic Survey Total Station thumbnail-1
Topographic Survey Total Station thumbnail-2
Topographic Survey Total Station thumbnail-3
Topographic Survey Total Station thumbnail-4
Topographic Survey Total Station photo-1
Topographic Survey Total Station photo-2
Topographic Survey Total Station photo-3
Topographic Survey Total Station photo-4
US$ 1,600 - 1,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Sunway
Model Number:
ATS-620R
Contact Supplier Request Quote Chat Now
Suzhou Sunway Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Sunway
Model Number ATS-620R
Product Description

Topographic survey total station                                                                      foif total station

Accurate angele measuring

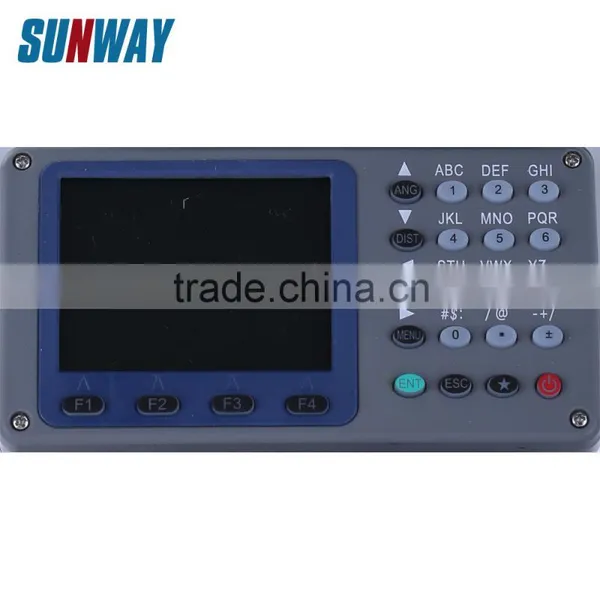

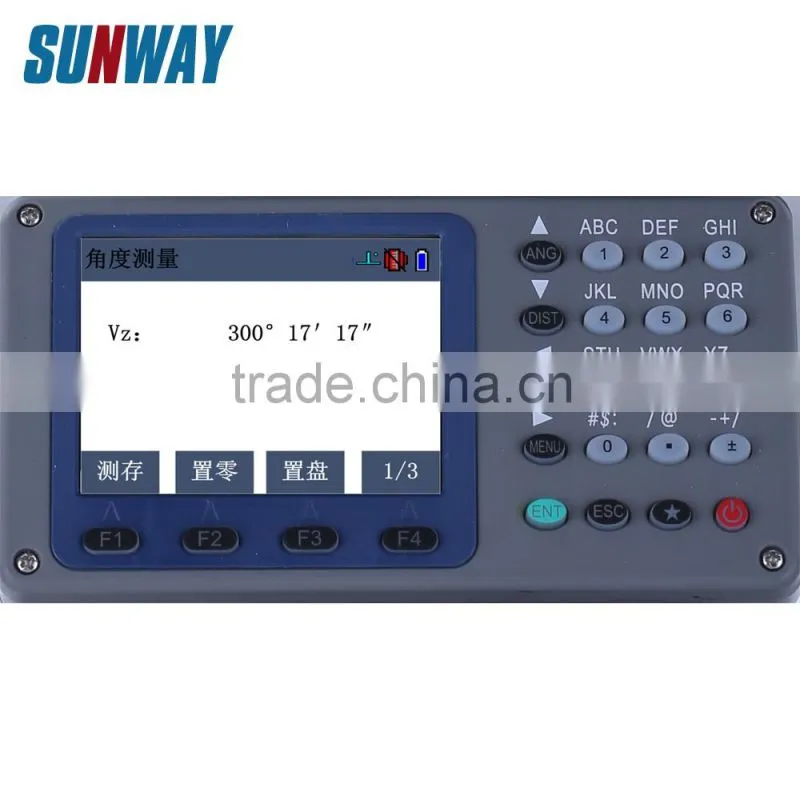

Color screen

Powerful mainboard

Product Features-Topographic survey total station
1
Compact  Design, color screen display
2
Long ranging in reflectorless mode
3
 Powerful and Fast EDM Capability
4
Stable Dual-axis Compensation
5
Upward Laser Pointing
6
IP66 Dust and Water Protection
7
Intelligent Calibration Software
8
Software Compatibility

Application fields




Technical Parameters

Model
ATS-620R
Angle measurement (Hz、V)
Detecting system
Absolute encoder
Minimum display
1″/5″/10″(selectable)
Accuracy
2″
Telescope
Magnification
30X
Field of view
1°30′
Minimum focus distance
1.5m
Erect
Compensator
System
Dual-axis
Range
±3′
Resolving power
1″
Distance measurement(IR)
Single prism(good condition)
3000m
Reflective sheet
800m
Accuracy
2mm+2ppm
Measuring time(repeat/tracking)
1s/0.5s
Reflectorless distance measurement (RL)
Range(White board reflectivity 90%)
400m
Accuracy
3mm+2ppm
Measuring time
1.5s

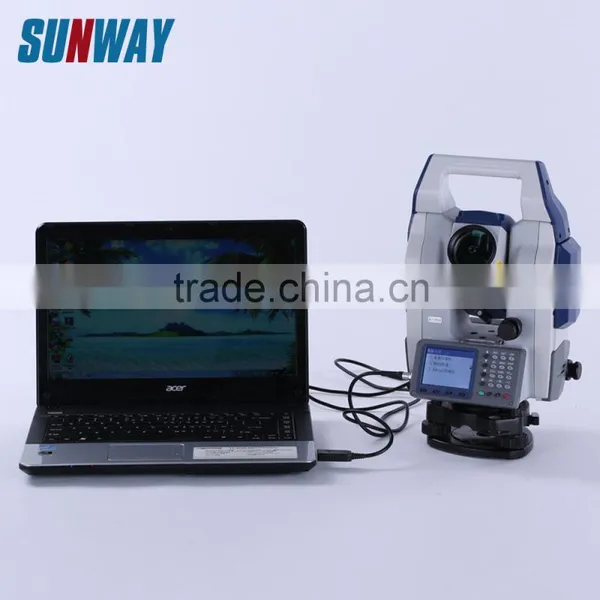

Communication
Internal memory
20000 points(standard configuration 8G OTG USB Flash )
Interface
RS232,Mini-USB,USB /Bluetooth（optional）
Data format
ASCII
Operation
Operation system
English Real-time operation system
Display
240*320 high-light color screen, adjustable in 3 level
Keyboard
2 sides alphanumeric backlit crystal keyboard
Laser plummet
Type
Laser point,4 brightness level adjustable (optical plummet is optional)
Accuracy
1mm(1mm at 1.5m instrument height)
Environmental
Operation temperature
-20℃—+50℃
Storage temperature
-40℃—+70℃
Dust & Water proof
IP55（standard:IEC60529）
Power supply
Battery type
High Energy Li-ion battery
Voltage/Capacity
7.4V 4400mAh
Operating time
24 hours(continuous angle measurement every 30 seconds)
Measuring times
Approx. 18000 times
Weight
5.5kg（include battery）
History of SUNWAY

2005, Suzhou Sunway Technology Co.,Ltd (hereinafter referred to as Sunway) was established.
2012, Sunway officially became the holding subsidiary of Hi-Target Survey Instruments Co.,Ltd, Stock symbol:300177, and is developing and expanding in full-scale.

Sunway's main business are R&D, manufacturing, sales and after-sales services of photoelectric products like total station, laser ranging device, absolute coding angle measuring device, etc. Sunway’s products are recognized domestically and internationally in the surveying, engineering and construction markets, and are currently sold all over the world.

2014, Sunway has sold more than 10,000 sets total stations，take the lead in offering homegrown miniaturization
total station.

2015, Sunway has sold 15,000 sets total stations,occupying over 30% China total station market. Meanwhile, we're building a new total station manufacturing plant with a capacity of 100,000 total station a year, it will be in use in 2018.

2016, we sincerely invite worldwide exclusive distributors for long-term cooperative business.


Win-win cooperation !  Sunway are expecting your join and cooperation!

Packing & Delivery

Packing: Engineer case+ Carton


Delivery: 2 workdays upon payment confirmed

Our Service

1、Pre-sale technical service
    We offer our customers a full range of services:

• ODM&OEM service of Total station and relavant accessories, spare parts

• product performance consulting services ,etc.

2、After-sales service

    We have professional after-service technical team, can resolve all technical problems you may meet in use of total station.

• Technical training:  We provide technical training include repair service training to our distributors
• Technical Service:  We will respond within 24 hours by Phone, E-mail, Trade manager, etc .

• Product warranty: 2 years & life long maintenance
