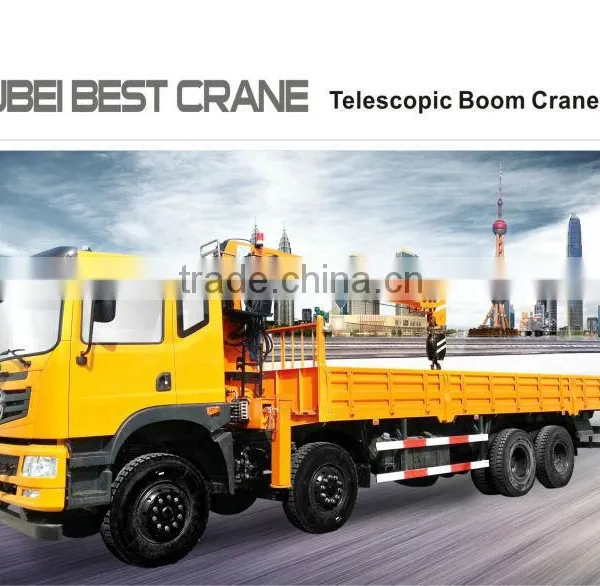

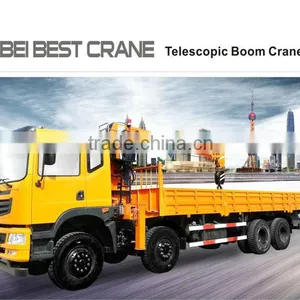

20t Heavy Crane With Telecopic Boom, Model No.: SQ20S5, Hydraulic Crane on Truck or Boat
US$ 48,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
truck mounted crane
Rated Loading Capacity:
8100 kg
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI TIANJIN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18ton Hoisting Crane With Grab, Model No.:SQ18S5, Hydraulic Telescopic Boom Crane on Truck or BoatUS$ 37,000 - 51,000MOQ: 1 Set -
14ton Hoisting Crane With Grab, Model No.:SQ14S4, Hydraulic Telescopic Boom Crane on Truck or BoatUS$ 26,000 - 38,000MOQ: 1 Set
-
18ton Timber Crane on Truck, Model No.: SQ18S5, Hydraulic Crane With Telescopic ArmsUS$ 37,000 - 51,000MOQ: 1 Set
-
3.2ton Loading Crane Truck Mounted, Model No.: SQ3.2S3, Hydraulic Crane With Telescopic ArmsUS$ 6,500 - 10,000MOQ: 1 Set
-
8ton Loading Crane Truck Mounted, Model No.: SQ8S4, Hydraulic Crane With Telescopic ArmsUS$ 16,000 - 20,000MOQ: 1 Set
Condition
New
Application
truck mounted crane
Rated Loading Capacity
8100 kg
Rated Lifting Moment
500 Kn.m
Max. Lifting Load
20 ton at 2.5m
Max. Lifting Height
20.1m
Span
2400-7270mm
Place of Origin
Hubei, China
Brand Name
HUBEI HBQS
Model Number
SQ20S5
Certification
ISO9001:2008; TS16949
Warranty
one year
After-sales Service Provided
Overseas third-party support available
SQ20S5 (20T) Telescoping Boom Crane
| Model # | SQ20S5 /telescopic crane 20 ton at 2 .5m |
| Max Lifting Moment | 500 Kn.m |
| Max Lifting Capacity (kg/m) | 20000/2.5 |
| 3000/8.1 | |
| 1500/12 | |
| 500/16.5 | |
| Max Lifting Height | 20.1 m |
| Working Radius | 20 m |
| Boom Section | 5 stages |
| Rotation Angle | 360º continuous |
| Working Pressure | 28 Mpa |
| Rated Oil Flow | 108L/min |
| Oil Tank Capacity | 200L |
| Wire Rope(Winch) | Φ14*160m |
| Swing Speed | 2rpm |
| Winch Type | Hydraulic |
| Swing Type | Planetary gear reduction. |
| Outrigger | 4 ,Extension, Hydraulic operating. |
| Outrigger Span | 2400-7270mm |
| Crane Weight | 8100 kg |
| Installation Space | 1500mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device. |
| Material | HG70 |
| Telescoping Boom Truck Mounted Crane | ||||||||||
| Model # | SQ3.2S3 | SQ5S3 | SQ6.3S3 | SQ8S4 | SQ10S4 | SQ12S4 | SQ14S4 | SQ16S5 | SQ18S5 | SQ20S5 |
| Max Lifting Moment | 80 Kn.m | 125 Kn.m | 160 Kn.m | 200 Kn.m | 250 Kn.m | 300 Kn.m | 350 Kn.m | 400 Kn.m | 450 Kn.m | 500 Kn.m |
| Max Lifting Capacity | 3.2 T | 5 T | 6.3 T | 8 T | 10 T | 12 T | 14 T | 16 T | 18 T | 20 T |
| Max Lifting Height | 10 m | 11 m | 11.5 m | 13.7 m | 14.7 m | 17 m | 18.6 m | 20.1 m | 20.1 m | 20.1 m |
| Working Radius | 7.4 m | 9.4 m | 10.1 m | 12.5 m | 13.7 m | 15.5 m | 16.5 m | 20 m | 20 m | 20 m |
| Boom Section | 3 stages | 3 stages | 3 stages | 4 stages | 4 stages | 4 stages | 4 stages | 5 stages | 5 stages | 5 stages |
| Rotation Angle | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous |
| Working Pressure | 16 Mpa | 16 Mpa | 16 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa |
| Rated Oil Flow | 30 L/min | 50L/min | 50L/min | 63L/min | 63L/min | 80L/min | 90L/min | 90L/min | 90L/min | 90L/min |
| Outrigger Span | 1750-3550mm | 2215-5014mm | 2215-5014mm | 2200-5400mm | 2200-5400mm | 2298-5900mm | 2190-5600mm | 2190-5390mm | 2400-7270mm | 2400-7270mm |
| Crane Weight | 1500 kg | 2300 kg | 3200 kg | 4200 kg | 4800 kg | 5800 kg | 6500 kg | 6900 kg | 7600 kg | 8100 kg |
| Installation Space | 800 mm | 950mm | 1100mm | 1200mm | 1300mm | 1300mm | 1450mm | 1450mm | 1450mm | 1500mm |
