Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms.

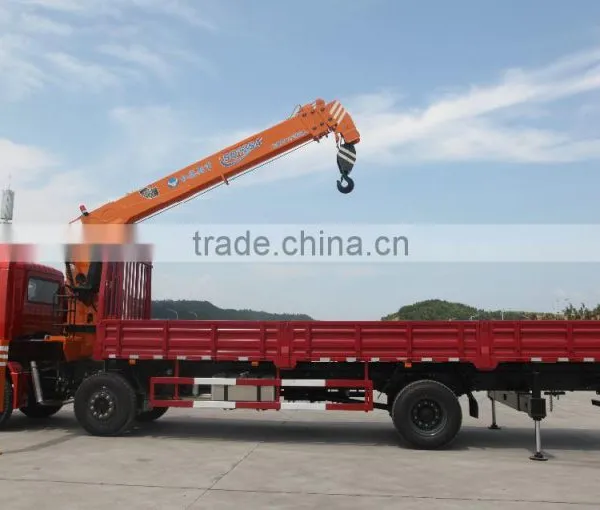

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-1

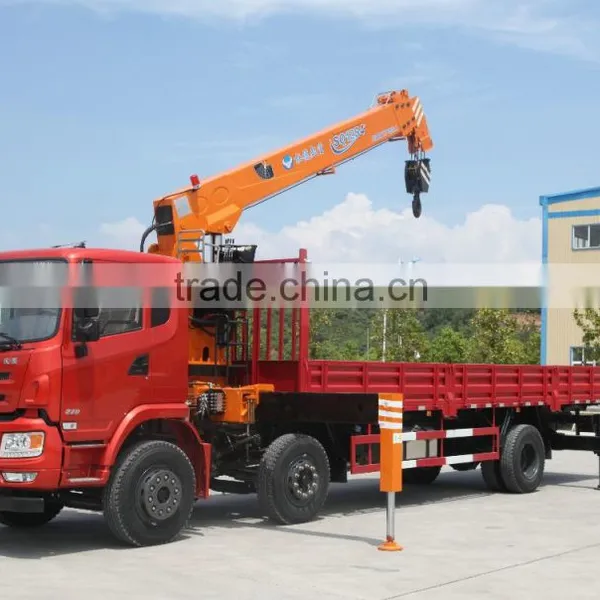

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-2

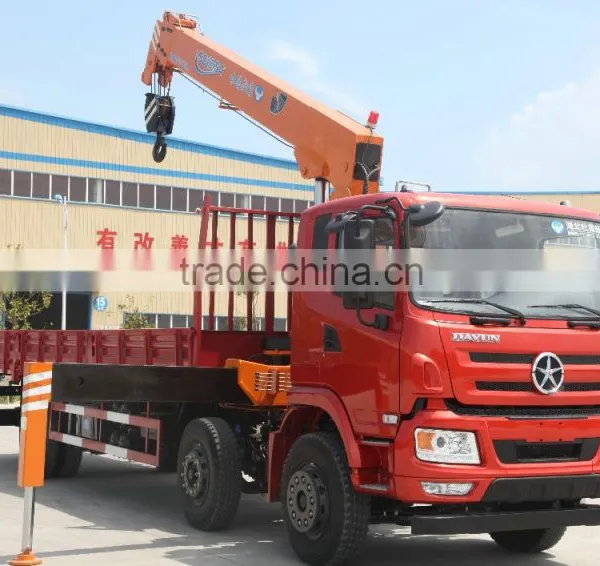

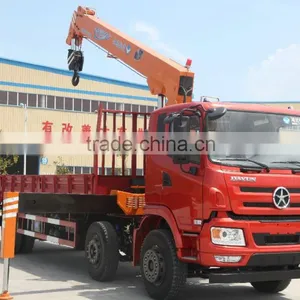

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-3

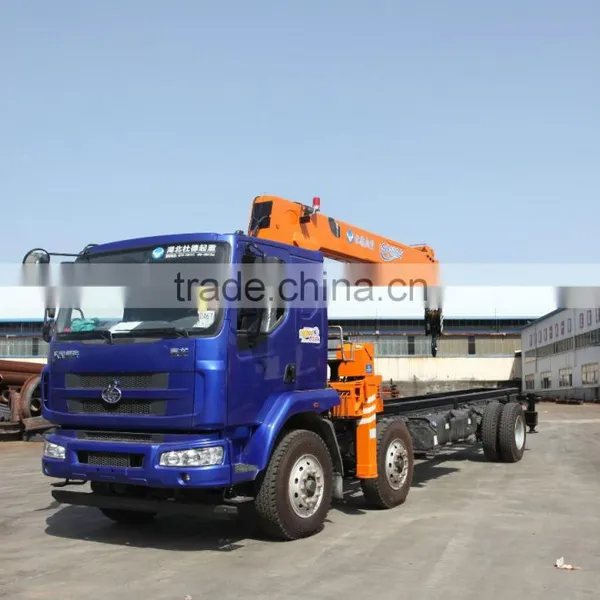

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-4

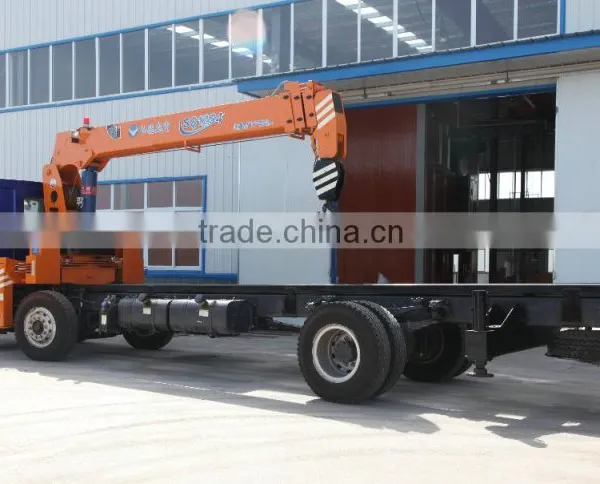

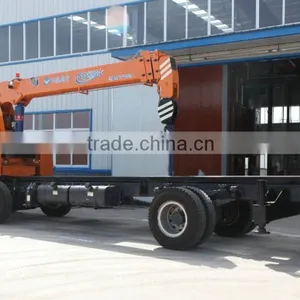

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-5

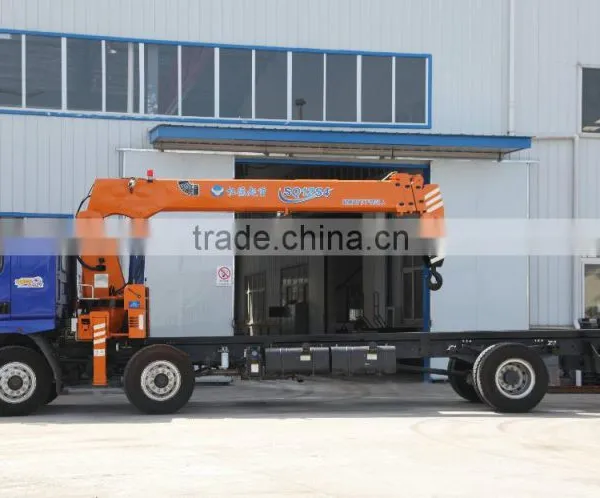

Hand Operated Lifting Equipment on Truck, Model No.:SQ12S4, 12ton Truck Crane With Telescopic Booms. photo-6
US$ 21,000 - 33,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
truck mounted crane
Rated Loading Capacity:
5800 kg
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI TIANJIN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application truck mounted crane
Rated Loading Capacity 5800 kg
Rated Lifting Moment 300 Kn.m
Max. Lifting Load 12 ton at 2.5m
Max. Lifting Height 17m
Span 2298-5900mm
Place of Origin Hubei, China
Brand Name HUBEI HBQS
Model Number SQ12S4
Certification ISO9001:2008; TS16949
Warranty one year
After-sales Service Provided Overseas third-party support available

hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.

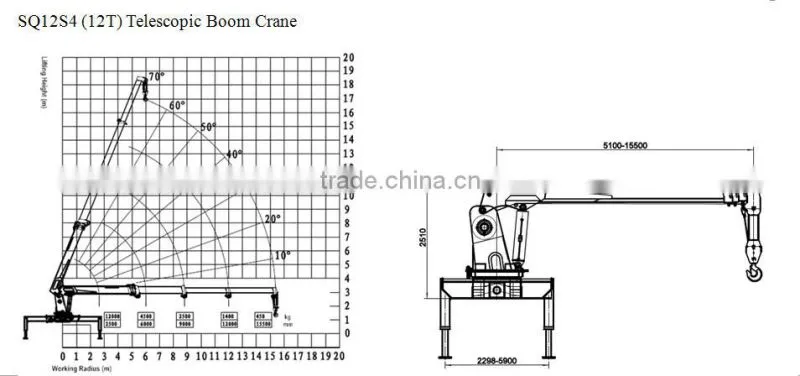

SQ12S4    (12T) Telescoping Boom Crane

Model # SQ12S4 /telescopic crane 12 ton at 2 .5m
Max Lifting Moment 300 Kn.m
Max Lifting Capacity (kg/m) 12000/2.5
4500/6.0
2500/9.0
450/15.5
Max Lifting Height 17 m
Working Radius 15.5 m
Boom Section 4 stages
Rotation Angle 360º continuous
Working Pressure 20 Mpa
Rated Oil Flow 80L/min
Oil Tank Capacity 200L
Wire Rope(Winch) Φ12*110m
Swing Speed 2rpm
Winch Type Hydraulic
Swing Type Planetary gear reduction.
Outrigger 4 ,Extension, Hydraulic operating.
Outrigger Span 2298-5900mm
Crane Weight 5800 kg
Installation Space 1400mm
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device.
Material HG70

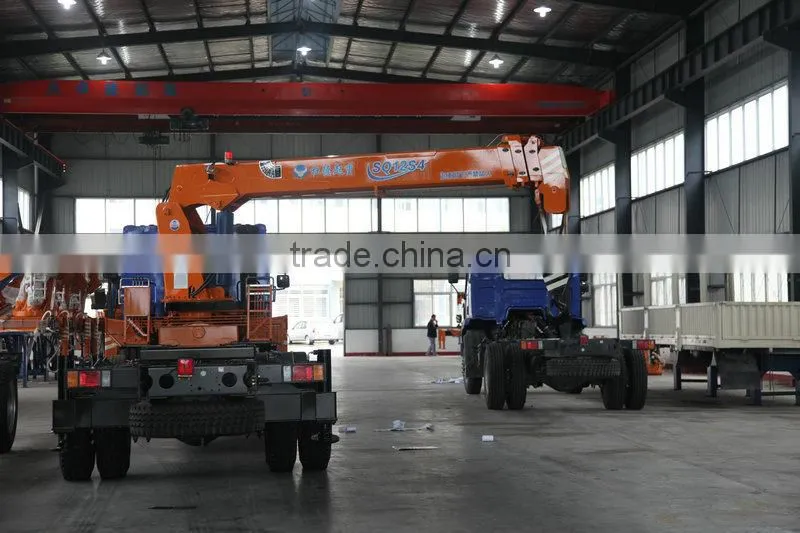

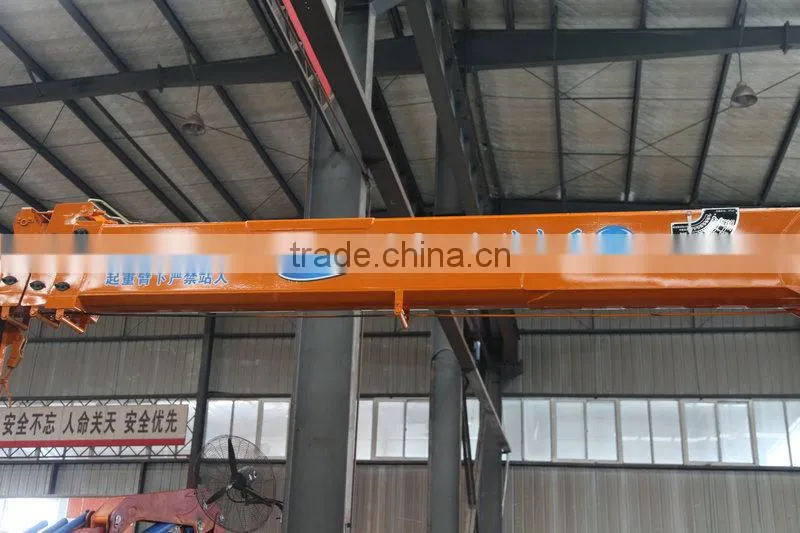

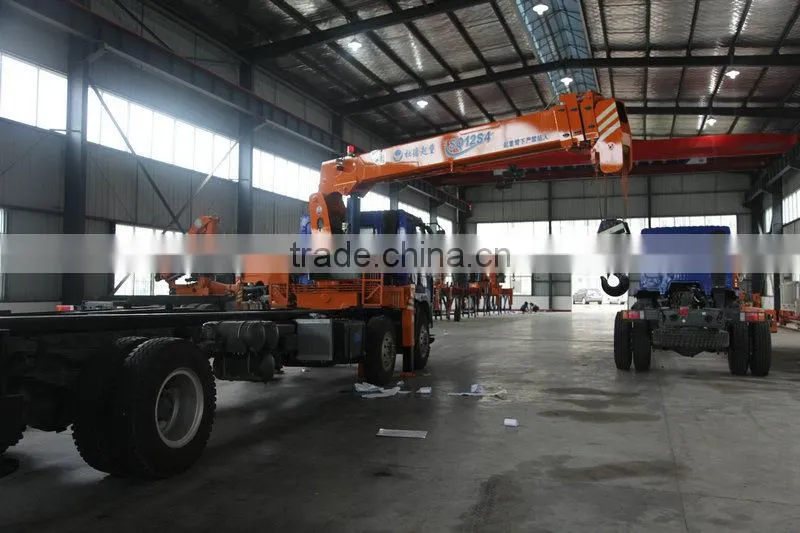

 hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.




hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.



hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.



hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.



hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.



hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.





hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.





hand operated lifting equipment on truck, Model No.:SQ12S4, 12ton truck crane with telescopic booms.
