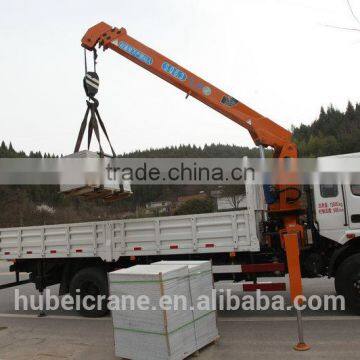

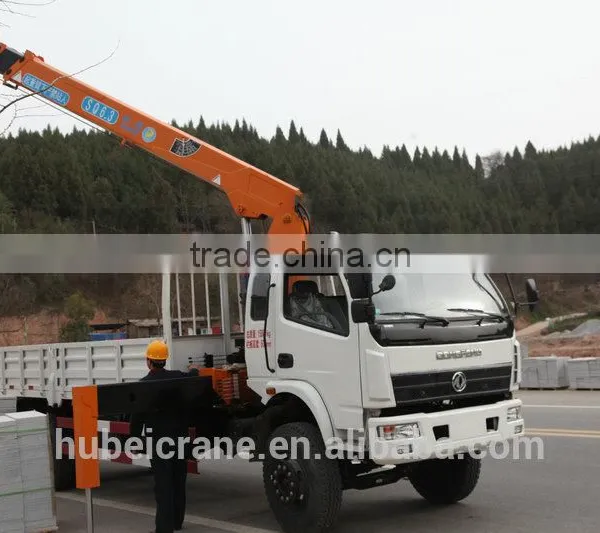

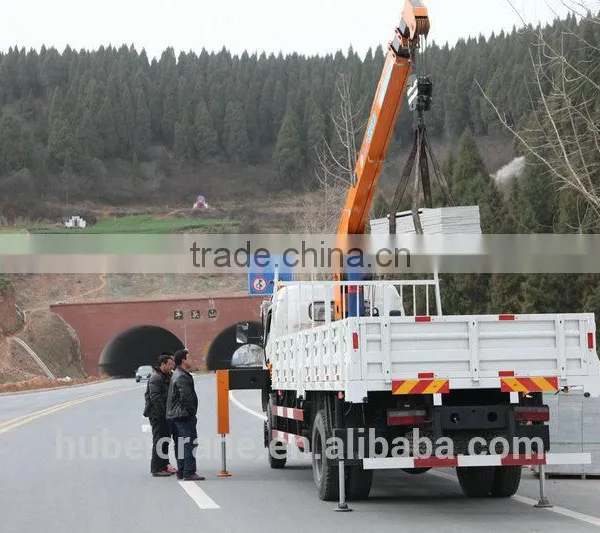

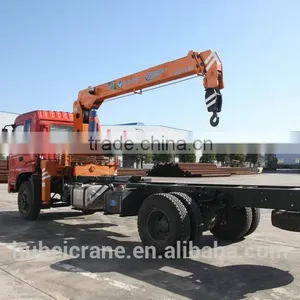

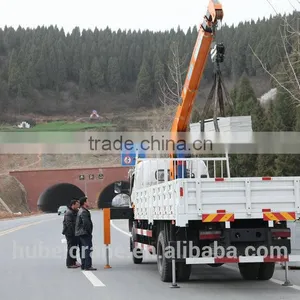

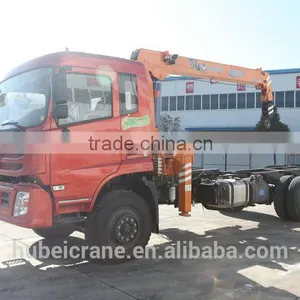

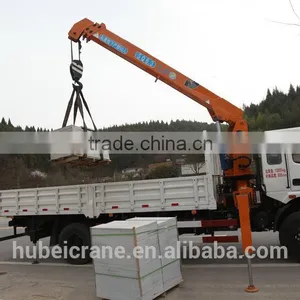

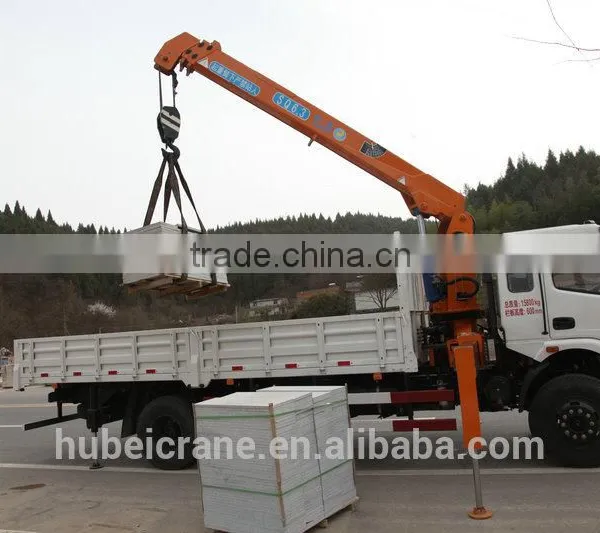

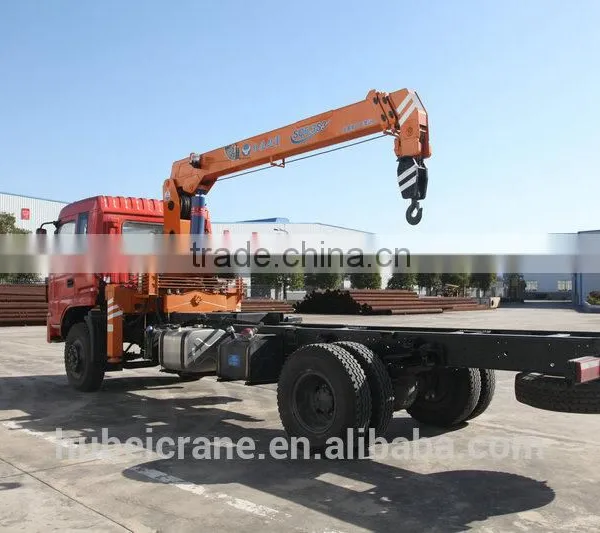

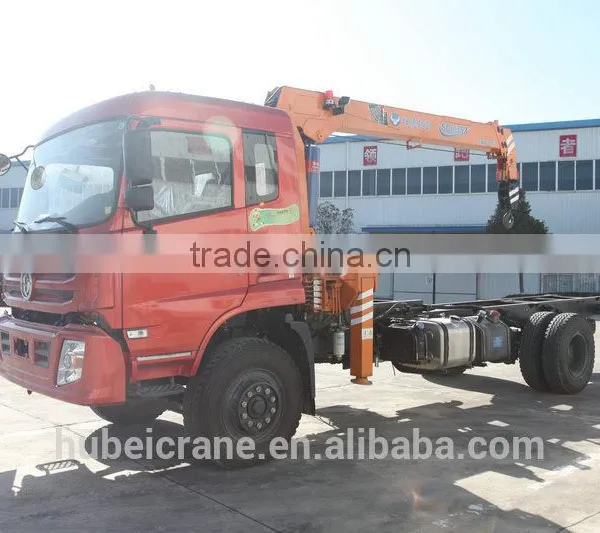

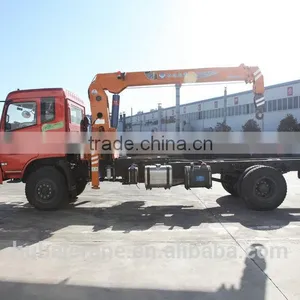

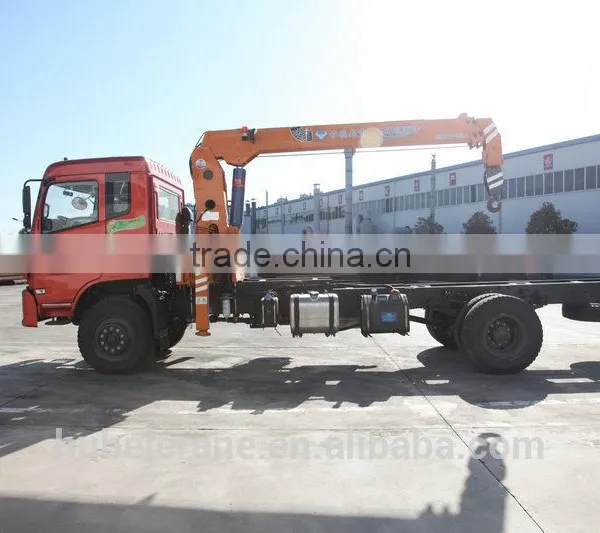

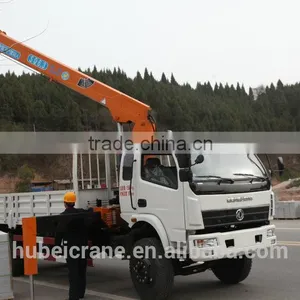

6.3ton Quicklift Compact Cranes, SQ6.3S3, Hydraulic Truck Crane With Telescopic Booms.
US$ 11,000 - 17,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
truck mounted crane
Rated Loading Capacity:
3200 kg
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI TIANJIN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5ton Quicklift Compact Cranes, SQ5S3, Hydraulic Truck Crane With Telescopic Booms.US$ 9,999 - 15,000MOQ: 1 Set -
3.2ton Quicklift Compact Cranes, SQ3.2S3, Hydraulic Truck Crane With Telescopic Booms.US$ 6,500 - 10,000MOQ: 1 Set
-
8ton Timber Crane on Truck, Model No.: SQ8S4, Hydraulic Crane With Telescopic ArmsUS$ 17,580 - 20,000MOQ: 1 Set
-
6.3ton Timber Crane on Truck, Model No.: SQ6.3S3, Hydraulic Crane With Telescopic ArmsUS$ 11,560 - 17,000MOQ: 1 Set
-
Hand Operated Lifting Equipment on Truck, Model No.:SQ14S4, 14ton Truck Crane With Telescopic Booms.US$ 26,000 - 38,000MOQ: 1 Set
Condition
New
Application
truck mounted crane
Rated Loading Capacity
3200 kg
Rated Lifting Moment
160 Kn.m
Max. Lifting Load
6.3 ton at 2.5m
Max. Lifting Height
11.5m
Span
2215-5014mm
Place of Origin
Hubei, China
Brand Name
HUBEI HBQS
Model Number
SQ6.3S3
Certification
ISO9001:2008; TS16949
Warranty
one year
After-sales Service Provided
Overseas third-party support available
SQ6.3S3 (6.3T) Telescoping Boom Crane
| Model # | SQ6.3S3 /telescopic crane 6.3 ton at 2.5 m |
| Max Lifting Moment | 160 Kn.m |
| Max Lifting Capacity (kg/m) | 6300/2.5 |
| 3200/4.1 | |
| 1800/6 | |
| 1100/8 | |
| Max Lifting Height | 11.5 m |
| Working Radius | 10.1 m |
| Boom Section | 3 stages |
| Rotation Angle | 360º continuous |
| Working Pressure | 16 Mpa |
| Rated Oil Flow | 50L/min |
| Oil Tank Capacity | 120L |
| Wire Rope(Winch) | Φ10*80m |
| Swing Speed | 2rpm |
| Winch Type | Hydraulic |
| Swing Type | Planetary gear reduction. |
| Outrigger | 4 ,Extension, Hydraulic operating. |
| Outrigger Span | 2215-5014mm |
| Crane Weight | 3200 kg |
| Installation Space | 1100mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device. |
| Material | HG70 |
| Telescopic Boom Truck Mounted Crane Series | ||||||||||
| Model # | SQ3.2S3 | SQ5S3 | SQ6.3S3 | SQ8S4 | SQ10S4 | SQ12S4 | SQ14S4 | SQ16S5 | SQ18S5 | SQ20S5 |
| Max Lifting Moment | 80 Kn.m | 125 Kn.m | 160 Kn.m | 200 Kn.m | 250 Kn.m | 300 Kn.m | 350 Kn.m | 400 Kn.m | 450 Kn.m | 500 Kn.m |
| Max Lifting Capacity | 3.2 T | 5 T | 6.3 T | 8 T | 10 T | 12 T | 14 T | 16 T | 18 T | 20 T |
| Max Lifting Height | 10 m | 11 m | 11.5 m | 13.7 m | 14.7 m | 17 m | 18.6 m | 20.1 m | 20.1 m | 20.1 m |
| Working Radius | 7.4 m | 9.4 m | 10.1 m | 12.5 m | 13.7 m | 15.5 m | 16.5 m | 20 m | 20 m | 20 m |
| Boom Section | 3 stages | 3 stages | 3 stages | 4 stages | 4 stages | 4 stages | 4 stages | 5 stages | 5 stages | 5 stages |
| Rotation Angle | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous |
| Material | HG70 | HG70 | HG70 | HG70 | HG70 | HG70 | HG70 | HG70 | HG70 | HG70 |
| Working Pressure | 16 Mpa | 16 Mpa | 16 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa |
| Rated Oil Flow | 30 L/min | 50L/min | 50L/min | 63L/min | 63L/min | 80L/min | 90L/min | 90L/min | 90L/min | 90L/min |
| Outrigger Span | 1750-3550mm | 2215-5014mm | 2215-5014mm | 2200-5400mm | 2200-5400mm | 2298-5900mm | 2190-5600mm | 2190-5390mm | 2400-7270mm | 2400-7270mm |
| Crane Weight | 1500 kg | 2300 kg | 3200 kg | 4200 kg | 4800 kg | 5800 kg | 6500 kg | 6900 kg | 7600 kg | 8100 kg |
| Installation Space | 800 mm | 950mm | 1100mm | 1200mm | 1300mm | 1300mm | 1450mm | 1450mm | 1450mm | 1500mm |
