12ton Crane With Telescope Arms, SQ12S4, Hydraulic Crane on Truck.

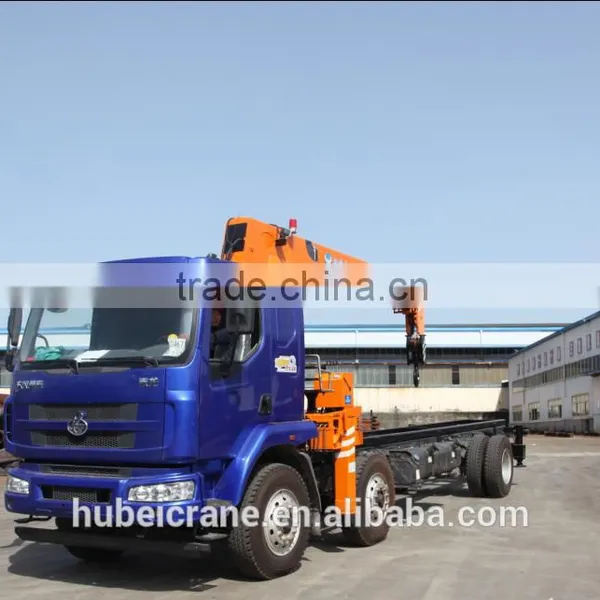

12ton Crane With Telescope Arms, SQ12S4, Hydraulic Crane on Truck. photo-1

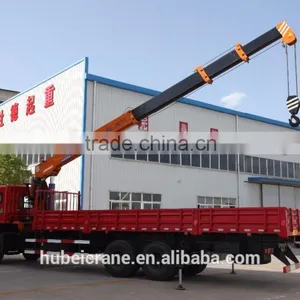

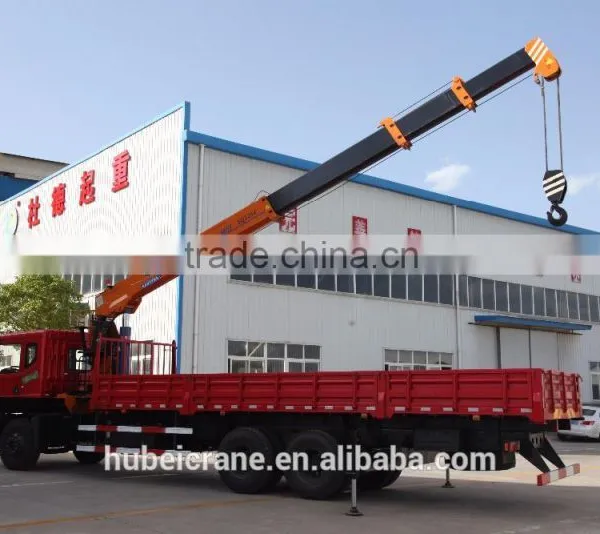

12ton Crane With Telescope Arms, SQ12S4, Hydraulic Crane on Truck. photo-2

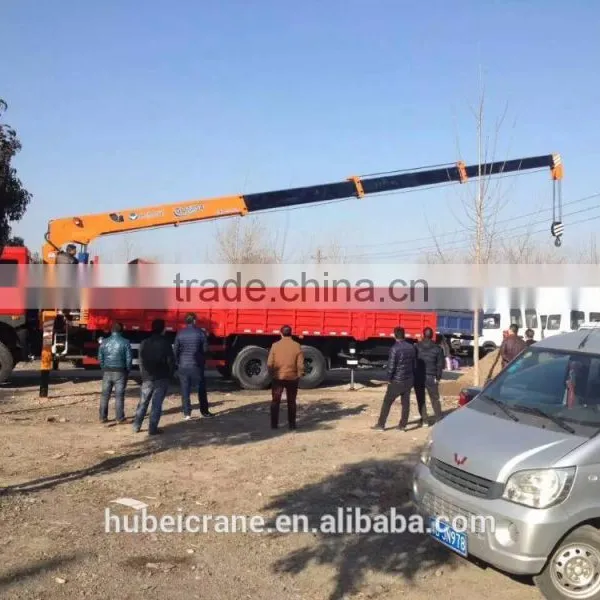

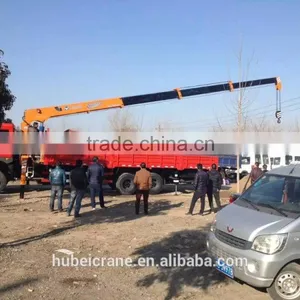

12ton Crane With Telescope Arms, SQ12S4, Hydraulic Crane on Truck. photo-3
US$ 20,000 - 23,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
truck mounted crane
Rated Loading Capacity:
10T
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI TIANJIN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application truck mounted crane
Rated Loading Capacity 10T
Rated Lifting Moment 300Kn.m
Max. Lifting Load 12 ton at 2.5m
Max. Lifting Height 17m
Span 2298-5900mm
Place of Origin Hubei, China
Brand Name HUBEI HBQS
Model Number SQ12S4
Certification ISO9001:2008; TS16949
Warranty 12 Months
After-sales Service Provided Overseas third-party support available
Product Information
Model #
SQ112S4 /telescopic crane 12 ton at 2.5 m
Max Lifting Moment
300 Kn.m
Max Lifting Capacity
12T
Max Lifting Height
17m
Working Radius
15.5m
Boom Section
4 stages
Rotation Angle
360º continuous
Working Pressure
20 Mpa
Rated Oil Flow
80 L/min
Outrigger Span
2298-5900mm
Crane Weight
5800Kg
Installation Space
1400 mm

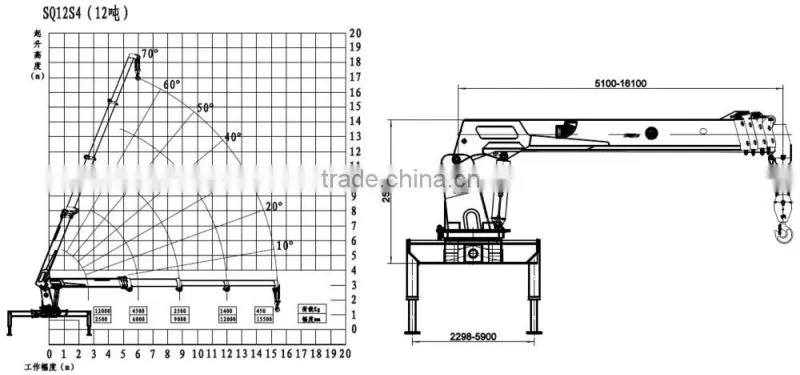

Parameter Figure
Product Image

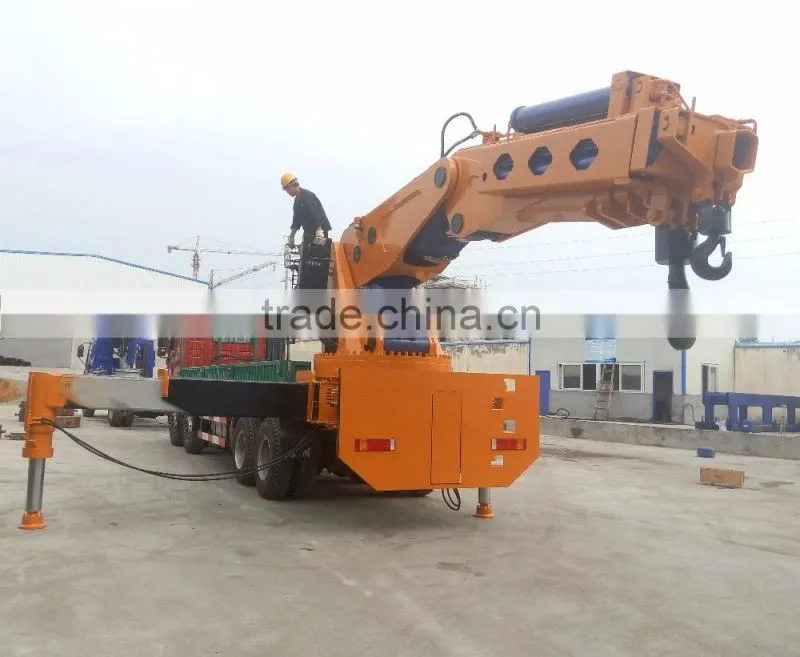

Detail Picture

                             (1)

                                (2)

                                (3)
The Advantage

Advantages:

1、Use HG785 and HG70 international standard high-strength steel to reduce the weight.

2、Boom one time welding technique,improving the lifting capacity.

3、Brand scanreco remote control from Sweden.

4、Boom using hexagonal structure,reducing the lateral sway.

5、Italian brand of valve,hydraulic lock,operated valve ,hydraulic pump and other core parts,to ensure the micro-mobility security and atability.

Related Products
Our Company
  HUBEI BEST CRANE Co.Ltd is a professional truck mounted crane manufacturer,which is special for both kunckle boom type and telescopic boom type.

   Our factory area is 30,000 square meters with 1000 employees around,having all kind  of high precious equipment,warmly welcome visit us.

       After 12 years of unremitting efforts.Our company has achieved the successful transformation from the entrepreneurial stage to the develope space.The company,with 250 million yuan fixed assets and 100 million yuan registered capital,has a beautiful surrounding environment and complete supporting facilities.HUBEI BEST CRANE Co.Ltd is organized as modern enterprises.It has 1200 employees,18 senior engineering,9 senior economists,85 employees of bachelor degree or above and 152 engineering technicians.

       The company formerly known as china biggest and famous hydraulic cylinder manufacturer, the product is applied for dump truck, garbage truck, pump truck and truck mounted crane .The clients are famous in the field of special purpose truck make such as FOTON LOXA ZOOMLION CAMC SHACMAN etc.
 The one important part of truck mounted crane is hydraulic system, we produce hydraulic system by own and have confidence on quality.

 The crane adopts the Italian brand of balance valve, hydraulic lock, operated valve, hydraulic pump and other core parts in order to improve the micro-mobility, security and stability.
