Home > Manufacturing & Processing Machinery > Crane > Truck Crane > 10 Ton at 2.5m, Truck Mounted Crane, SQ10S4, Best Telescoping Boom Truck Mounted Crane 10 Ton.
10 Ton at 2.5m, Truck Mounted Crane, SQ10S4, Best Telescoping Boom Truck Mounted Crane 10 Ton.
US$ 15,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
truck mounted crane
Rated Loading Capacity:
5200kg
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI TIANJIN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18ton Crane With Straight Arms, SQ18S5, Hydraulic Crane on Truck.US$ 20,000 - 25,000MOQ: 1 Set -
14ton Crane With Telescope Arms, SQ14S4, Hydraulic Crane on Truck.US$ 29,000 - 30,000MOQ: 1 Set
-
20ton Quicklift Compact Cranes,SQ20S5, Hydraulic Truck Crane With Telescopic Booms.US$ 40,000 - 55,000MOQ: 1 Set
-
5 Ton Truck Mounted Crane SQ5S3 125 Kn.m at 2.5 m Crane Truck High Quality on Sale Truck CraneUS$ 11,970 - 12,580MOQ: 1 Set
-
8ton Telescopic Boom Crane and Accessories,SQ8S4, Hydraulic Truck Mounted Crane.US$ 16,000 - 20,000MOQ: 1 Set
Condition
New
Application
truck mounted crane
Rated Loading Capacity
5200kg
Rated Lifting Moment
250 Kn.m
Max. Lifting Load
10 ton at 2.5m
Max. Lifting Height
14.7m
Span
2200-5400mm
Place of Origin
Hubei, China
Brand Name
HUBEI HBQS
Model Number
SQ10S4
Certification
ISO9001:2008; TS16949
Warranty
one year
After-sales Service Provided
Overseas third-party support available
SQ10S4 (10T) Telescoping Boom Crane
| Model # | SQ10S4 |
| Max Lifting Moment | 250 Kn.m |
| Max Lifting Capacity (kg/m) | 10000/2.5 |
| 3280/4.86 | |
| 1216/10.76 | |
| 840/13.7 | |
| Max Lifting Height | 14.7 m |
| Working Radius | 13.7 m |
| Boom Section | 3 stages |
| Rotation Angle | 360º continuous |
| Working Pressure | 20 Mpa |
| Rated Oil Flow | 63L/min |
| Oil Tank Capacity | 200L |
| Wire Rope(Winch) | Φ12*100m |
| Swing Speed | 2rpm |
| Winch Type | Hydraulic |
| Swing Type | Planetary gear reduction. |
| Outrigger | Extension, Hydraulic operating. |
| Outrigger Span | 2200-5400mm |
| Crane Weight | 4800 kg |
| Installation Space | 1300mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device. |

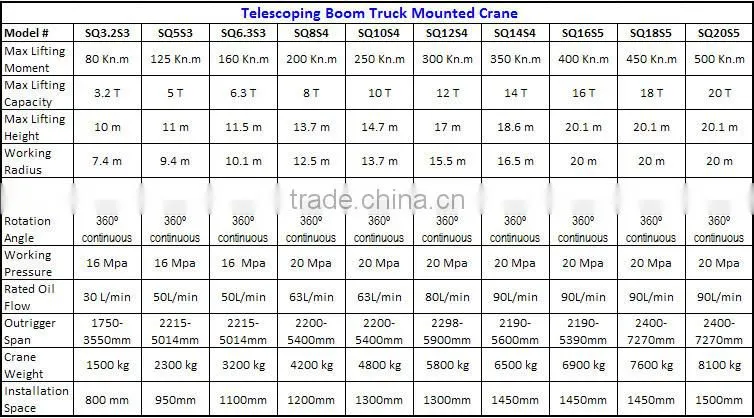

| Telescoping Boom Truck Mounted Crane | ||||||||||
| Model # | SQ3.2S3 | SQ5S3 | SQ6.3S3 | SQ8S4 | SQ10S4 | SQ12S4 | SQ14S4 | SQ16S5 | SQ18S5 | SQ20S5 |
| Max Lifting Moment | 80 Kn.m | 125 Kn.m | 160 Kn.m | 200 Kn.m | 250 Kn.m | 300 Kn.m | 350 Kn.m | 400 Kn.m | 450 Kn.m | 500 Kn.m |
| Max Lifting Capacity | 3.2 T | 5 T | 6.3 T | 8 T | 10 T | 12 T | 14 T | 16 T | 18 T | 20 T |
| Max Lifting Height | 10 m | 11 m | 11.5 m | 13.7 m | 14.7 m | 17 m | 18.6 m | 20.1 m | 20.1 m | 20.1 m |
| Working Radius | 7.4 m | 9.4 m | 10.1 m | 12.5 m | 13.7 m | 15.5 m | 16.5 m | 20 m | 20 m | 20 m |
| Boom Section | 3 stages | 3 stages | 3 stages | 4 stages | 4 stages | 4 stages | 4 stages | 5 stages | 5 stages | 5 stages |
| Rotation Angle | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous |
| Working Pressure | 16 Mpa | 16 Mpa | 16 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa |
| Rated Oil Flow | 30 L/min | 50L/min | 50L/min | 63L/min | 63L/min | 80L/min | 90L/min | 90L/min | 90L/min | 90L/min |
| Outrigger Span | 1750-3550mm | 2215-5014mm | 2215-5014mm | 2200-5400mm | 2200-5400mm | 2298-5900mm | 2190-5600mm | 2190-5390mm | 2400-7270mm | 2400-7270mm |
| Crane Weight | 1500 kg | 2300 kg | 3200 kg | 4200 kg | 4800 kg | 5800 kg | 6500 kg | 6900 kg | 7600 kg | 8100 kg |
| Installation Space | 800 mm | 950mm | 1100mm | 1200mm | 1300mm | 1300mm | 1450mm | 1450mm | 1450mm | 1500mm |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2014
Factory Size
Above 100,000 square meters
Total Employees
301 - 500 People
