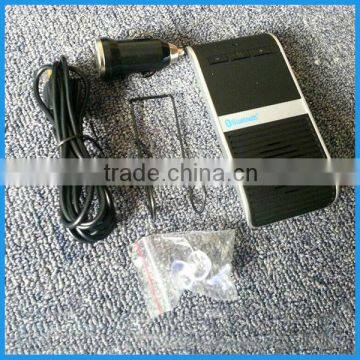

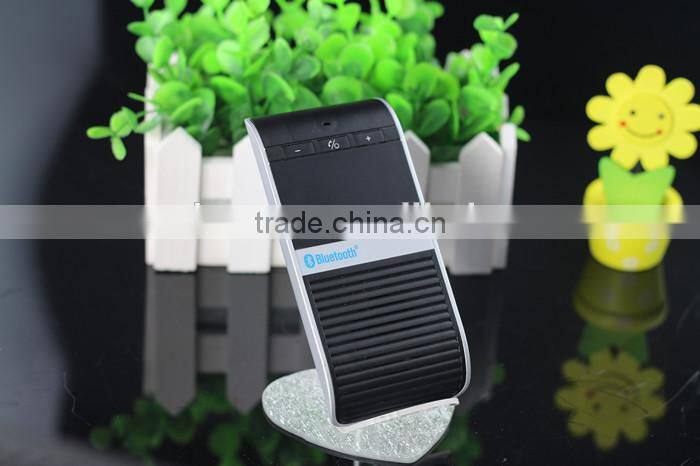

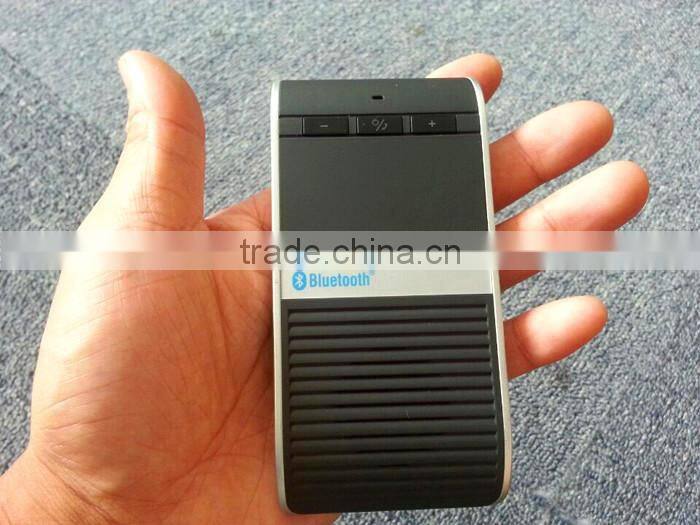

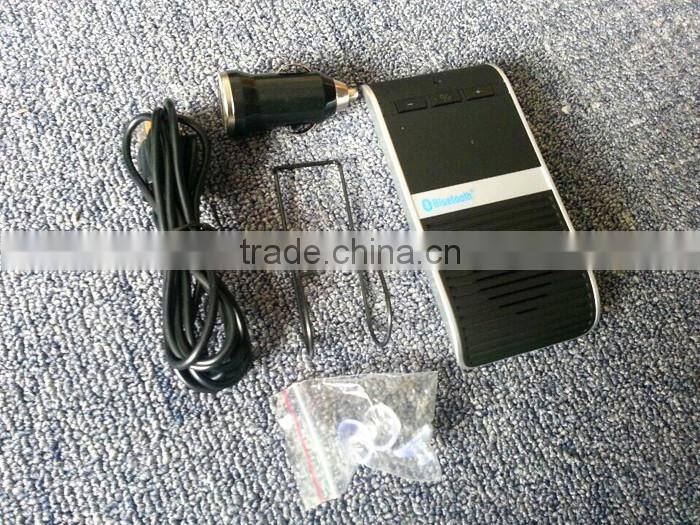

Solar charging bluetooth handfree car kit

Specifications

1.Bluetooth Version:V4.0+EDR;Bluetooth chip: CSR;
2.Solar charging bluetooth handfree car kit

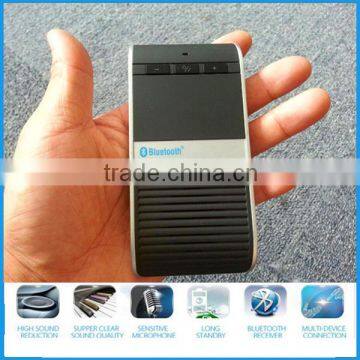

ALD68--Solar Charging Bluetooth Handsfree Car Kit



Features:

 Complete bluetooth wireless installation

 USB port for software updating and charging

 Solar charging, stick on the windscreen to charge

 DSP technology, Full duplex, noise and echo suppression

 Built-in high intelligent microphone and powerful speaker

 Can scroll the 20 groups of incoming calls and store 600 groups number then call back

 Super bright LCM caller English name display and caller ID

 Answer/refuse/Voice dialing , last call redialing , and call switching function

 TTS voice report caller's number



Specifications:

1.Bluetooth Version:V4.0+EDR;Bluetooth chip: CSR; Bluetooth solution:BC8



2.Sun Visor Clip and suction cup design, could be sticked to windscreen or clipped to Sun visor.



3.Supports Bluetooth Headset and Hands-free Profile(HFP1.5), support A2DP



4.Multipoint support, can connedt two mobile phones simultaneously.



5.It could switch between bletooth speaker mode and cellphone speaker mode freely.



6.One-touch answer, call rejection, last number redial, adjustable volume



7.Voice dialing function(Voice activation subject to voice activation enabled phones)



8.Automatically connect with your phones once open it(need to pair it at the first time)



9.Real Voice control, say "yes" to answer call and say "No" to reject it.



10.Rechargeable 600mAh Li-Polymer Battery & High-performance Solar charging pannel



11.Up to 18 hours talking time and 60 days standby time



12.Support Iphone, Sansung,Moto,Sony,Nokia,HTC,Blackberry and so on

13.Car charger output: DC 5V&500mA :





Instructions for use:

1. Connect

After each reboot, the hands-free device to connect automatically to the last connected device. Handsfree device Bluetooth connection state short press the multifunction key, hands-free device to connect automatically to the last connected device. Search through the Bluetooth feature on the mobile phone to connect to the Bluetooth hands-free device, details, see the mobile phone manual.

2. Voice dialing

Standby mode, short press the multifunction key to activate the phone voice dialing.

3. Redial

Standby mode, double-click the multifunction key twice to initiate a redial.

4. Answering incoming calls

The short answer a call press the multifunction key.

5. Rejecting calls

Double-click the multifunction key twice to reject a call.

6. Ending the calls

Call state press the multifunction key to end the call.

7. Adjust the volume

Call press the V key to increase the volume and short V-decrease the volume.

8. Loading phonebooks

Bluetooth transmission function to send the phone book on the phone to the hands-free device, each phone's Bluetooth send operation may not be the same, please refer to the mobile phone manual.

9. Calling records

l In the standby mode, short press V-enter the the inquiry call recording mode, scroll up and down by the V and V-key, short press the multifunction key to allocate the number you are currently viewing. Scroll call records in the query call record mode will automatically exit this mode after 10 seconds.

10. Skimming phonebook

In standby mode, press the V key to enter the query phonebook mode, scroll up and down by the V and V-key, short press the multifunction key to allocate the number you are currently viewing.Press and hold the V key until you hear a beep sound to exit query the Phone Book mode. Read the phone book, telephone directory mode will automatically exit this mode after 10 seconds.

11 Menu functions

V or V-button to enter the menu, press V or V-read menu, press the multi-function key to perform the function of the currently selected menu item:

1) Call Log

Call logs, press V or V-keys to scroll and set aside currently browsing numbers briefly press the multifunction key, long press V or V-button to exit the browser call recording mode. Before entering the browser call recording mode to ensure mobile phones and Bluetooth hands-free connection.

If there is no call recording, Bluetooth hands-free

Hands-free device can store up to 20 call records, including the number of incoming and outgoing calls.

Call record by shortcuts, refer to [check call records].

2) Phonebook

Press V or V-keys to read the phone book, press the multifunction key number set aside currently browsing, long press the V or V-button to exit browse the phonebook. To browse the phonebook mode to ensure that the mobile phone and Bluetooth hands-free connection.

If there is no address book, Bluetooth hands No Pb.

Hands-free device can store up to 600 address book.

The shortcut keys can query the phone book, refer to [telephone directory].

3) Disconnect the machine

Disconnect all connected devices with Bluetooth hands-free.

4) Download phone book

Before beginning this procedure to ensure that the mobile phone and Bluetooth hands-free connection.

Do the Bluetooth hands-free and automatically download the address book on the phone. Bluetooth hands-free display the name or number download process. After the download is complete Bluetooth hands-free "Load Over".

Operation of the long press V or V-cancel ongoing downloads, Bluetooth hands will display "Load Cancel".

Certain brands of mobile phone doe

5) Voice newspaper

Select language to cable:

English voice reporting: Bluetooth hands-free release English voice "One, TWO, THREE", simultaneously displayed "English". Bluetooth hands-free call to the English voice phone number.

The Chinese Voice newspaper: Bluetooth hands-free release of Chinese voice "1, 2, 3, and display" Chinese ". Bluetooth hands-free call the Chinese voice at phone number.

Do not report No.: Bluetooth hands-free release the Beep No Report. Bluetooth hands-free call at the call number.

6) Delete the phonebook

Delete all contacts.

7) Delete call log

Delete all call records.

8) inverted LCD

Bluetooth hands-free display font upside down.

9) Back

Exit the menu and return to the main interface. You can also long press V or V-button to exit the menu.

LED indication

In the off state, the blue light is short flash.

In the connected state, the blue light flash.

Red light when charging, charging is complete the red light is off
