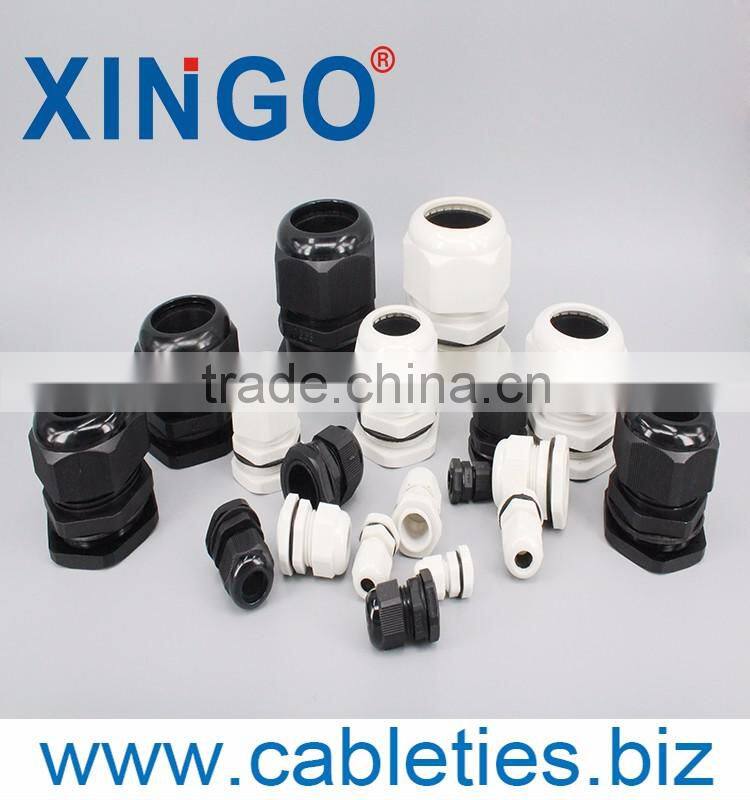

PG63 Electrical Waterproof Cable Gland

FOB Price

US$ 0.01 - 0.1 / Piece

1000 Pieces(Min. Order)

Port NINGBO /SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	XINGO
Model Number	XGS	Protection Level	IP68
Size	PG7~PG63	Material	Other, Nylon, Nylon or PP

Product Description

Specification

M type cable glands Sample free

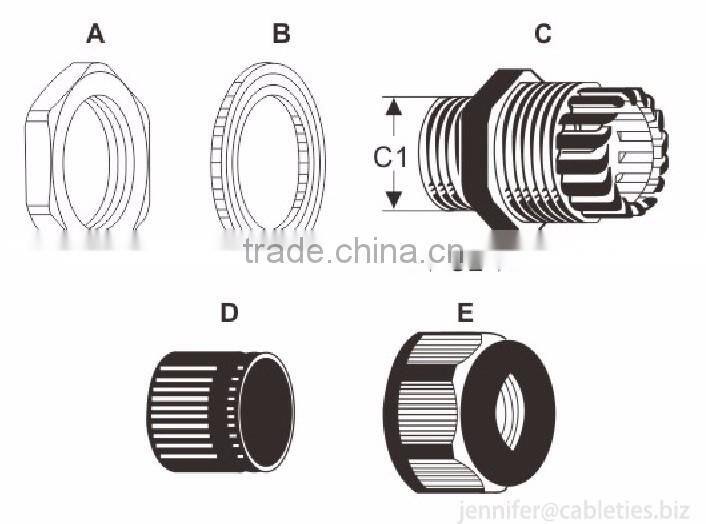

Material:UL approved nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.

Type	Cable diameter （mm）	Thread diameter C1（mm）	Thread length C2 (mm)	Wrench diameter （mm）
PG7	3-6.5	12.5	8	16	Standard type
PG9	4-8	15.2	8	19
PG11	5-10	18.6	8	22
PG13.5	6-11	20.4	10	24
PG16	10-13	22.5	10	27
PG19	12-15	24	10	27
PG21	13-18	28.3	10	33
PG25	16-21	30	11	35
PG29	18-25	37	12	42
PG36	22-32	47	14	52
PG42	32-38	54	14	60
PG48	37-44	59.3	15	64
PG63	42-50	71	28	77
PG7	2-5	12.5	8	16	Rubber ring thicken type
PG9	2-6	15.2	8	19
PG11	3-7	18.6	8	22
PG13.5	5-9	20.4	10	24
PG16	7-12	22.5	10	27
PG19	10-13	24	10	27
PG21	9-16	28.3	10	33
PG25	13-18	30	11	35
PG29	13-20	37	12	42
PG36	20-26	47	14	52
PG42	25-31	54	14	60
PG48	29-35	59.3	15	64
PG63	32-40	71	28	77

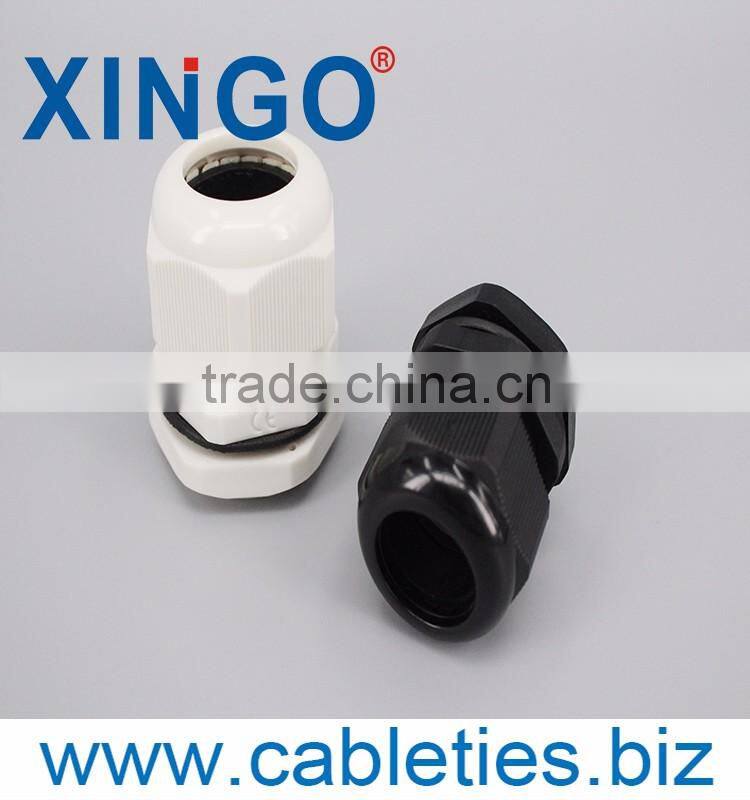

Detailed Images

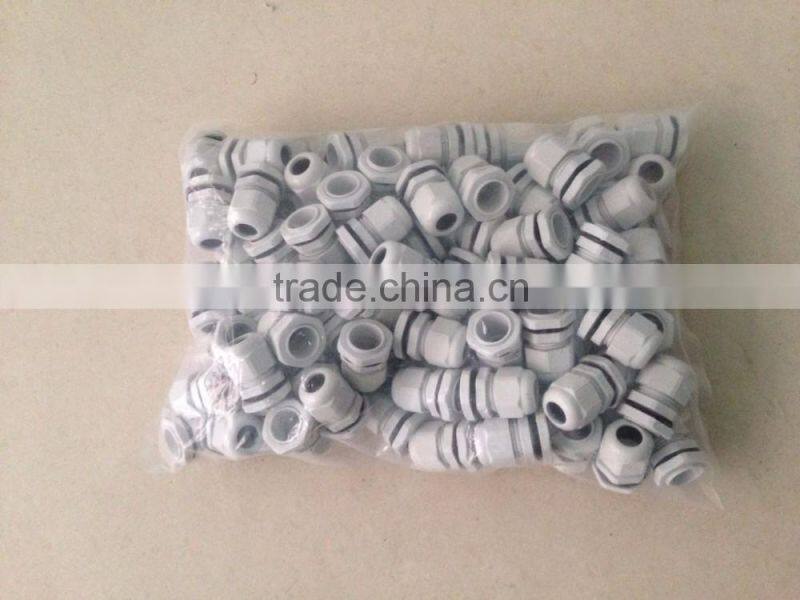

Packing

Packing:the cable ties will be packed in bag,then put into carton.this is our standard packing.

If you need packing as your design pls let us know!
