Specifications
Material: Carbon SteelNominal Diameter: 65-180mm
Certification:API 6A
Use: oil mining
Type: Petroleum wellhead equipment

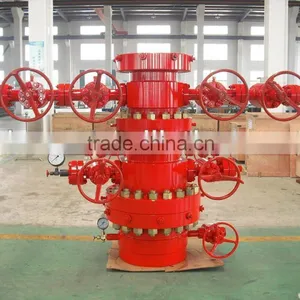

API Wellhead & Christmas tree/X-mas Tree for Oil and Gas Petroleum production wellhead equipment
Working pressure: 2,000psi to 20,0000psi
Nominal diameter: from 2.1/16" to 5.1/8"
Working medium: crude oil, gas, drilling fluid, gas contained H2S, CO2
Working temperature: -46°C to 121°C (L U)
Material class: AA, BB, CC, DD, EE, FF
Specification level: 1-4
Performance requirement: 1-2
API Wellhead & Christmas tree/X-mas Tree for Oil and Gas Petroleum production wellhead equipment
Our oil & gas production Christmas tree and tubing head are mainly used to produce gas and inject gas. The relative density of natural gas is low and gas column pressure is low, while well head pressure is high and liable to leakage regardless of gas production and gas injection. Sometimes natural gas contains corrosive media such as H2S and CO2. Therefore, the gas production Christmas tree calls for rigid requirements on both its materials and its sealing characteristics. For the sake of safety, two gate valves are used on the tubing and casing respectively. Some gate valves to be used on high pressure and ultra-high pressure gas wells are integrated valves manufactured from high quality forged steel.
API Wellhead & Christmas tree/X-mas Tree for Oil and Gas production--Inner structure
API Wellhead & Christmas tree/X-mas Tree for Oil and Gas Petroleum production wellhead equipment
API Oil & Gas Extraction Equipment X-mas Tree--Installation site:
API Wellhead & Christmas tree/X-mas Tree for Oil and Gas Production Petroleum production wellhead equipment
Feel free to email me for more details and welcome to visit our factory as well.
