API V11-250 Standard Valve Ball and Seat for Subsurface Oil Well Rod Pump
Negotiable
MOQ: 600 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
URUMQI/Tianjin/Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pump Ball and Seat/API Valve Ball and Valve Seat/SS Ball and Valve SeatNegotiableMOQ: 50 Pieces -
API 11AX Oilfield Sucker Rod Pump PlungerUS$ 300 - 1,000MOQ: 1 Piece
-
API 11AX Oilwell Subsurface Conventional Tubing Pump for Oil ExtractionUS$ 100 - 1,000MOQ: 1 Piece
-
API Suker Rod Tubing Pump Manufacturer From ChinaUS$ 400 - 1,500MOQ: 1 Set
-
API Suker-rod Tubing Pump Manufacturer From ChinaUS$ 400 - 1,500MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Ball
Pressure
High Pressure
Power
Pneumatic
Material
Alloy
Temperature of Media
High Temperature
Media
Oil
Place of Origin
Henan, China
Model Number
API standard
Brand Name
PYZS
Specifications
1. API 11AX;2. Alloy, SS or Titanium carbide
3. Wear-resistant parts
4. OEM/ODM
5. Anti-corrosion
Description:
♦ Material: cobalt-base alloy, nickel -base alloy and stellite alloy, Titanium carbide and other corrosion resistant material.
♦ Application fields: Subsurface pump/Oilfield Tubing pump/Insert pump, sealing, it is widely used in petroleum industry and other anti-corrosion machine parts.
♦ Properties: good resistance against corrosion and oxidation;

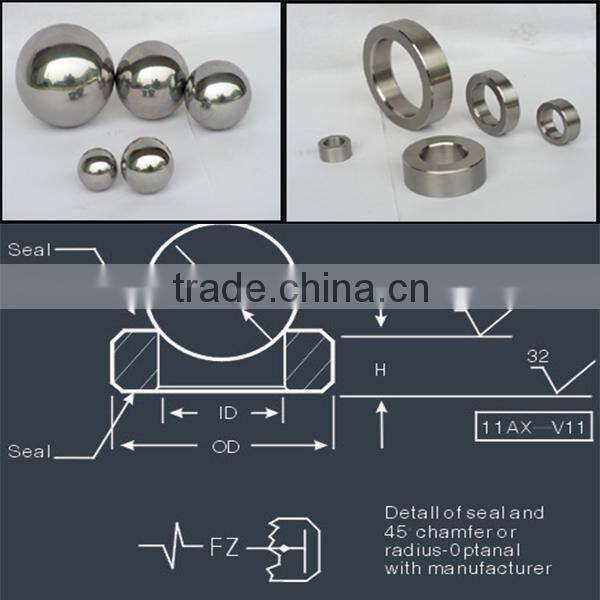

Model No. VS Diameter
API No. |
Seat Size |
Ball Size |
| V11-106 | 1-1/16" | 5/8" |
| V11-125 | 1-1/4" | 3/4" |
| V11-150 | 1-1/2" | 15/16" |
| V11-175 | 1-3/4" | 1-1/8" |
| V11-200 | 2" |
1-1/4" |
| V11-225 | 2-1/4" | 1-3/8" |
| V11-250 | 2-3/4" |
1-1/16" |
| V11-375 | 3-3/4" |
2-1/4" |
Chemical Composition (%)
| ITEM | C | Cr | W | Mn | Si | Ni | Fe | HRS | g/cm³ |
| Ball | 2.8-3.0 | 33.0-36.0 | 17.0-19.0 | 0.4max | 1.0max | 2.5max | 2.5max | 56-63 | 8.6-8.8 |
| Saddle | 2.0-2.4 | 30.0-34.0 | 12.0-14.0 | 1.0max | 1.0max | 3.0max | 3.0max | 50-56 | 8.5-8.8 |

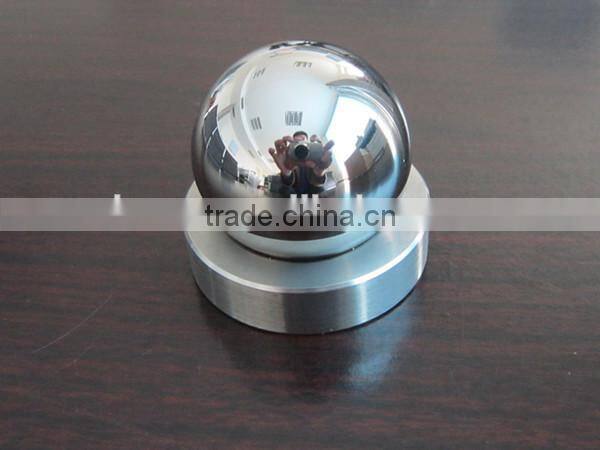

API V11-250 Standard valve ball and seat for Subsurface oil well rod pump
API V11-250 Standard valve ball and seat for Subsurface oil well rod pump
API V11-250 Standard valve ball and seat for Subsurface oil well rod pump
Feel free to call me for more details (Cel: 0086 15136286271), the price will be sent to you within 20 minutes!
