Specifications
walk in Koller Chiller cold room for long time vegetables fruits storage1, 2HP copeland
2,150mm
3,free oversea installatio

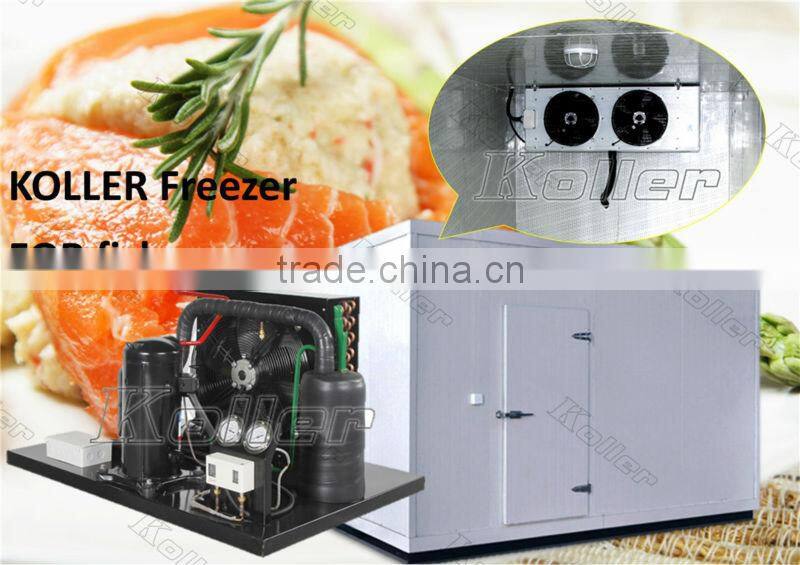

KOLLER VCR COLD ROOM /WALKING in refrigerator
For fishery and food processing

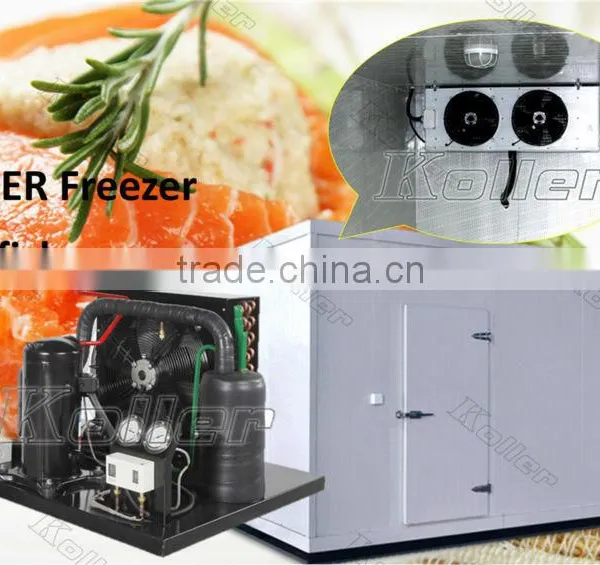

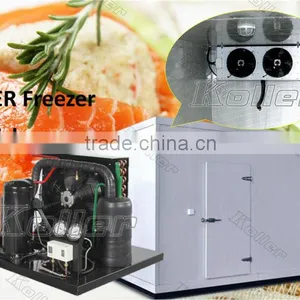

condensing unit, air cooler, cold room panel

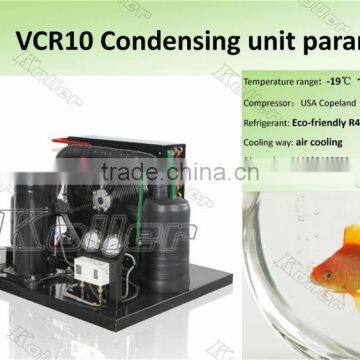

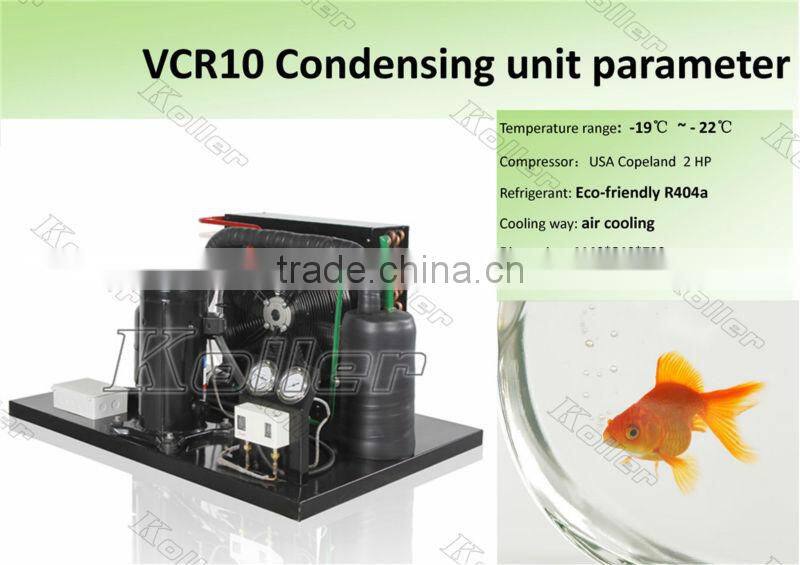

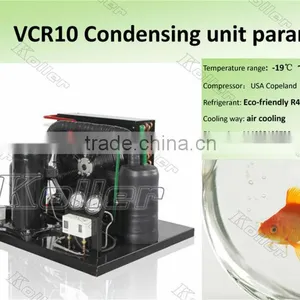

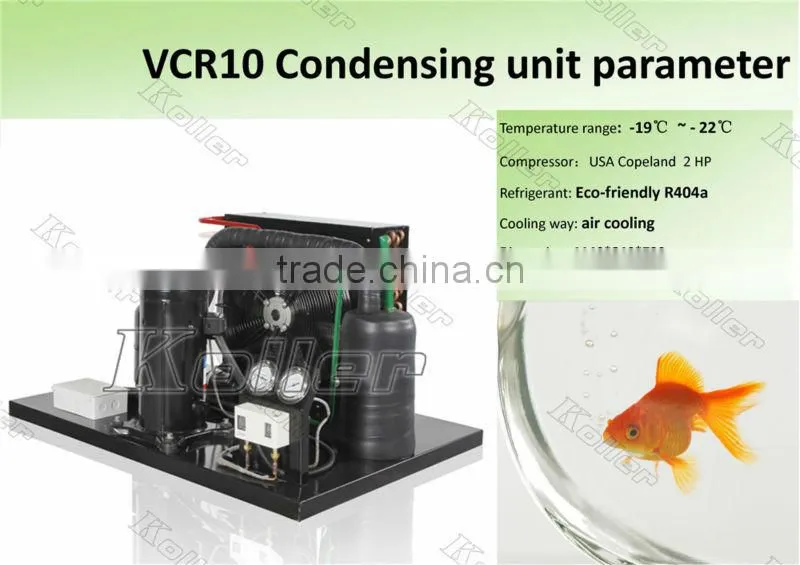

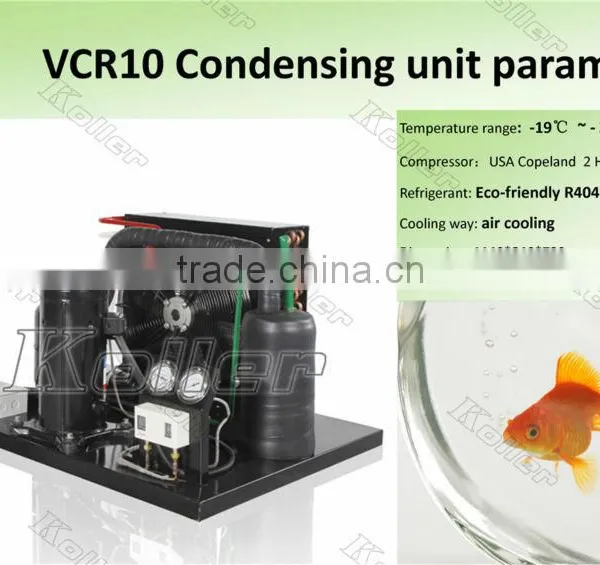

Condensing unit install outside the cold room:
Temperature is 1~-2 Degree for vegetable and fruit preserve.
2hp Copeland scroll type compressor for USA
refrigerant: Eco-friendly R404a

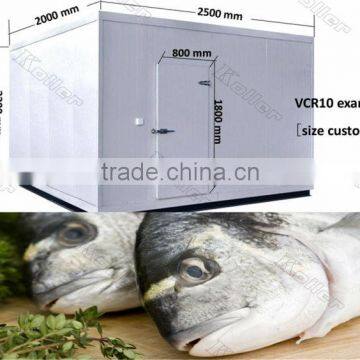

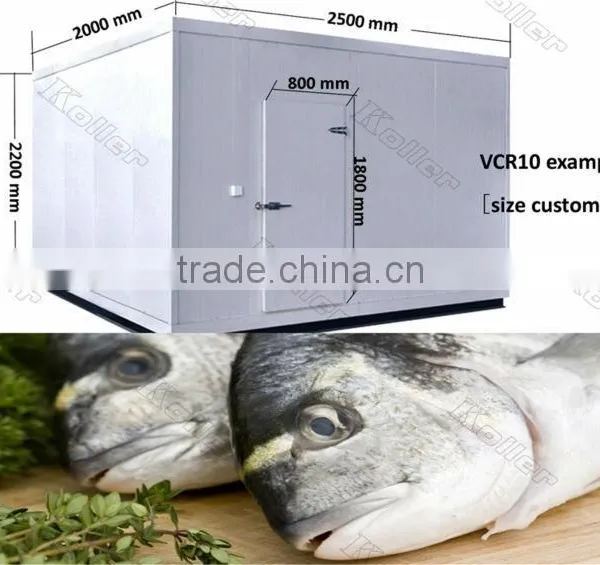

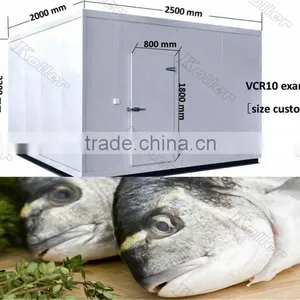

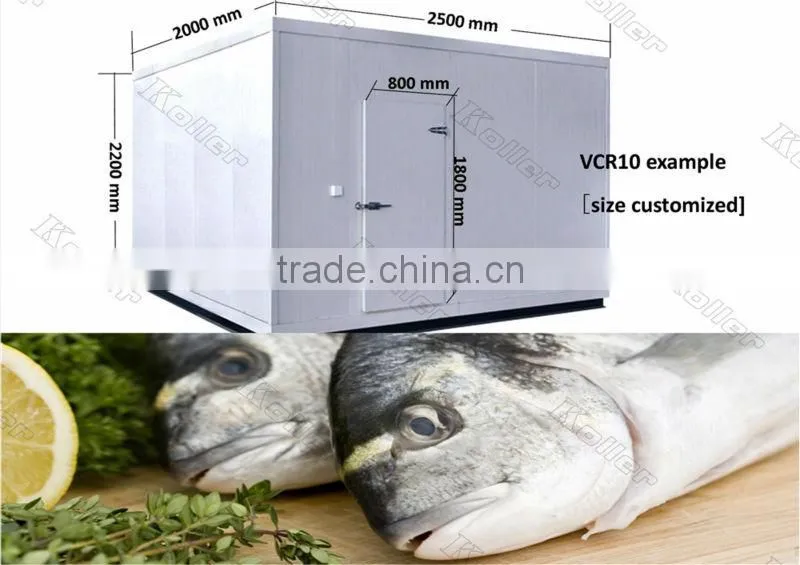

VCR10 Exterior size:2500*2000*2200mm
the door: hinge type for the little capacity one,
the size:800*1800 mm is our standard design
For the bigger one:
Door: sliding door:1800*2200mm

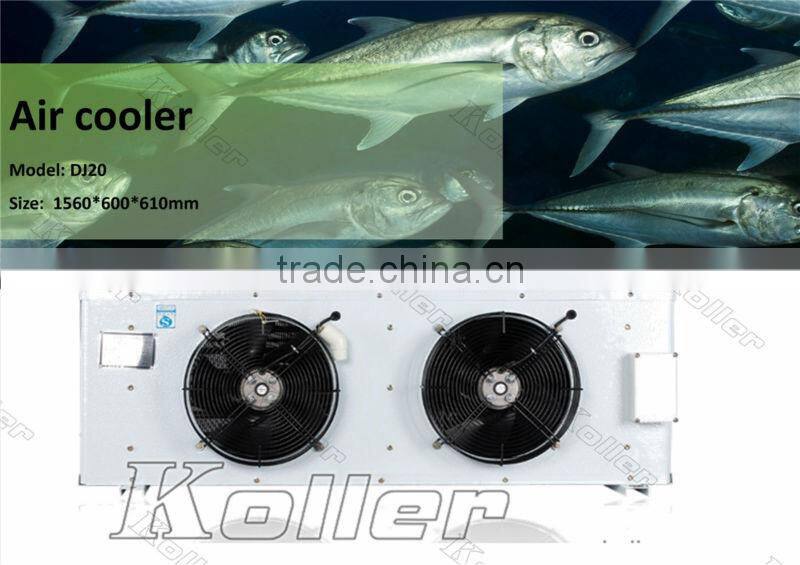

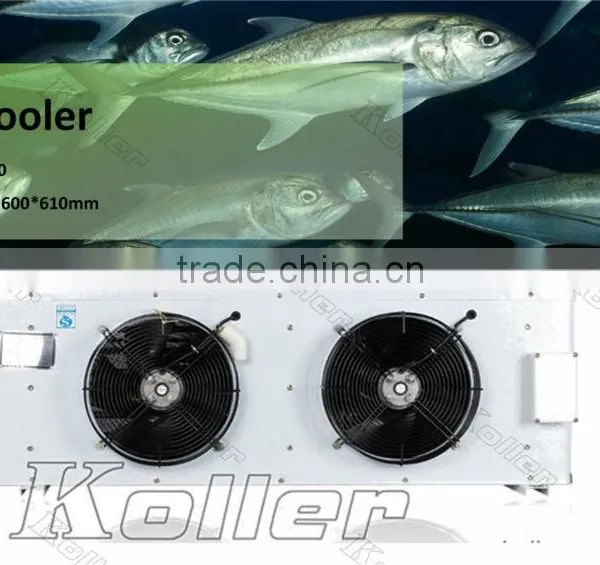

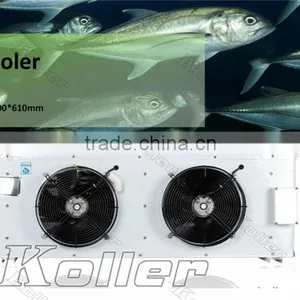

Air cooler in the cold room

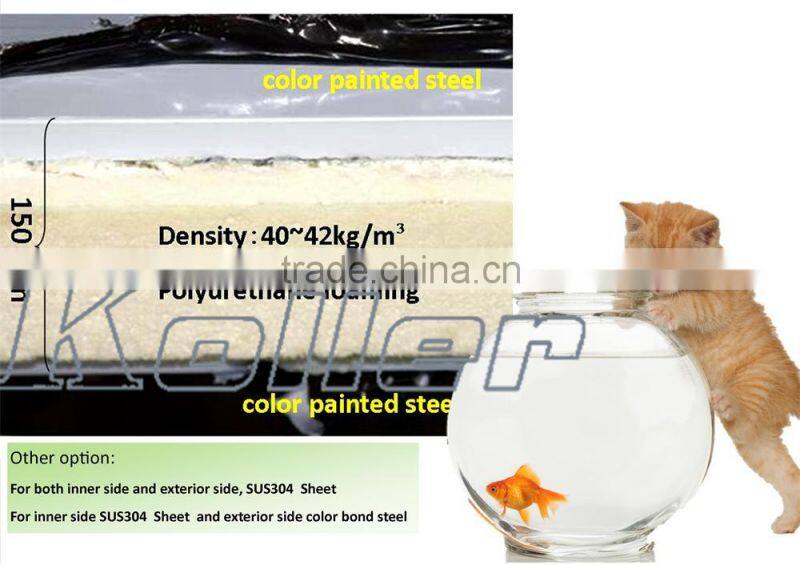

double size color bond painted steel
and the thickness is 100mm
density is 40~42 kg/m³
SUS304 sheet optional
The room zise is just for your information, we will collect the price according to the cold room application and volume.
Model |
Contents |
Size L*W*H(mm ) |
VCR10 |
Cold room size |
2500*2200*2000 |
2HP Copeland scroll |
1140*840*730 |
|
DL12 air cooler |
1560*600*610 |
|
VCR20 |
Cold room size |
3000*3000*2300 |
3HP Copeland scroll |
1110*980*790 |
|
DL20 air cooler |
1480*550*700 |
|
VCR30 |
Cold room size |
4000*3000*2500 |
4HP Copeland scroll |
1350*1140*810 |
|
DL30 air cooler |
1670*620*700 |
|
VCR40 |
Cold room size |
4000*4000*2500 |
6HP Copeland scroll |
1315*935*1030 |
|
DL40 air cooler |
1560*595*680 |
|
VCR50 |
Cold room size |
5000*4000*2500 |
6HP Copeland scroll |
1315*935*1030 |
|
DL40 air cooler |
1560*595*680 |
|
VCR100 |
Cold room size |
8000*5000*2500 |
10HP Bitzer compressor |
1560*1090*1120 |
|
DL100 air cooler |
2190*710*840 |
Note: The cold room size can be customerized according to your install place, but if the lenght and width is both exceed 7000mm , we may need ceiling the roof, we will charge the ceiling material fee, and installation fee.
Shenzhen China
available:

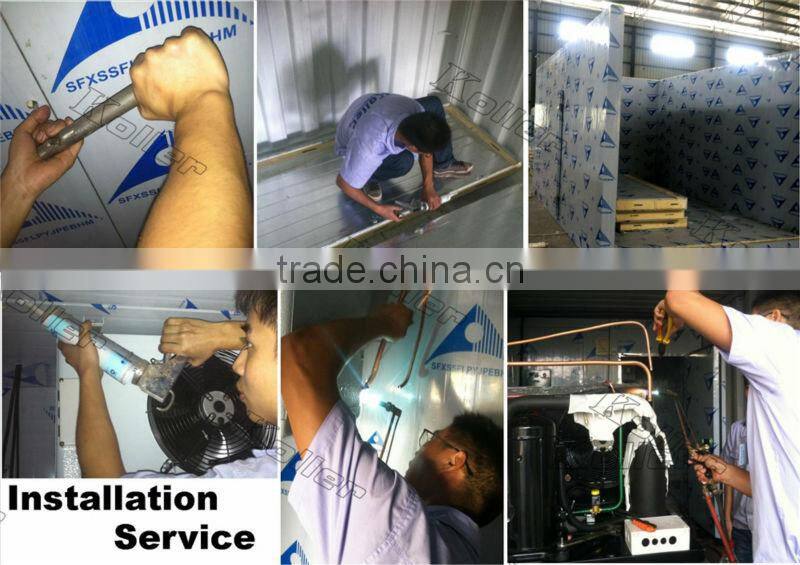

According to the cold room size, and workload, the free service period is different, if you need we send our enginner to install the cold room, we need your side be reponsible for the VISA, accormadation , food , and we need somebody know Chinese accompany.

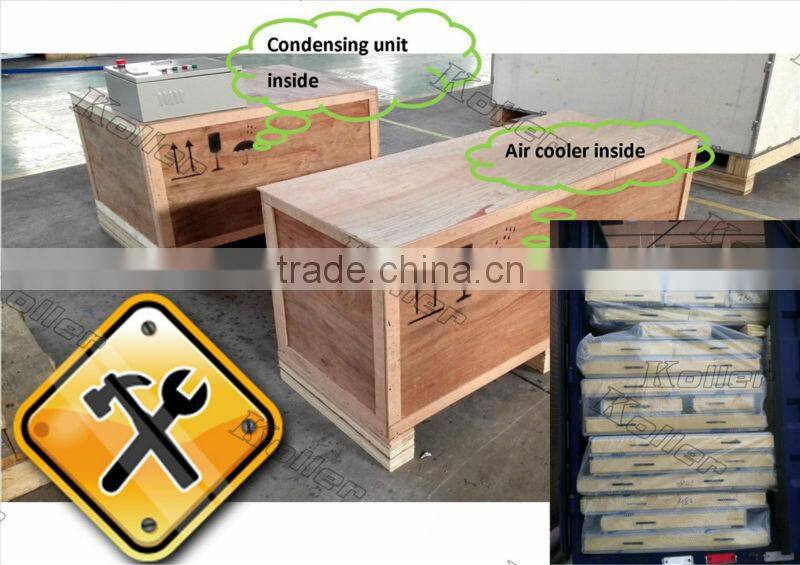

the condensing unit and air cooler will be packed in plywood case,
the cold room will be wraped in bubble film, and shipping by CKD

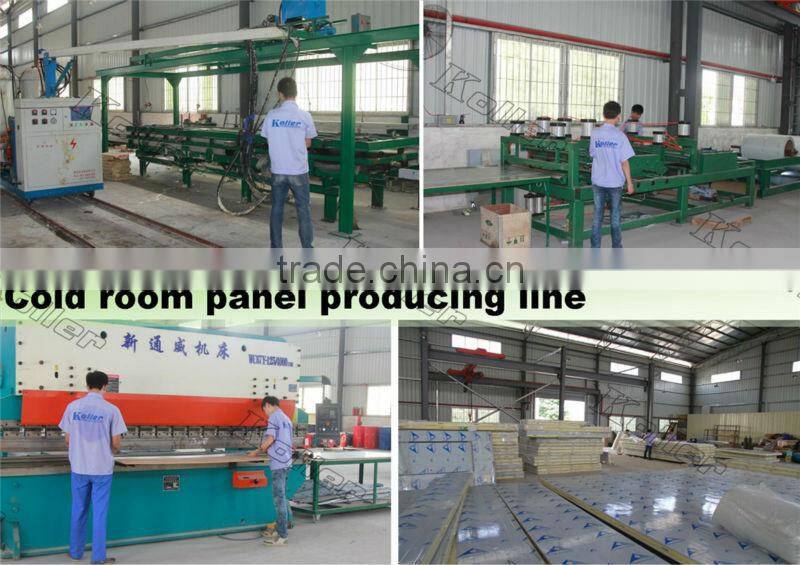

Koller cold room panel producing line

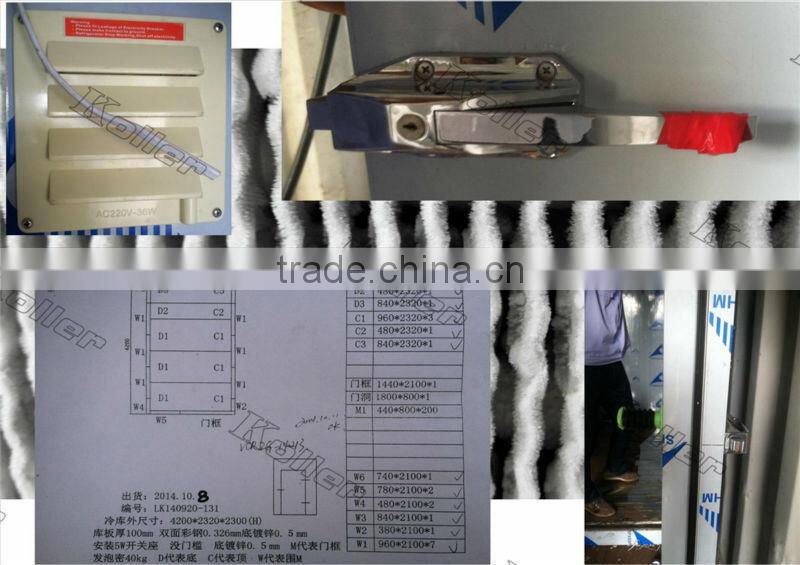

Details, balance window, handle with lock, the installation drawing, and the hinge door
///////////// welcome to Koller refrigeration company ////////////////
///////////////////////////// Q&A: ////////////////////////////
Refrigerator: -5~-15°C for ice storage
Freezer: -15~-25°C for meats and fish frozen
