Factory Direct Sales Knuckle Boom 3T 10T 12 T 18T 20T 25T 30T 80T 120T 160T Truck Mounted Crane

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Construction,transportation,lifting,pickup,etc
Max. Lifting Load	80T @ 4m	Max. Lifting Height	17m
Place of Origin	Hubei, China	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

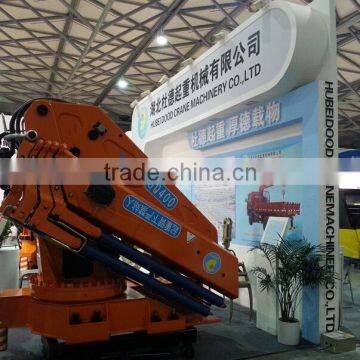

Knuckle Boom Truck Mounted Crane
Model	SQ80ZB2	SQ200ZB4	SQ240ZB4	SCQ360ZB4	SQ400ZB4	SQ500ZB4	SCQ600ZB4	SQ1600ZB6	SQ2400ZB6	SQ3200ZB6
Max Lifting Moment	80 Kn.m	200 Kn.m	240 Kn.m	360 Kn.m	400 Kn.m	500 Kn.m	600 Kn.m	1600 Kn.m	2400 Kn.m	3200 Kn.m
Max Lifting Capacity	3.2 T	10 T	12 T	18 T	20 T	25 T	30 T	80 T	120 T	160 T
Max Lifting Height	10.5 m	13 m	13 m	14.5 m	15 m	14.7 m	14.5 m	17 m	14 m	16.3 m
Working Radius	7.58 m	11.1 m	11.2 m	11.4 m	11.55 m	11.5 m	11.5 m	15.2 m	13 m	15.44 m
Boom Section	2	4	4	4	4	4	4	6	6	6
Rotation Angle	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous
Rated Working Pressure	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa	28 Mpa
Rated Oil Flow	30 L/min	60 L/min	60 L/min	60 L/min	80 L/min	80 L/min	80 L/min	110 L/min	110 L/min	110 L/min
Outrigger Span	2160-3330mm	2300-5600mm	2300-5600mm	2320-5820mm	2300-5900mm	2300-5900mm	2308-6120mm	2472-7967mm	2490-7985mm	2490-7985mm
Crane Weight	1500kg	3300kg	3500kg	4600kg	5100kg	6250kg	6900kg	14100kg	18500kg	25500kg
Installation Space	850mm	1100mm	1250mm	1250mm	1250mm	1450mm	1450mm	2540mm	2570mm	2910mm

Features:

• HG785 high strength steel, self- light weight, small volume and quick working.

• Hydraulic pump and vavles imported from Italy,stable performance and long life cycle.

• China famous brand hydraulic cylinder, low failure rate, long life cycle, stable performance.

• Hexagonal boom,formed with one welding line, with high intensity, good toughness, light weight and greater lifting capacity.

• Lifting capacity allow 25% overload
