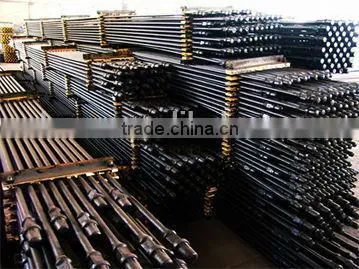

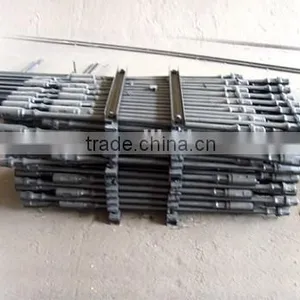

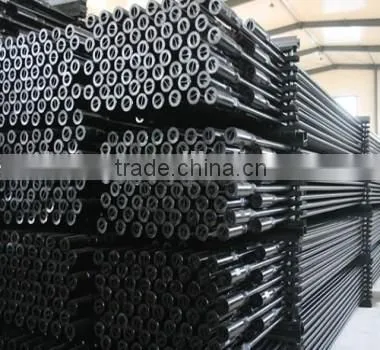

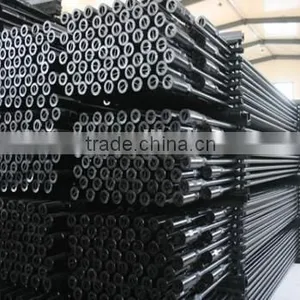

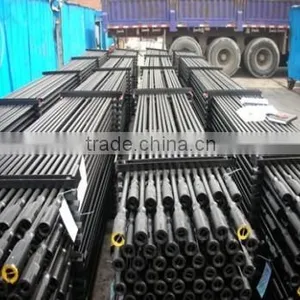

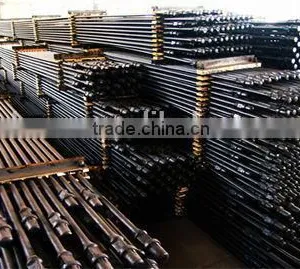

Help CenterK & kd Grade API Sucker Rod Used for Oilfield With Competitive Price
Related Products
-
SUCKER ROD HOOK /oilfield HookUS$ 0.3 - 2MOQ: 500 Pieces -
Factory Supply API 11B Standard Polish Rod for Oil ExtractionUS$ 100 - 300MOQ: 100 Pieces
-
API 11B Standard Factory Supply Oilfield 25ft Sucker Rod With Full Size T Coupling for Oil Extraction on SaleUS$ 1 - 20MOQ: 10000 Meters
-
Best Price Sucker Rod for Oil WellUS$ 40 - 100MOQ: 1 Piece
-
API Grade Pumping Rod With Low Price by FactoryUS$ 50 - 200MOQ: 1 Set
Our conventional sucker rods are API monogrammed.
Grade C sucker rod ,Moderate strength, not susceptible to sulfide stress cracking, suitable in sour medium.
Grade D sucker rod, Made of quality heat treated steel alloy, with high tensile and yield strength; suitable for non-corroding or mildly corroding environment.
Grade K, KD sucker rod, With good corrosion resistance in H2S, CO2 and NaCl media, superior tensile strength.
Grade HL and HY sucker rod, High strength; structure and size matching with grade D sucker rod; withstanding 966-1, 136 MPa (140, 000-164, 720 psi); suitable for deep and large displacement
wells.
v
Sucker Rod Specifications
|
Size in (mm) |
Rod Body diameter in (mm) |
diameter of ext. thread |
Full size Coupling OD mm (in) |
Coupling OD mm (in) |
Wrench square W*L mm (in) |
Length series m (ft) |
5/8 (16) |
5/8 (15.88) |
15/16 (23.81) |
38.10(1.5) |
31.8 (1.25) |
22.2×31.8 (7/8×1-1/4) |
7.62 (25) |
3/4 (19) |
3/4 (19.05) |
1-1/16(26.99) |
41.28(1.625) |
38.1 (1.5) |
25.4×31.8 (1×1-1/4) |
9.14 (30) |
7/8 (22) |
7/8 (22.23) |
1-3/16 (30.16) |
46.0(1.812) |
41.3 (1.625) |
25.4×31.8 (1×1-1/4) |
0.6 (2), 1 (3) |
1 (25) |
1 (25.40) |
1-3/8 (34.93) |
55.6(2.187) |
50.8 (2) |
33.3×38.1(1-5/16×1-1/2) |
2 (6), 3 (10) |
1-1/8 (28) |
1-1/8 (28.58) |
1-9/16 (39.7) |
60.33(2.375) |
57.2 (2.25) |
38.1×41.3 (1-1/2×1-5/8) |
|

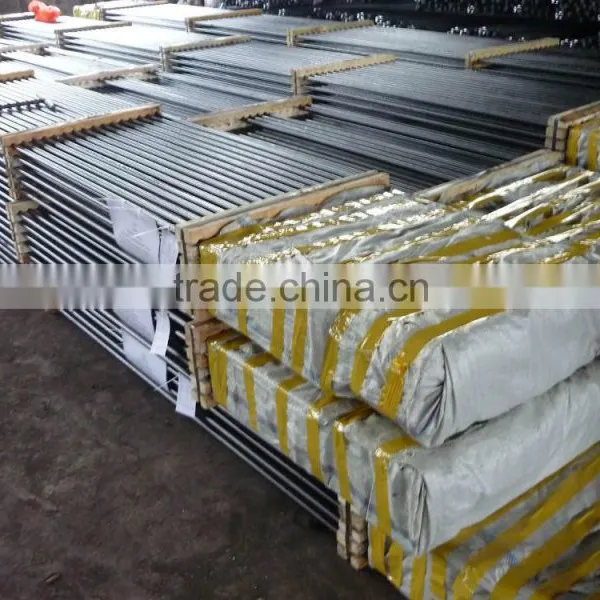

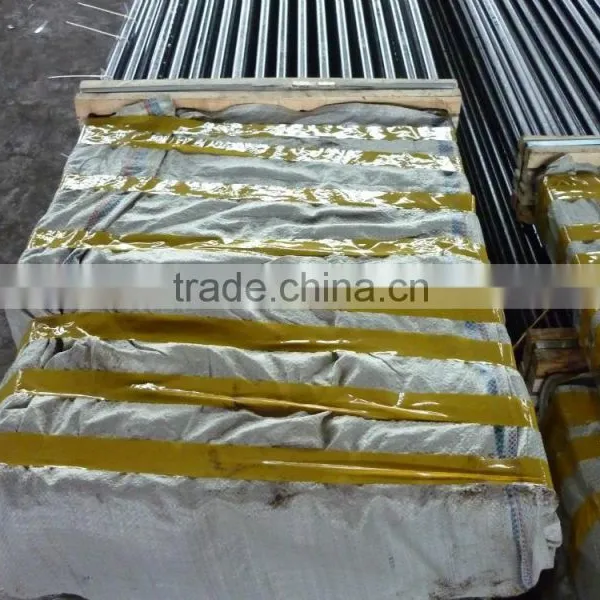

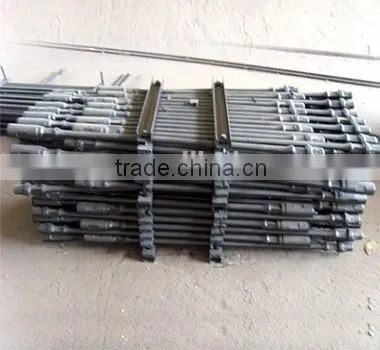

| Packaging Detail: | 1.Sea worthy packaging, Fixed With Iron Frame, then in Iron box. 2.Container type: 40'OT/40'GP Quantity of every container : 1300 pieces (take 3/4"-25ft as example) 2.By negotiation with customers according to orders. |
| Delivery Detail: | Within 15-20 working days after depost normally |
5* 24 hour pre-sale, sale and after-sale service
