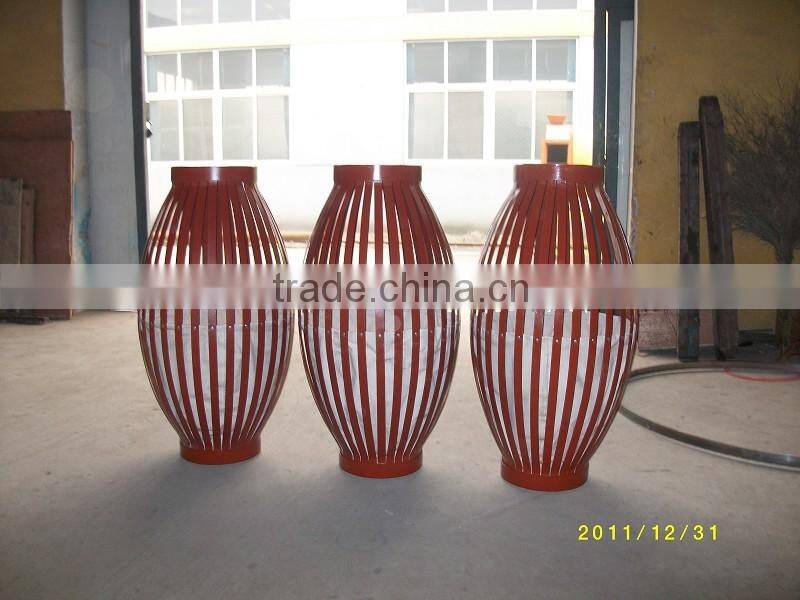

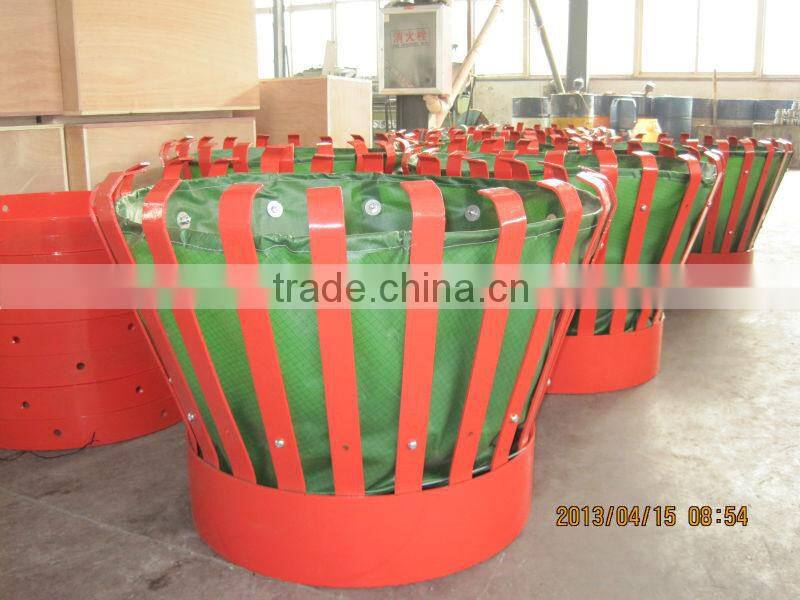

cementing basket with cloth

Specifications

1. Cementing basket with canvas
2. Size: 4" ~20 "
3. Grade: 65Mn
4. Material: spring steel
5. Competitive price

                                                     API cementing basket /cement basket/petal basket



Cementin Basket Description



Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered. It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.





Cementing Basket Specifications:



Casing size	NO. of Bows	Total Length	Basket O.D.		Min. Hole Size
In.			in	mm	in
4 1/2	10	24 1/2	12 1/2	317.5	6
5	10	24 1/2	13	342.9	6
5 1/2	12	24 1/2	13 1/2	342.9	7 1/4
6 5/8	12	24 1/2	14 5/8	371.5	8 3/8
7	14	24 1/2	15	381.0	8 3/8
7 5/8	14	24 1/2	15 5/8	396.9	9 1/2
8 5/8	16	24 1/2	16 5/8	422.3	10 5/8
9 5/8	18	24 1/2	17 5/8	447.7	11 5/8
10 3/4	18	24 1/2	18 3/4	476.3	12 3/4
11 3/4	20	24 1/2	19 3/4	501.7	13 3/4
11 3/8	24	24 1/2	21 3/8	542.9	15 1/2
16	28	24 1/2	24	609.6	18
18 5/8	34	24 1/2	26 5/8	676.3	20 5/8
20	34	24 1/2	28	711.2	22
