Specifications
1.used for oil drilling fluid cleaning and recycling2.5grade mud purification
3.reversible circulation
4.total access contrl
Well Drilling Mud Solid Control Equipmnets

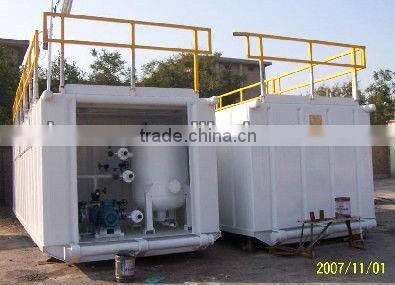

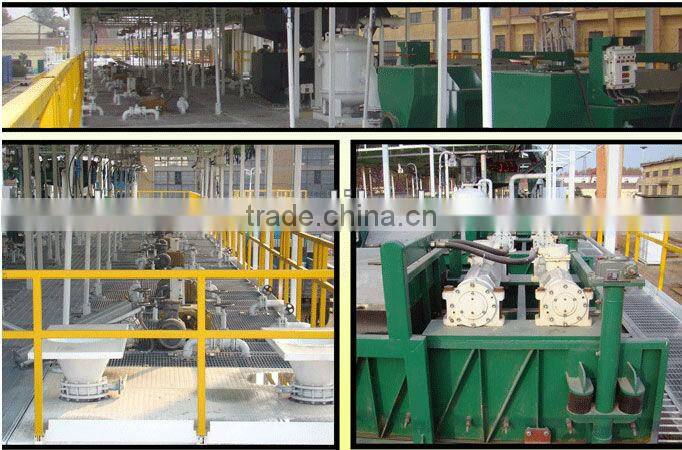

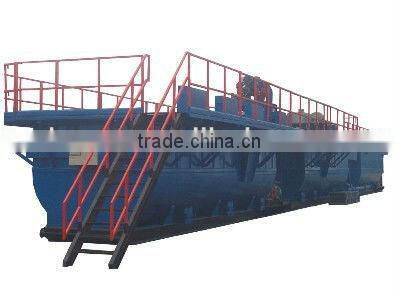

Pictures:
Brief Introduction:
The mud circulating system has 5 grade purification equipment to achieve the mud purification. The weight pump can make up mud to one bin separately, but also can make up mud to any other tank but tapered tank. The mud pump can offtake mud from any other tank but tapered tank, which can meet different needs.
And using the corrugated sheet structure,and with the "five stages purification,control of total access,total intrinsically safe circuit",the mud circulation tank is well received by the drilling crew.
The main features :
1.With the corrugated sheet structure,the tank body has the advantage of high strength, elegant appearance,and reduce the weight of tank body.
2.The solids control equipments are rationally distributed,and up to five stages purification(rough
screening,degas,desand,desilt and centrifugation),and optimum the performance of the mud.
3.With the zinc-coated steel grating,the tank level isfine-looking,portable,corrosion-resistant,and so on.
4. The tank bodys are connected by pneumatic tyre unions and glass steel tubes,so they have the advantages of fine-looking,installation easily,reliable seel,and so on.
5.The tank body has a big capacity,usable capacity is up to 480m3.
6.The water supply is automatic control,and every tank or compartment can be supplied water at the same time.
7.Used ocean specialized paint for corrosion protection and well materials,the tank has high surface strength,and is fine-looking,wear well

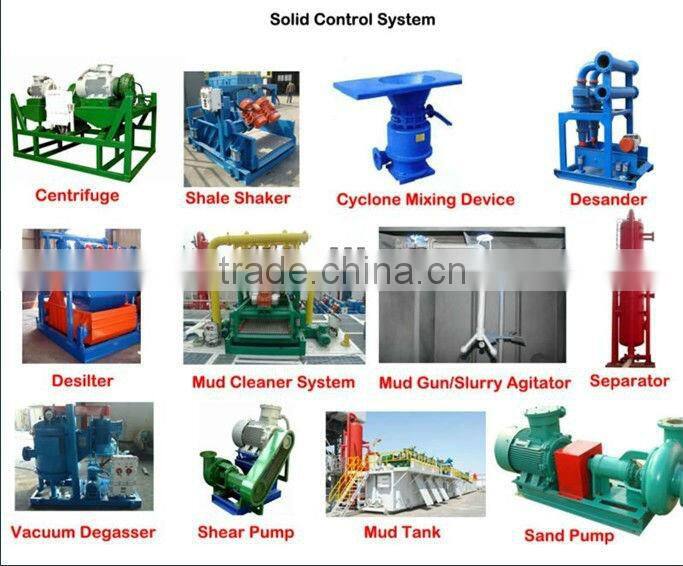

Main Component:
Parameters:
|
Model parameter |
ZJ30 rig mud circulating system |
ZJ40 rig mud circulating system |
ZJ50 rig mud circulating system |
ZJ70 rig mud circulating system |
Qty. of mud tank |
4 Sets |
5 Sets |
7 Sets |
7 Sets |
Effective Volume |
≥150 m3 |
≥180 m3 |
≥230 m3 |
≥320 m3 |
Rated pressure of low -pressure mud piping |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
System temperature |
-20~40°C |
-20~40°C |
-20~40°C |
-20~40°C |
