Drilling Desander

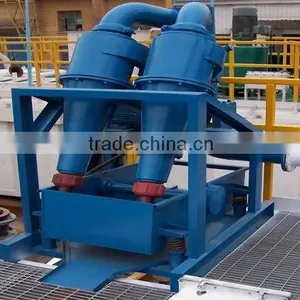

Drilling Desander thumbnail-1
Drilling Desander photo-1
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
zhongshi
Model Number:
all
Contact Supplier Request Quote Chat Now
Puyang Zhongshi Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name zhongshi
Model Number all

Specifications

1. API Desander
2. Made from high-resistant material. 10", 12" Hydrocyclones are available

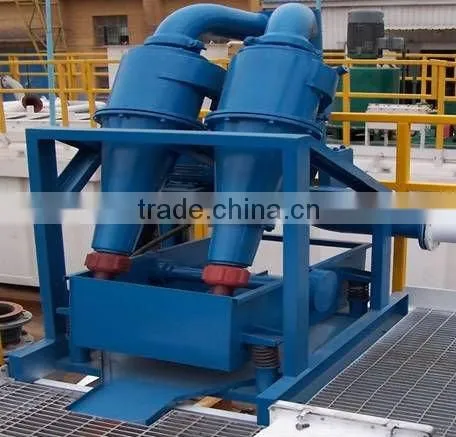

Desander
     ZQJ Desanding cleaners is used to remove out the smaller solid-phase particles. Compared to the past one ,this device has been improved by 30% -50% in desanding efficiency, resulting in a reliable guarantee of the drilling speed increased and the drilling costs saved. It also can play the role of cleaner of sand and mud in the deep well.


Structural characteristics:
  the composition with the base and support, a damping spring, hydrocyclones, the vibrating screen and so on. Thereinto ,the hydrocyclone has the polyurethane lining and the aluminum alloy shell ,and the aperture of the below outlet is adjustable according to different requirements .



Technical parameters:

Name

Parameters

nominal diameter of hydrocyclone   (mm )

300

The number of hydrocyclone    (pcs)

2

Handling capacity     ( m3 / h )

100-200

Critical particle size  ( μm )

50-150

Working Pressure   ( Mpa )

0.2-0.4

Excitation rotating speed ( r / min  )

1400

Screen area    ( mm2 )

1240 × 585

Electric power of motor  ( kw )

1.1

Shape size   ( mm )

1400 × 1030 × 1700

Total weight ( kg )

750

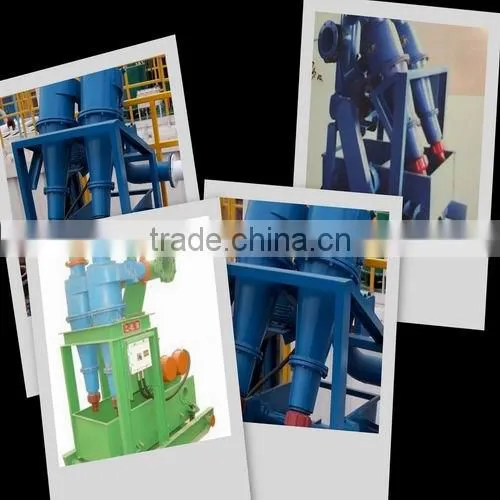

Drilling Desander
