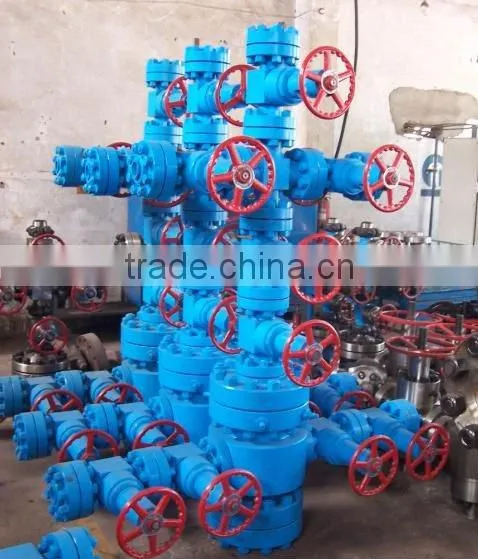

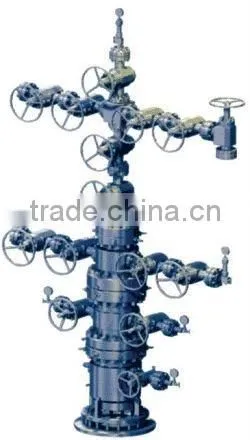

Help CenterWellhead Assembly Series
Related Products
Specifications
1. Wellhead valve and casing head2. ISO 9001/API-6A
3. Forging, strong pressure, anti-corrosion
4. Standard grade: PSL-S
Description:
1.All core parts are forged, ensuring them with high load vearing capability.
2.Max working pressure: 15000lb
3.Max hanging load: 661386lb
4.All these item meet following API 6-certificate:
5.Standard grade: PSL-S
6.Performance grade: PRI
7.Temperature grade: L, P, S, T, U, V
8.Materials grade: AA, BB, CC, DD, EE, FF

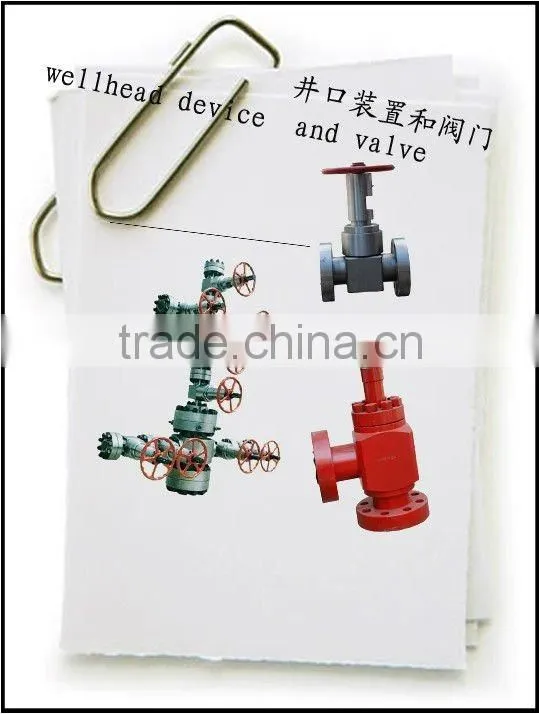

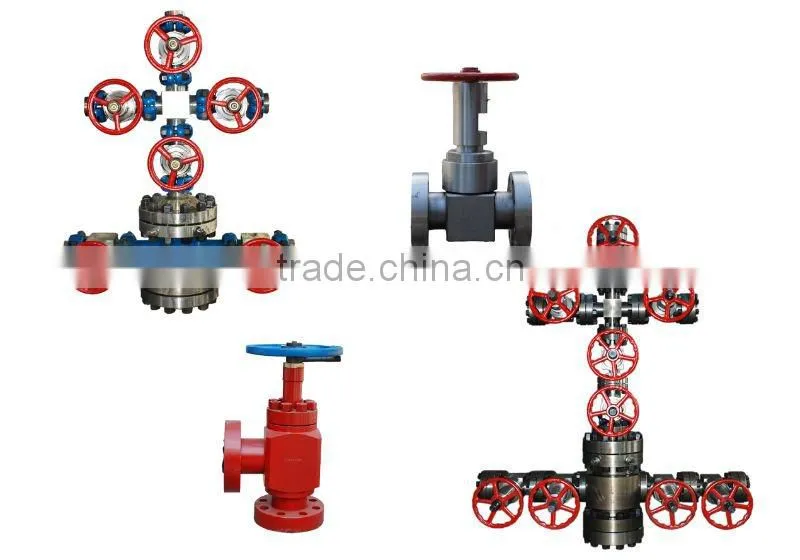

Wellhead valve Specification:
Spec mode |
Spec class |
Performance level |
Material grade |
KY65-21 |
PSL1 |
PR1 |
BB |
KY65-29 |
PSL1 |
PR1 |
BB |
KQ65-35 |
PSL2 |
PR1 |
DD |
KQ65-60 |
PSL2 |
PR1 |
DD |
KQ65-70 |
PSL3 |
PR1 |
EE |
KQ65-105 |
PSL3 |
PR1 |
EE |

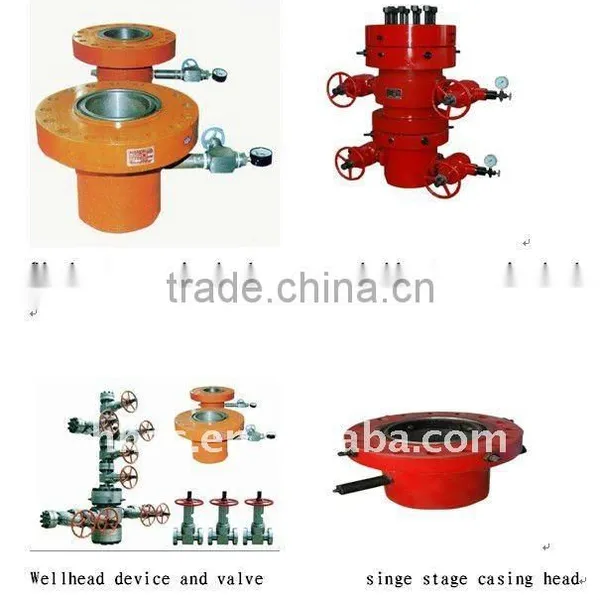

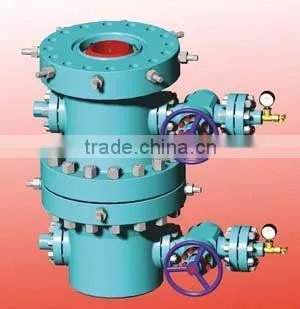

casing head description:
Casing head is a standard assembly with mandrel and anchor hanger inside the shell. According to different casing fixing procesure and wellead conditions ,different sized casing and hanger are used correspondingly.API6B, or API 6BX flange are used on top of the casinghead. The side outlet of it can be customized to line pipe thread or section threaded. Simplified pressurization casihead is also available.
35Mpa casing head specification:
Name |
Casinghead |
Type |
T9-5/8″×5-1/2″-35 |
Upright Dia |
228mm |
Suspen Dia |
121.3mm |
Rate working presure |
35Mpa |
Largest outside Dia |
672mm |
Height |
450mm |
Weight |
650Kg |
Rate suspen load |
200T |
Airproof steel circle |
BX160 |
