API Certificated Drill Pipe Screen Price

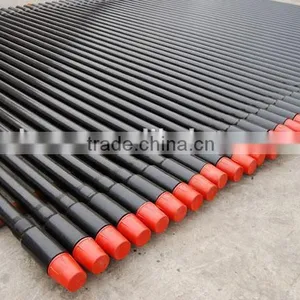

API Certificated Drill Pipe Screen Price thumbnail-1
API Certificated Drill Pipe Screen Price photo-1
US$ 450 - 1,200 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ZS
Model Number:
Drill Pipe, Seamless, 2 3/8"-4 1/2''
Contact Supplier Request Quote Chat Now
Puyang Zhongshi Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao and other Chian Main Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name ZS
Model Number Drill Pipe, Seamless, 2 3/8"-4 1/2''
Type Drill Pipe
Machine Type Drilling Tool
Certification API
Material Carbon Steel
Processing Type Casting
Use Well Drilling

API Certificated Drill Screen Pipe price



1) drill pipe OD: 2 3/8", 2 7/8", 3 1/2", 4", 4 1/2", 5", 5 1/2"



2) API drilling pipe Steel Grade: E75, X95, G105, S135


3) Type of end finish: EU-external upset,

                                  IEU-internal & external upset

4) All seamless steel drill pipes are made according to API 5 Drill pipe standards.



5) We can provide seamlesssteel pipe according to customers' requirements.



6) Wall thickness: 7 - 12.7 mm or 2 3/8"-5 1/2"



7) length: 5.49-12.5m



Regarding the Drill Pipe, the OD from 2 3/8” to 5 1/2” and steel grade from E75 to S135. Mainly used in oil and gas exploration and development process of deep well, horizaontal well and extended reach well. With the Hardbading and Internal Coating.

Hardbanding:

  1. Avoid drill pipe wear and prolong life
  2. Avoid friction caused by thernal cracking failure of drilling joints.
  3. The wear-resisting coefficient has reduced performance with wear casing.

Harbanding Type:

  1. Arnco-100XT
  2. Arnco-200XT
  3. Arnco-300XT
  4. AMRMACO M
  5. TCS 8000
  6. BoTn 3000
  7. BoTn 1000

    Technical Parameters:



Spec Weight Flat-end Weight External Diameter D Wall Thickness t Grade Upset Type
lb/ft
Kg/m
inch
mm
inch
mm
2-3/8 6.65 6.27 9.33 2.375 60.3 0.280 7.11 EXGS Upset
2-7/8 10.4 9.72 14.47 2.875 73.0 0.362 9.19 EXGS Upset
3-1/2 13.3 12.32 18.34 3.500 88.9 0.368 9.35 EXGS Upset
3-1/2 15.5 14.64 21.79 3.500 88.9 0.449 11.4 EXGS Upset
4 14.0 12.95 19.27 4.000 101.6 0.330 8.38 EXGS Int Upset
4-1/2 16.6 15.00 22.32 4.500 114.3 0.337 8.56 EXGS Int-Ext Upset
4-1/2 20.0 18.71 27.84 4.500 114.3 0.430 10.92 EXGS Int-Ext Upset
5 19.5 17.95 26.70 5.000 127.0 0.362 9.19 EXGS Int-Ext Upset
5 25.6 24.05 35.80 5.000 127.0 0.500 12.7 EXGS Int-Ext Upset
5-1/2 21.9 19.83 29.52 5.500 139.7 0.361 9.17 EXGS Int-Ext Upset
5-1/2 24.7 22.56 33.57 5.500 139.7 0.415 10.54 EXGS Int-Ext Upset

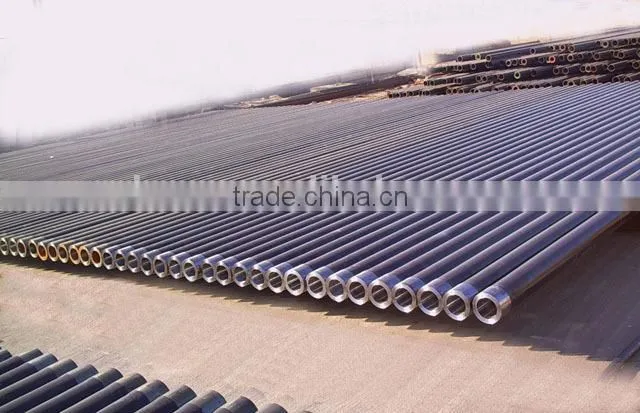

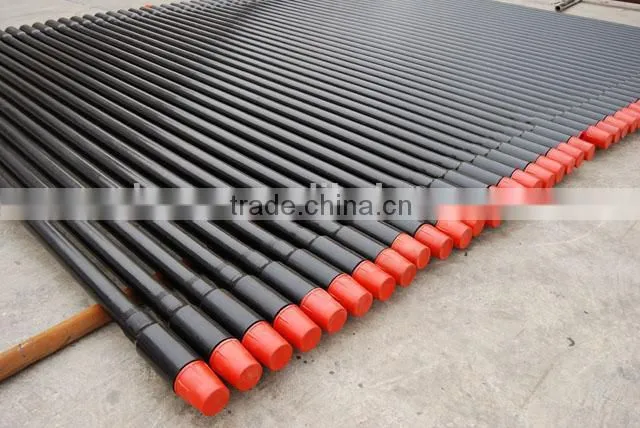

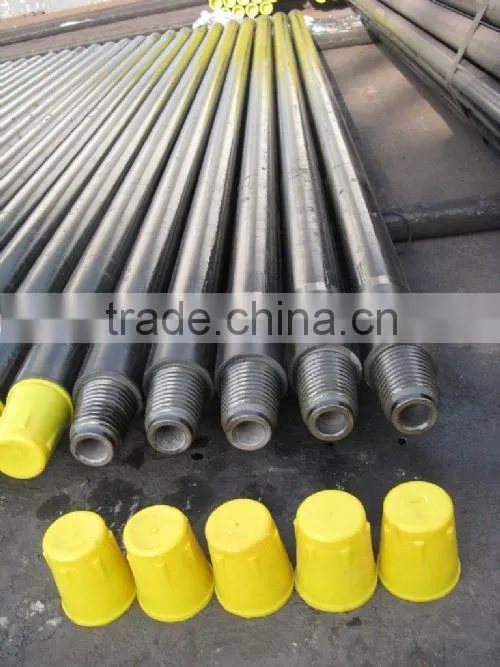

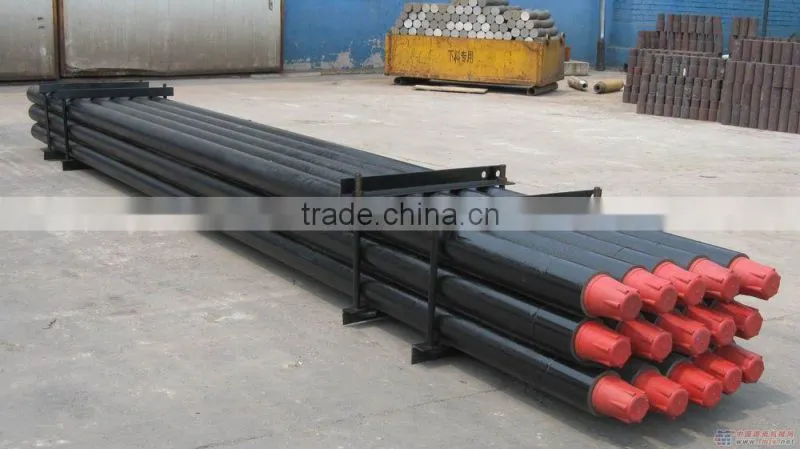

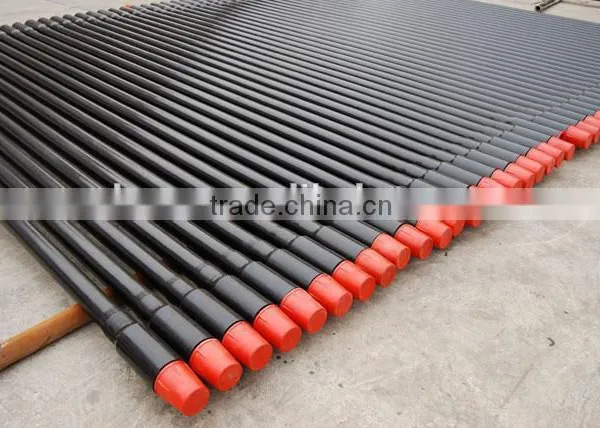

Factory Pictures

API Certificated Drill Pipe Screen price
API Certificated Drill Pipe Screen price

API Certificated Drill Pipe Screen price API Certificated Drill Pipe Screen price
API Certificated Drill Pipe Screen price
