Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Forging API Drilling Roller Reamer

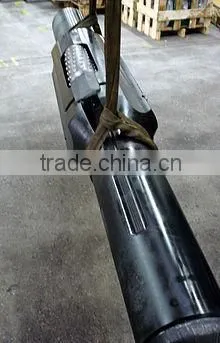

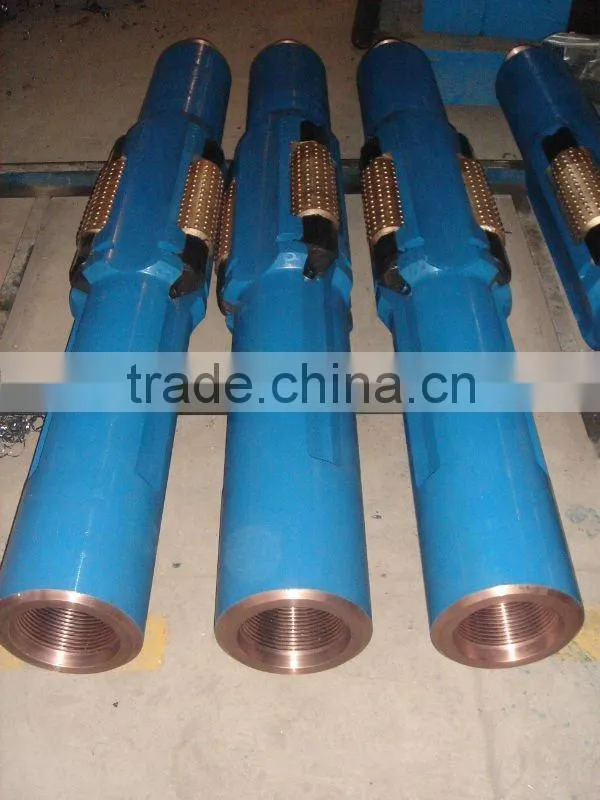

Forging API Drilling Roller Reamer

Name: Forging API Drilling Roller Reamer
Brand: Zhongshi
SKU: 130326419
Availability: InStock

Forging API Drilling Roller Reamer thumbnail-1

Forging API Drilling Roller Reamer photo-1

US$ 100 - 1,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Zhongshi

Model Number:

Contact Supplier Request Quote Chat Now

Puyang Zhongshi Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Zhongshi

Model Number ZS

Type Reamer

Machine Type Drilling Tool

Certification API

Material Carbon Steel

Processing Type Casting

Use Well Drilling

Product Description

Description

Roller reamer, also called drilling reamer, is very useful tool for drilling operation, especially used for the function of stabilization in drilling of the abrasive formation. Zhongshi provides roller reamer suitable for well holes range from 4 5/8” to 36”.

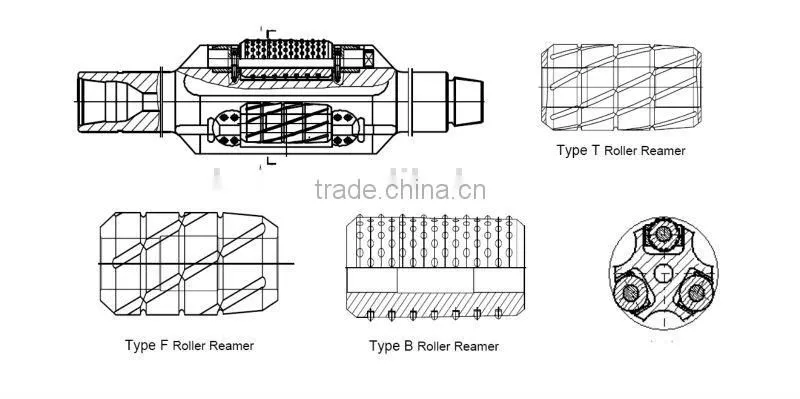

Three types of rollers are available here for reamer body:

Type T: Narrow tooth is machined and surface hardened, which is used for cutting of hole wall, used for soft formation.

Type F: Wide flat tooth is machined and surface hardened, which is used for cutting and crushing of hole wall, used for medium hard formation.

Type B: The roller is cold inserted with tungsten carbide string and used for hard formation.

Specification

Hole Size	Body O.D.	Fishing Neck length	Blade Length	Blade Width	Tong Space	Bore	OAL Length
8	4³/₄	30	15	3	25	2¹/₄	72
8¹/₂	6¹/₂	30	18	3	27	2¹³/₁₆	78
12¹/₄	8	30	18	3¹/₂	28	2¹³/₁₆	83
12¹/₄	9¹/₂	30	18	3¹/₂	28	3	83
14³/₄	8	30	18	3¹/₂	30	2¹³/₁₆	90
14³/₄	9¹/₂	30	18	3¹/₂	30	3	90
16	9¹/₂	30	18	3¹/₂	30	3	92
17¹/₂	8	30	20	3¹/₂	30	2¹³/₁₆	94
17¹/₂	9¹/₂	30	20	3¹/₂	30	3	94
20-26	9¹/₂-11	30	22	4	30	3	110

Packaging & Shipping

wooden cases or as requested
